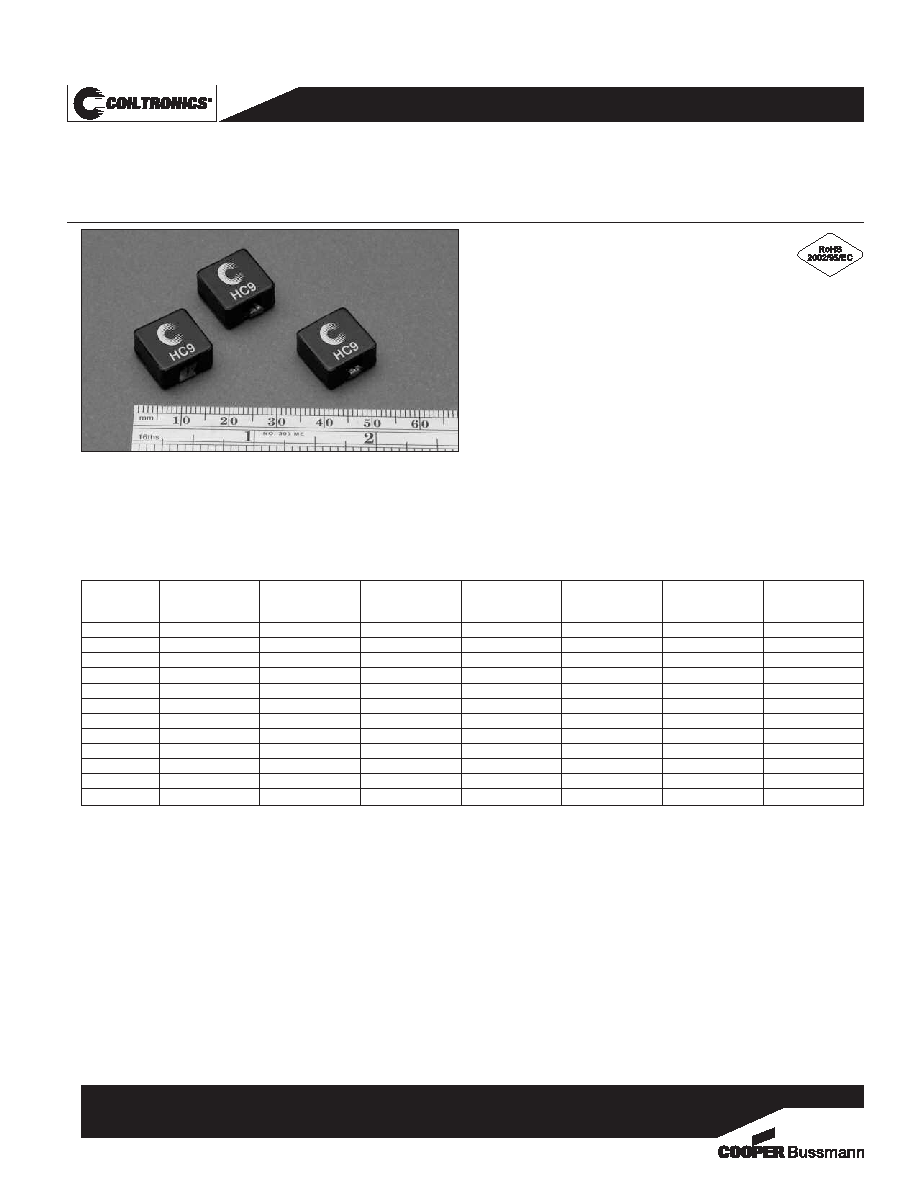

HC9 Series

High Current 9 Power Inductors

1207

BU-SB07346

Page 1 of 3

Data Sheet 4312

Description

• 155°C maximum total operating temperature

• Surface mount inductors designed for higher speed switch

mode applications requiring lower inductance, low voltage and

high current

• Design utilizes high temperature powder iron material

with a non-organic binder to eliminate thermal aging

• Inductance Range from 0.2µH to 47.0µH

• Current Range from 3.65 amps to 95.0 amps

• Frequency Range 1kHz to 500kHz

Applications

• Next generation processors

• High current DC-DC converters

• VRM, multi-phase buck regulator

• PC, workstations, routers, servers

Environmental Data

• Storage temperature range: -40°C to +155°C

• Operating temperature range: -40°C to +155°C

(range is application specific)

• Solder reflow temperature: +260°C max for 10 seconds maximum

Packaging

• Supplied in tape and reel packaging, 450 parts per reel

Part

Rated

Number

Inductance

Nominal

Amps

Amps

Amps

max. @

µSec

µH

+/-15% µH

(Typ.)

20% rolloff

30% rolloff

20°C

(VµS)

HC9-R20-R

0.20

0.218

46.7

65

95

0.50

2.87

HC9-R47-R

0.47

0.544

33.7

40

57

0.88

4.78

HC9-1R0-R

1.0

1.04

23.7

28

41

1.87

6.70

HC9-1R5-R

1.5

1.70

21.0

22

32

2.27

8.46

HC9-2R2-R

2.2

2.53

17.2

18

26

3.37

10.4

HC9-3R3-R

3.3

3.52

14.3

15

22

4.87

12.4

HC9-4R3-R

4.3

4.67

13.0

13.2

19.1

5.90

14.4

HC9-6R8-R

6.8

7.45

10.3

11.4

15.1

9.40

18.1

HC9-100-R

10.0

10.9

8.50

8.6

12.5

14.0

22.0

HC9-220-R

22.0

22.4

6.30

6.0

8.7

25.7

31.5

HC9-330-R

33.0

34.5

4.42

4.8

7.0

48.8

37.3

HC9-470-R

47.0

49.2

3.65

3.9

5.7

72.3

44.8

1) Test Parameters: 100kHz, 1.0Vrms

2) Irms amps for approximately ∆T of 40°C without core loss.

Derating is necessary for AC currents. Pad layout, trace thickness and width, airflow,

and proximity of other heat generating components will affect the temperature rise. It is

recommended that the temperature of the part not exceed 155°C under worst case

conditions verified in the end application.

3) Peak current for approximately 20% rolloff @20°C

4) Peak current for approximately 30% rolloff @20°C

5) Applied Volt-Time product (V-µS) across the inductor. This value represents the applied V-µS at

operating frequency necessary to generate additional core loss which contributes to the 40°C

temperature rise. De-rating of the Irms is required to prevent excessive temperature rise. The

100% VµS rating is equivalent to a ripple current Ip-p of 20% of Isat (30% rolloff option).

Part number definition:

First 3 characters = Product code and size.

Last 3 characters = Inductance in µH. R = decimal point.

If no R is present third character = # of zeros.

-R suffix = RoHS compliant
