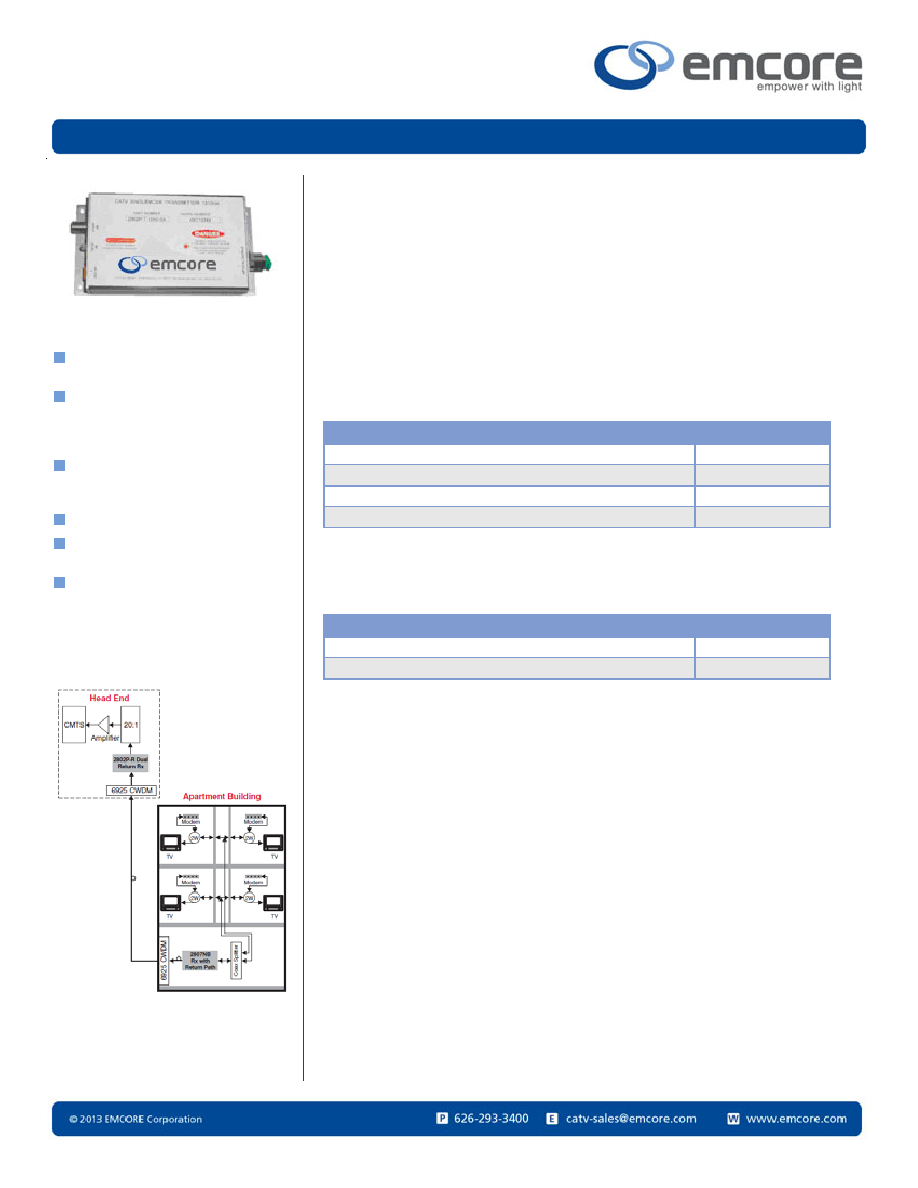

DATASHEET | JULY 2013

FIBER OPTICS

| REV 2013.07

Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.

Features

Able to Transmit Up to 10 CATV

Channels Over One Singlemode Fiber

Supports Transmission of Sub-Band,

Low-Band, FM, Mid-Band, and High-

Band Channels, Adding Flexibility to the

System

Built in RF Input Level Indicator Aids in

Commissioning and Troubleshooting the

Link

Ideal for Use as CATV Return Path Link

Compatible with Standard Television

Industry Voltages and Impedances

Ideal for Small Corporate TV Video

Distribution, Campus Media Retrieval

Systems, Tele-Conferencing, and Much

More

The 2802 PRO 10 Channel CATV VSB/AM Video Link offers a state-of-the-art solution for

high-quality CATV transmission. The 2802 PRO offers exceptional analog bandwidth from

5 to 400 MHz allowing transmission of all sub-band, low-band, FM, mid-band, and high-

band channels. This feature allows the system to deliver custom designed video services.

In conjunction with a VCR, camcorder, or CATV feed, the 2802 PRO can transmit TV

channels and their sound carriers, over a distance of 10 km or more at 1310 nm over one

singlemode fiber. The link is ideal for implementing a CATV return path link. The link

utilizes inputs from standard CATV VSB/AM modulators, processors, and other ancillary

equipment, making the 2802 PRO link an excellent plug-and-play system. LED indicators

and built-in RF and optical power meters allow for quick assessment of the link’s status.

10 Channel Singlemode Transmitter and Receiver Part Numbers

Description

Part Number

Stand-Alone Transmitter, 1310 nm, FC/APC Optical Connector

2802P-T-1310-FA

Stand-Alone Transmitter, 1310 nm, SC/APC Optical Connector

2802P-T-1310-SA

Stand-Alone Receiver, 1310/1500 nm FC/APC Optical Connector

2802P-R-FA

Stand-Alone Receiver, 1310/1550 nm SC/APC Optical Connector

2802P-R-SA

Note: Power Supply Part Number PS095 included.

Accessory Part Numbers

Description

Part Number

Transmitter Stand-Alone Power Supply, +9 Volts DC

PS095

Receiver Stand-Alone Power Supply, +9 Volts DC

PS095

2802 PRO 10 Channel Singlemode

CATV VSB/AM Video Link
