http://www.adlinktech.com/cPCI/

cPCI-6520 Series

Specifications

Processor & System

CPU

μFC-BGA Quad-Core Intel® Core™ i7-3615QE processor,

2.3GHz, 6MB L3 cache, 45W TDP

μFC-BGA Quad-Core Intel® Core™ i7-3612QE processor,

2.1GHz, 6MB L3 cache, 35W TDP

μFC-BGA Dual-Core Intel® Core™ i7-3555LE processor,

2.5GHz, 4MB L3 cache, 25W TDP

μFC-BGA Dual-Core Intel® Core™ i7-3517UE processor,

1.7GHz, 4MB L3 cache, 17W TDP

Passive heatsink

Chipset

Intel® QM77 PCH

Memory

Dual channel DDR3-1333/1600 SDRAM with ECC,

up to 16GB

One channel in SO-CDIMM socket up to 8GB; one channel

soldered onboard up to 8GB (dependent on availability of

memory modules and chips)

BIOS

AMI® EFI BIOS, 64Mbit SPI flash memory

CompactPCI Bus

PCI 32/64-bit, 33/66MHz, 3.3V or 5V universal V(I/O)

Supports operation in system slot as master or in

peripheral slot as stand-alone blade without connectivity to

CompactPCI® bus (Satellite mode)

PICMG Standards

PICMG 2.0 CompactPCI R3.0

PICMG 2.1 Hot Swap R2.0

PICMG 2.9 System Management R1.0

PICMG 2.16 Packet Switch Backplane R1.0

Connectivity

PMC/XMC

One PCI 32/64-bit, 33/66/133MHz PMC site or PCI-Express

x8 XMC site with rear I/O

Ethernet

Three Intel® 82574IT GbE and one Intel® 82579LM PHY

controllers for two 10/100/1000BASE-T ports on front panel

and two 10/100/1000BASE-T ports to J3 for PICMG 2.16

Two additional 10/100/1000BASE-T ports from Intel®

82576EB on RTM (cPCI-R6100 or cPCI-R6110)

Graphics

Integrated in Intel® processor

Two dual mode DisplayPorts on front panel with optional DVI/

VGA/HDMI support by adapter cable

DVI, eDP and VGA routed to rear

Supports three independent displays by 2x DP or 2x VGA on

front panel and one DVI/VGA/eDP in rear

Additional discrete ATI GPU supporting two DVI ports on

RTM cPCI-R6700

USB

Three USB 3.0 ports on front panel

Six USB 2.0 ports routed to rear

PS/2

PS/2 Keyboard Mouse port to rear

Serial Port

Up to three 16C550 compatible serial ports

One RJ-45 RS-232/422/485 port on front panel

Two serial ports routed to rear

Audio

High Definition Audio signals routed to rear

Storage

SBC

One SATA 6 Gb/s direct connector for 2.5” onboard drive

(removable)

Optional CFast socket (shares space with SATA direct

connector)

CompactFlash socket onboard

RTM*

Up to three SATA ports

CF (x1) and SD (x1) sockets

Eight SAS ports supporting hardware RAID via two mini-SAS

x4 connectors (LSISAS1068E)

*Available interfaces dependent on RTM model selected

Operating System

OS

Microsoft Windows Server 2008, XP, 7

Red Hat Enterprise Linux 6.2

Fedora 16

Wind River VxWorks 6.9

(Please contact ADLINK for other OS support)

Miscellaneous

LED

Power, WDT, Hard Disk, Hot Swap and Port 80

Battery

Coin cell lithium battery onboard for RTC CMOS RAM

TPM

Atmel AT97SC3204 (optional, support upon request)

Watchdog Timer

System Reset and NMI, with programmable interval, 1-65535

seconds or minutes

Hardware Monitor

Monitors CPU temperature, system temperature, Vcore and

DC voltages

Mechanical & Environmental

Form Factor

6U 4HP (single slot) CompactPCI

233.33mm x 160mm (LxW)

Equipped with J1, J2, J3, J5 connectors

Operating Temperature 0°C to +60°C standard

-20°C to +70°C extended temperature (cPCI-ET6520)

Storage Temperature

-40°C to 85°C

RH Humidity

95% non-condensing

Shock

15G peak-to-peak, 11ms duration, non-operating

Vibration

2 Grms random vibration, 5-500Hz, each axis, operating

Power Consumption

3.23A @3.3V, 9.68A @5V, total 59W for Core i7-3612QE

3.37A @3.3V, 12.12A @5V, total 71.7W for Core i7-3615QE

Weight

Net weight 791g with heatsink

EMI/EMC

EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3

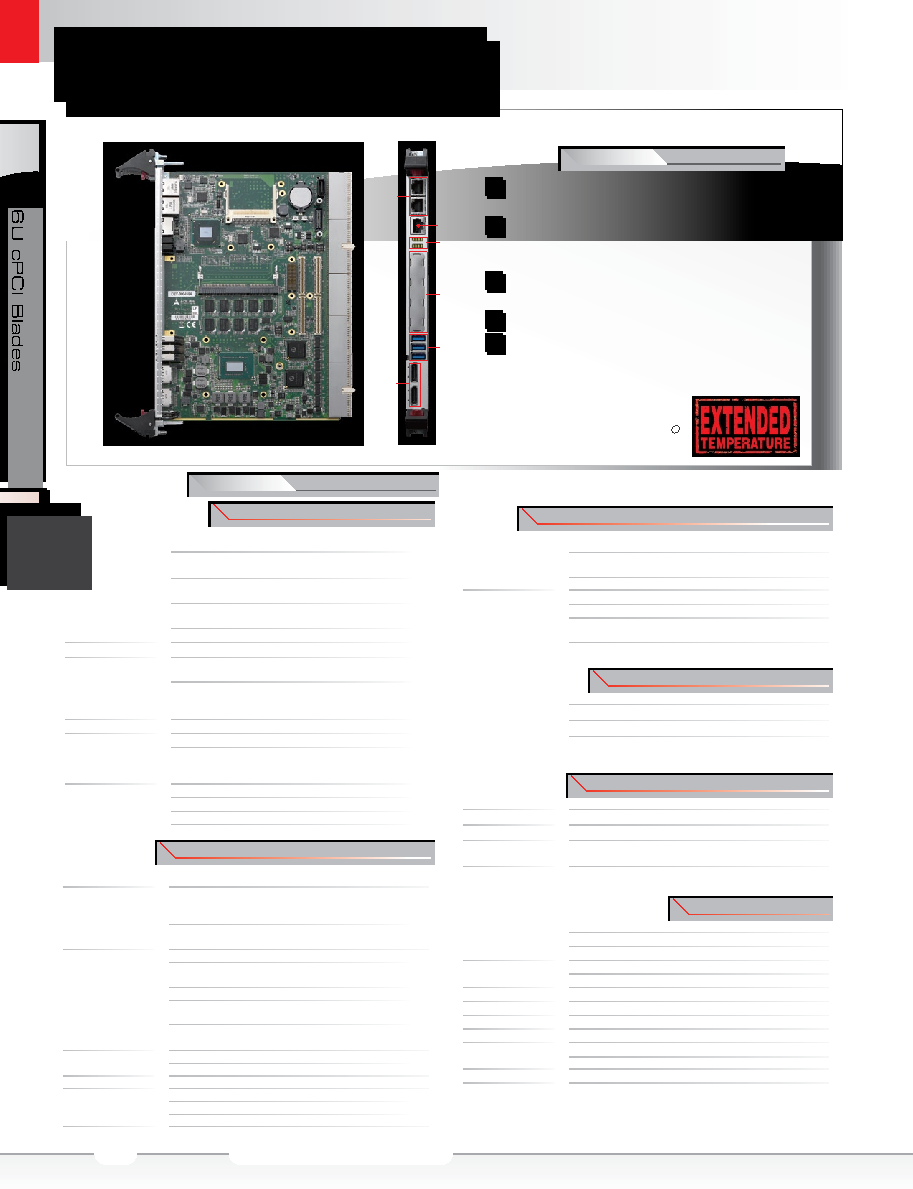

6U CompactPCI 3rd Gen Intel® Core™ i7

Processor Blade with ECC SDRAM

Features

Low power 22nm the 3rd generation

Intel® Core™ i7 processor

Dual channel DDR3 ECC memory, one

channel soldered and one channel

SO-CDIMM

Supports three independent displays:

(2xDP/VGA+VGA/DVI)

USB 3.0 and PCI-Express Gen3 support

Remote management and optional TPM

support

LAN

PMC/

XMC

User

LED

USB3.0

DP

COM

CompactPCI R

2

2-7
