http://www.adlinktech.com/cPCI/

Specifications

Processor System

CPU

μFC-BGA Intel® Atom™ processor D525 1.8GHz, 1MB L2

cache, 13W TDP

Passive heatsink

Chipset

Intel® ICH8M I/O Controller Hub

Memory

Single channel unbuffered DDR3-800 SDRAM

Two SO-DIMM sockets, up to 4GB

BIOS

AMIBIOS8® 64Mbit SPI flash memory

CompactPCI Bus

PCI 32-bit/33MHz, 3.3V or 5V universal V(I/O)

Supports operation in system slot only

PICMG Standards

PICMG 2.0 CompactPCI R3.0

PICMG 2.1 Hot Swap R2.0

PICMG 2.16 Packet Switch Backplane R1.0

Connectivity

PMC

One PCI-X 64-bit/133MHz PMC site, shares same space as

2.5” SATA drive

Ethernet

Three PCI-Express Intel® 82583V Gigabit Ethernet controllers

for three 10/100/1000BASE-T ports

Three RJ-45 ports on front panel; two are switchable to J3

for PICMG 2.16

Graphics

Integrated in Intel® Atom processor

One VGA pin header on board, switchable to RTM; front

panel VGA port available in 8HP version

Analog monitor support up to QXGA 2048x1536

pixels@60Hz, 32-bit

USB

Up to four USB 2.0 front panel ports

Six USB ports routed to rear

PS/2

Front panel PS/2 Keyboard/Mouse port (8HP version only)

One KB/MS routed to RTM

Serial Port

One RS-232/422/485 port

One addition RS-232 only for 8HP version

Additional two serial ports routed to rear

Audio

High Definition Audio signals routed to rear

Storage

SBC

One SATA direct connector for 2.5” onboard HDD

One SATA connector (7-pin) on board and one SATA routed

to rear

Onboard CompactFlash socket

RTM*

One SATA port

*Available interfaces dependent on RTM model selected

Operating System

OS

Microsoft Windows® XP

Microsoft Windows® 7 32/64-bit

Red Hat Enterprise Linux 6

Wind River VxWorks 6.8

(Please contact ADLINK for other OS support)

Miscellaneous

LED

Power, WDT, Hard Disk, General Purpose

Battery

Coin cell lithium battery onboard for RTC

CMOS RAM for BIOS configuration

Watchdog Timer

System Reset and NMI, with programmable interval, 1-65535

seconds or minutes

Hardware Monitor

Monitors CPU temperature, system temperature, Vcore and

DC voltages

Mechanical & Environmental

Form Factor

6U 4HP/8HP CompactPCI

233.33mm x 160mm (LxW)

cPCI-6615: equipped with CompactPCI connectors J1, J2,

J3, J5

cPCI-6615D: equipped with CompactPCI connectors J1, J2,

J3, J5

Operating Temperature 0 to 60 °C

-20 to 85 °C extended temperature (cPCI-ET6615 model)

Storage Temperature

-40 to 85 °C

RH Humidity

95% non-condensing

Shock

15G peak-to-peak, 11ms duration, non-operating

Vibration

2 Grms random vibration between 5-500Hz in 3 axis

Power Consumption

Atom™ D525 1.8GHz, 4GB SODIMM under Windows® XP

with 100% CPU loading

Current (A)

Power (W)

5V

3.6

18.34

Total

18.34

Weight

Net weight 366g with heatsink

EMI/EMC

EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3

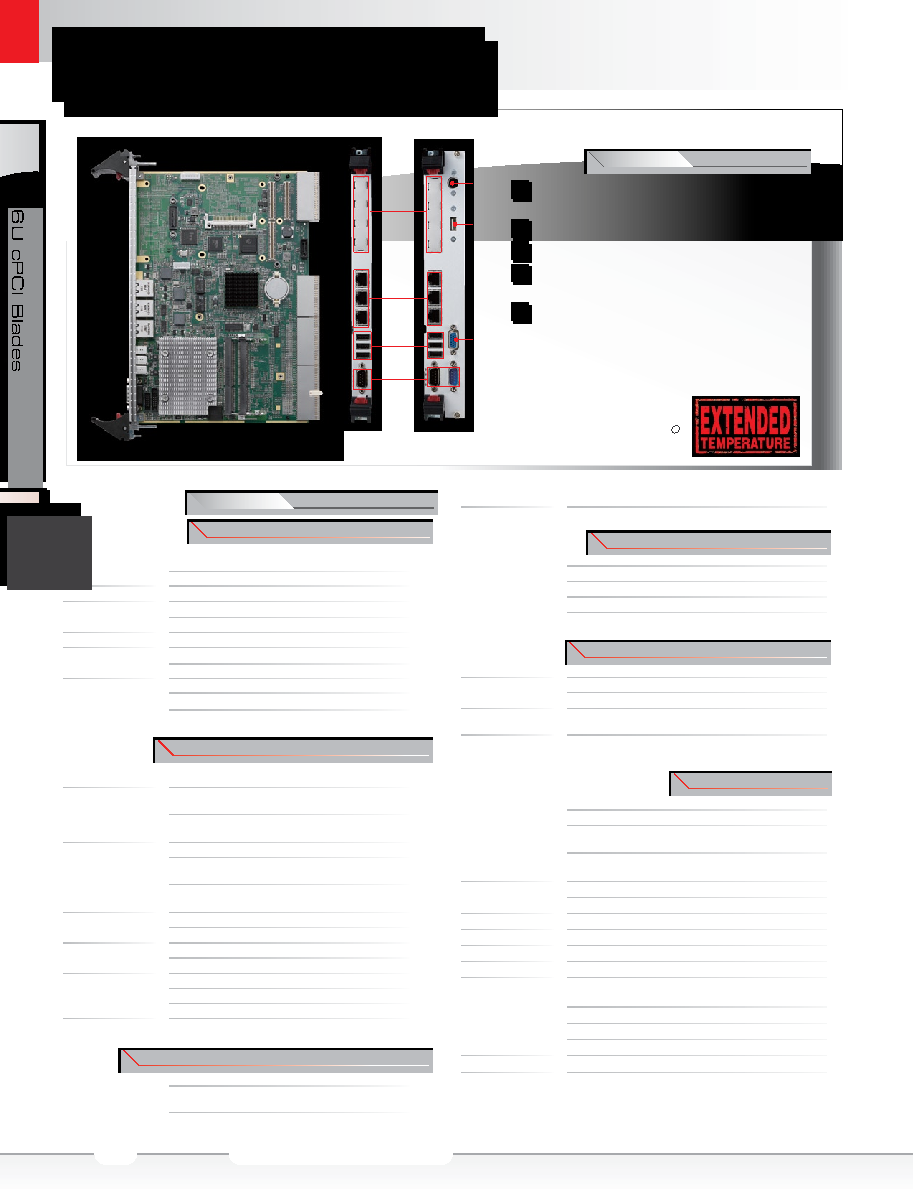

6U CompactPCI Intel® Atom™ Processor D525

Host Blade

cPCI-6615 Series

Features

Dual-core Intel® Atom™ processor D525

1.8GHz

Up to 4GB DDR3-800 via SO-DIMM

Up to three Gigabit Ethernet egress ports

Up to two SATA interfaces and one

CompactFlash socket onboard

PCI-X 64-bit/133MHz PMC slot

cPCI-6615

cPCI-6615D

USB

KB/MS

VGA

PMC

LAN

USB

COM

CompactPCI R

2

2-13
