http://www.adlinktech.com/cPCI/

Specifications

Processor & System

CPU

FC-LGA771 Quad-Core Intel® Xeon® Processor 2.13GHz

(L5408), 12MB L2 cache, 1066MHz FSB

FC-LGA771 Dual-Core Intel® Xeon® Processor LV 2.13GHz

(5138), 4MB L2 cache, 1066MHz FSB

Passive heatsink

Single processor on 4HP cPCI-6920

Dual processors on 8HP cPCI-6920D

Chipset

Intel® 5100 MCH and ICH9R I/O Controller Hub

RAM

Dual channel DDR2-667 REG/ECC, up to 16GB

4HP: Two 200-pin SO-RDIMM sockets

8HP: Four 200-pin SO-RDIMM sockets

BIOS

AMIBIOS®8 16Mbit SPI flash memory

CompactPCI Bus

64bit/66MHz CompactPCI® Bus, V(I/O) 3.3V only

Supports operation in system slot as system master or in

peripheral slot as stand-alone server blade without

connectivity to CompactPCI® bus

PICMG Standards

PICMG® 2.0 CompactPCI® R3.0

PICMG® 2.1 Hot Swap R2.0

PICMG® 2.9 System Management v.1.5 R1.0

PICMG® 2.16 Packet Switch Backplane R1.0

Connectivity

PMC/XMC

PCI 64bit/66MHz PMC or PCI-Express x8 XMC site, 3.3V PCI

signaling (8HP version only)

Ethernet

Two PCI-Express Intel® 82571EB dual port GbE controllers

Two 10/100/1000BASE-T front panel ports

Two 10/100/1000BAST-T PICMG® 2.16 ports

Two additional 10/100/1000BASE-T ports from Intel®

82576EB on RTM cPCI-R6100

Graphics

AMD ATI ES1000 on PCI 32bit/33MHz bus

DDR2-533 64MB graphics memory

Analog RGB up to 32bit 1600x1200 @60Hz refresh rate

DB-15 VGA ports on front and rear panels mirror display

USB

Up to four USB 2.0 ports on front panel

Six USB 2.0 ports routed to rear

PS/2

One PS/2 Keyboard/Mouse Combo Port on front panel or

rear panel (8HP version only)

Serial Port

One DB-9 16C550 compatible RS-232 port on front panel

(8HP version only)

Two serial ports routed to rear

Storage

SBC

Built-in 4GB USB NAND flash onboard

Removable CompactFlash socket onboard

Optional SATA port for 2.5” HDD direct mounting

RTM

Up to 3 SATA ports

CF (x1) and SD (x1) sockets

One internal and one external 68-pin SCSI connector by

LSI53C1020 SCSI Ultra320 controller (RAID 1)

Onboard Floppy pin header

Eight SAS ports by LSISAS1068E with hardware RAID by two

mini SAS x4 connectors

*Available interfaces dependent on RTM model selected

Operating System

OS

Microsoft Windows® XP Professional

Microsoft Windows® Server 2003

Fedora™ 8

VxWorks 6.6

Miscellaneous

LED

Power, WDT, Hot Swap, Hard Disk

Battery

Coin cell lithium battery onboard for RTC CMOS RAM

WatchDog Timer

System Reset and NMI, with Programmable Interval,

1-255 seconds or minutes

Hardware Monitor

Monitors CPU & system temperatures, Vcore and DC voltages

Mechanical & Environmental

Form Factor

6U 4HP/ 8HP CompactPCI®, 233.33mm x 160mm (LxW)

Operating Temp.

0°C to +55°C with forced air flow

Storage Temp.

-40°C to +85°C

Rel. Humidity

90% @60°C (non-condensing)

Shock

15 G peak to peak, 11ms duration, non-operating

Vibration

1.88 Grms, 5-500 Hz, each axis, operating

IEC68-2-64 standard

Power Consumption

Single Quad-Core L5408, 4x 2GB SO-RDIMMs, 60GB SATA

HDD onboard under Windows XP with 100% CPU loading

Current (A) Power (W)

5V

13.9

69.5

3.3V

11.9

39.3

Total

108.8

Weight

Net weight 1401.5g with heatsink (cPCI-6920D/D408/M8G)

Safety & EMI

Certifications

CE/FCC Class A

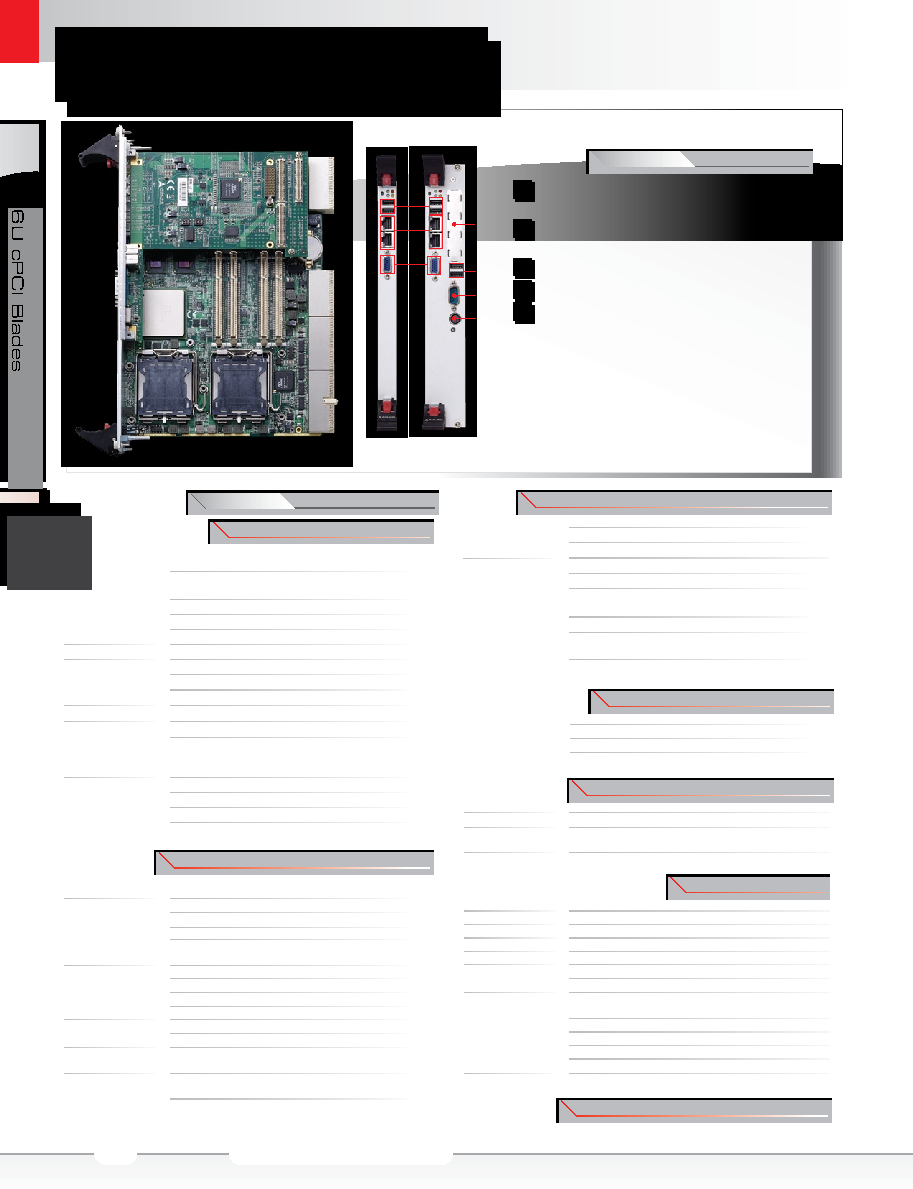

6U CompactPCI® Dual Quad-Core Intel® Xeon®

Processor Blade

cPCI-6920 Series

Features

2x Quad-Core/Dual-Core Intel® Xeon® LV

Processors

Four SO-RDIMMs for up to 16GB REG/

ECC memory

Four PCI-Express Gigabit Ethernet ports

64bit/66MHz PMC/PCI-Express x8 XMC

Onboard SATA HDD, CompactFlash and

USB NAND flash storage

cPCI-6920

cPCI-6920D

KB/MS

COM

USB

PMC/

XMC

VGA

LAN

USB
