http://www.adlinktech.com/cPCI/

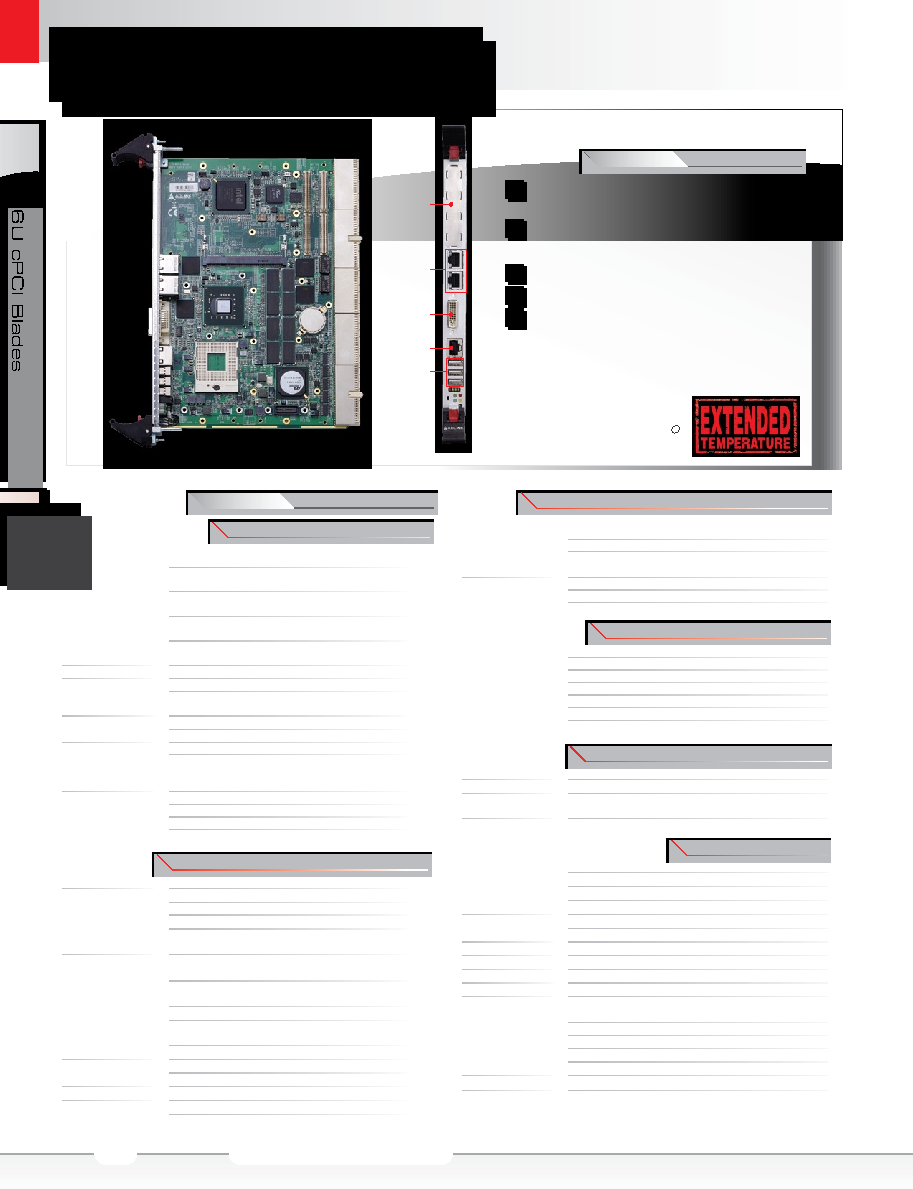

cPCI-6880 Series 6UCompactPCI®45nmIntel®Core™2Duo

Processor Blade

Features

45nm Intel® Core™2 Duo 2.53GHz,

6MB L2 cache

Up to 8GB DDR2-800 memory

(soldered + SO-DIMM)

DVI + VGA display interfaces

Four PCI-Express GbE ports

Supports system/peripheral operation

PMC

LAN

DVI-I

COM

USB

cPCI-6880

Specifications

Processor & System

CPU

μFC-PGA Intel® CoreTM2 Duo Processor SV 2.53GHz (T9400),

6MB L2, FSB 1066MHz, TDP 35W

uFC-PGA Intel® Core™2 Duo Processor LV 2.26GHz (P8400),

3MB L2, FSB 1066MHz, TDP 25W

μFC-PGA Intel® CoreTM2 Duo Processor 2.2GHz (T7500),

4MB L2, FSB 800MHz, TDP 35W

μFC-PGA Intel® singal-core Celeron® M 2.0GHz (575),

1MB L2, FSB 667MHz, TDP 31W

uFC-PGA Intel® dual-core Celeron® 1.9GHz (T3100),

1MB L2, FSB 800MHz, TDP 35W

Chipset

Intel® GM45 with ICH9M

Memory

Dual channel DDR2-667/800 SDRAM, up to 8GB

One channel for soldered memory, up to 4GB; one channel for

SO-DIMM socket

BIOS

AMIBIOS®8 dual 16Mbit SPI Flash memory

Supports failover

CompactPCI Bus

PCI 64bit/ 66MHz, 3.3V or 5V universal V (I/O)

Supports operation in system slot and peripheral slot

(cPCI-6880P cannot be installed in a peripheral slot with CT

bus backplane)

PICMG Standards

PICMG® 2.0 CompactPCI R3.0

PICMG® 2.1 Hot Swap R2.0

PICMG® 2.9 System Management v1.5 R1.0

PICMG® 2.16 Packet Switching Backplane R1.0

Connectivity

PMC

One PCI 64bit/66MHz PMC site

Ethernet

Four PCI-Express Intel® 82573L Gigabit Ethernet controllers

Two 10/100/1000BASE-T front panel ports

Two 10/100/1000BASE-T PICMG® 2.16 ports

Two additional 10/100/1000BASE-T ports from Intel®

82576EB on RTM cPCI-R6100

Graphics

Integrated in Intel® GM45, powered by Gen-5.0 Graphics

Architecture

One DVI-I (digital+analog) port on front panel (Contact

ADLINK if need DVI support on RTM)

Analog VGA signal routed to RTM (mirror of VGA)

Additional discrete ATI/AMD E4690 GPU supporting two

DVI-I ports on RTM cPCI-R6700

Analog monitor supports up to QXGA

USB

Three USB 2.0 front panel ports

Six USB ports routed to RTM

PS/2

PS/2 Keyboard Mouse port routed to RTM

Serial Port

Max. three 16C550 compatible serial ports

One RJ45 port on front panel, two serial ports routed to RTM

Storage

SBC

Built in 4GB USB NAND flash onboard

(Standard temperature range support only)

One removable SATA direct connector for 2.5” onboard HDD

Optional CF socket to replace SATA direct connector

(Standard temperature range support only)

RTM*

Up to 3 SATA ports

CF (x1) and SD (x1) sockets

*Available interfaces dependent on RTM model selected

Operating System

OS

Microsoft Windows® XP Professional

Microsoft Windows® XP x64 Edition

Microsoft Windows® Vista x64 Edition

Microsoft Windows® 7

Red Hat Enterprise Linux 5.1

Wind River VxWorks 6.8, 6.6, 5.5.1

(Please contact ADLINK for other OS support)

Miscellaneous

LED

Power, WDT, Hot Swap, Hard Disk

Battery

Coin cell lithium battery onboard for RTC CMOS RAM

Watchdog Timer

System Reset and NMI, with Programmable Interval,

1-65535 seconds or minutes

Hardware Monitor

Monitors CPU & system temperatures, Vcore and DC voltages

Mechanical & Environmental

Form Factor

6U 4HP CompactPCI®

233.33mm x 160mm (LxW)

cPCI-6880: equipped with CompactPCI connectors J1,J2,J3,J5

cPCI-6880P: equipped with CompactPCI connectors J1,J2,J3,J4,J5

Operating Temp.

0°C to +60°C standard

-20°C to +70°C extended temperature (cPCI-ET6880)

Storage Temp.

-40°C to +85°C

Rel. Humidity

95% @60°C, non-condensing

Shock

15G peak-to-peak, 11ms duration, non-operating

Vibration

1.88 Grms, 5-500Hz, each axis, operating (with CF card)

Power Consumption

Single CoreTM2 Duo T9400, 4GB DDR2-800, 100GB SATA

HDD onboard under Windows® XP with 100% CPU loading

Current (A) Power (W)

5V

8.46

42.3

3.3V

2.20

7.26

Total

49.56

Weight

Net weight 858g with heatsink

Certifications

CE, FCC

CompactPCI R

2

2-17
