Specifications

Processor & System

CPU

μFC-BGA Intel® Core™ i7-620LE Processor 2.0GHz,

4 MB L2, TDP 25W

μFC-BGA Intel® Core™ i7-620UE Processor 1.06GHz,

4 MB L2, TDP 18W

Supports Intel® Hyper-Threading and Turbo Boost Technology

Chipset

Intel® QM57 PCH

Memory

Dual Channel DDR3-800/1066 MHz with ECC soldered

onboard, maximum capacity 8GB

BIOS

AMI® EFI BIOS, 64Mbit SPI flash memory

CompactPCI Bus

PCI 64-bit/66MHz, 3.3V or 5V universal V(I/O)

Supports operation in system and peripheral slots with

CompactPCI® bus communication (Universal mode)

PICMG Standards

PICMG® 2.0 CompactPCI® R3.0

PICMG® 2.1 Hot Swap R2.0

PICMG® 2.9 System Management R1.0

PICMG® 2.16 Packet Switching Backplane R1.0

Connectivity

PMC/XMC

Two PCI 64bit/133MHz PMC sites with rear I/O (PIM)

One PCI-Express x8 XMC site shared with inner PMC site

Ethernet

Two PCI-Express Intel® 82574L Gigabit Ethernet controllers

Two 10/100/1000BASE-T PICMG 2.16 ports

Graphics

Integrated in Intel® Core™ i7 Processor

DVI and RGB to rear

Additional discrete ATI/AMD E4690 GPU supporting two

DVI-I ports on RTM cPCI-R6700

Up to QXGA analog signal

Rear I/O Signals

2x GbE, 2x RS-232, 3x SATA, 6x USB, PCI Express x4, High

Def. Audio, 5x GPIO, TMDS, RGB, LVDS, 2xPIM, KB/MS

Storage

RTM

Available interfaces dependent on RTM model selected

Operating System

OS

Microsoft Windows® XP Professional SP3

Microsoft Windows® 7

Microsoft® Windows® Vista Enterprise

Fedora™ 12

Wind River VxWorks 6.8, 6.6 (w/o SMP)

(Please contact ADLINK for other OS support)

Miscellaneous

LED

Power (green), WDT (amber), Hot Swap (blue), Hard Disk (red)

Battery

Gold Capacitor onboard for RTC CMOS RAM

Watchdog Timer

System Reset and NMI, with programmable interval, 1-65535

seconds or minutes

Hardware Monitor

Monitors CPU temperature, system temperature, Vcore and

DC voltages

Mechanical & Environmental

Form Factor

6U 4HP CompactPCI®

Operating Temperature -40°C to +85°C

Storage Temperature

-40°C to +85°C

Rel. Humidity

95% non-condensing

Shock

40G peak-to-peak, 11ms duration, non-operating

Vibration

20 Grms random vibration, 5-500Hz, each axis, operating

Power Consumption

Core™ i7-620LE 2.0 GHz, soldered 2GB DDR3-1067 under

Windows® XP with 100% CPU loading

Current (A)

Power (W)

5V

3.57

17.83

3.3V

5.83

19.25

Total

37.08

Weight

TBD

Certifications

CE/ FCC

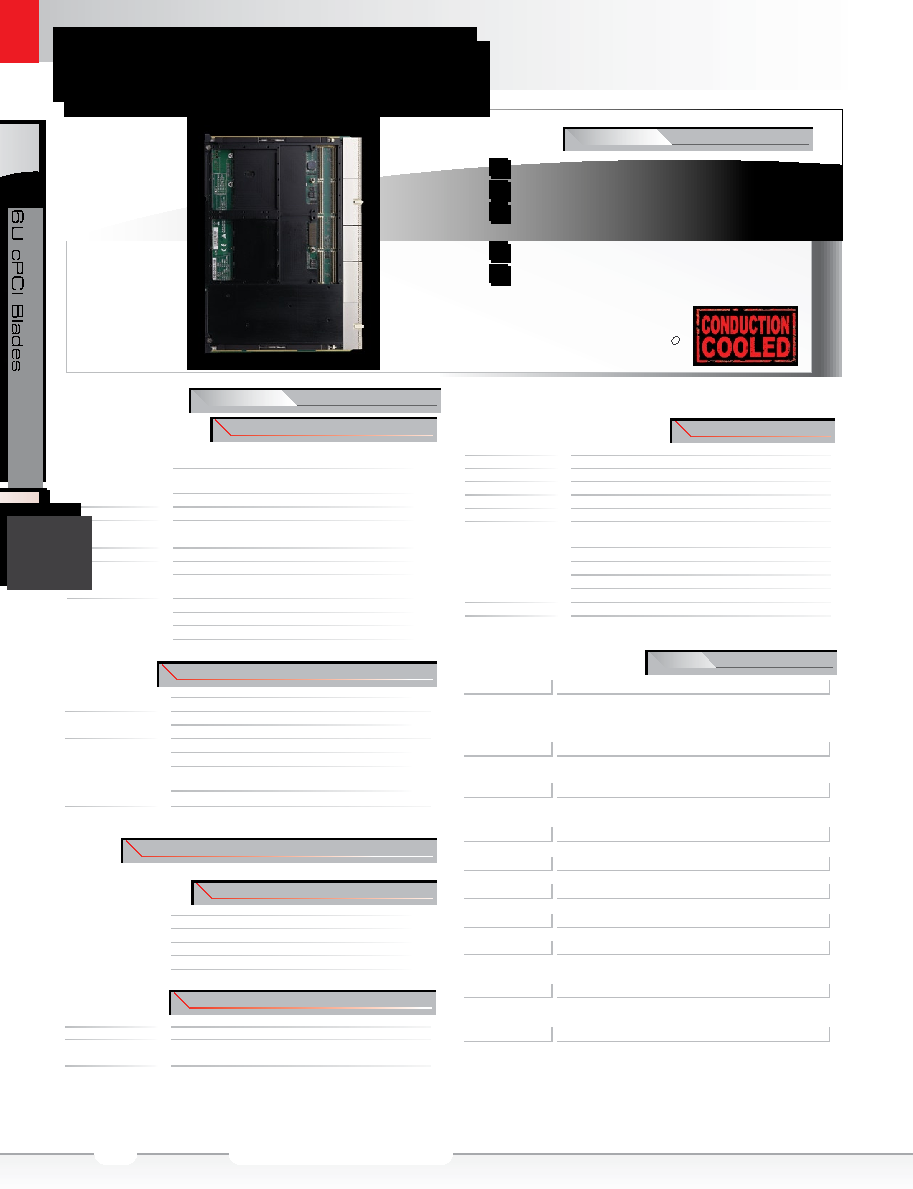

Rugged Conduction Cooled 6U CompactPCI®

Intel® Core™ i7 Universal Blade with two PMC sites

CT-61 Series

Ordering Information

Model Number Description/Configuration

Processor Blades

CT-61/620L/M4G

Conduction Cooled 6U CompactPCI® blade with Core™ i7

620LE 2.0GHz and 4GB DDR3-1066 ECC soldered onboard

memory, dual PMC sites

CT-61/620U/M2G

Conduction Cooled 6U CompactPCI® blade with Core™ i7

620UE 1.06GHz and 2GB DDR3-800 ECC soldered onboard

memory, dual PMC sites

Rear Transition Modules

cPCI-R6002

4HP Rear I/O module with GbEx2, COMx2, USBx3, SATAx2,

DVI-I

cPCI-R6100

4HP Rear I/O module with GbEx4, COM, USBx4, SATAx2, DVI,

VGA, PS/2, CF, SD socket

cPCI-R6110

4HP Rear I/O module with GbE x2, USB x4,

SATA x3, VGA, PS/2, CF, SD socket

cPCI-R6200

8HP Rear I/O module with GbE x2, USB x6, DVI-I, SATA x3,

Mic-in, Line-out, PS/2 KB/MS, SAS x8

cPCI-R6210

4HP Rear I/O module with USB x2, DVI-I, PIM x2, COM x1,

SATA x2

cPCI-R6700

4HP Rear I/O module with discrete GPU ATI/AMD E4690,

DVI-I x2, GbE x2, USB x3, COM x2, KB/MS hearder, SATA x3,

audio header

Mezzanines

DB-CF-SA

CompactFlash socket adapter card (for cPCI-R6110 and

cPCI-R6200)

Contact us for different CPU, memory combinations.

See 6U RTM selection guide for more options.

Features

32nm Intel® Core™ i7 processors with ECC

Up to 8GB DDR3-1066 ECC soldered memory

Two 64-bit/133MHz PMC sites with

rear I/O

One PCI-Express x8 XMC site

PICMG 2.16 compliant

CompactPCI R

2-19

2
