AD8601/AD8602/AD8604
Rev. G | Page 12 of 24
208
182
156
130
104
78
52
26
0
0
0.5
1.0
1.5
2.0
2.5
FREQUENCY (kHz)
VS = 5V
TA = 25°C

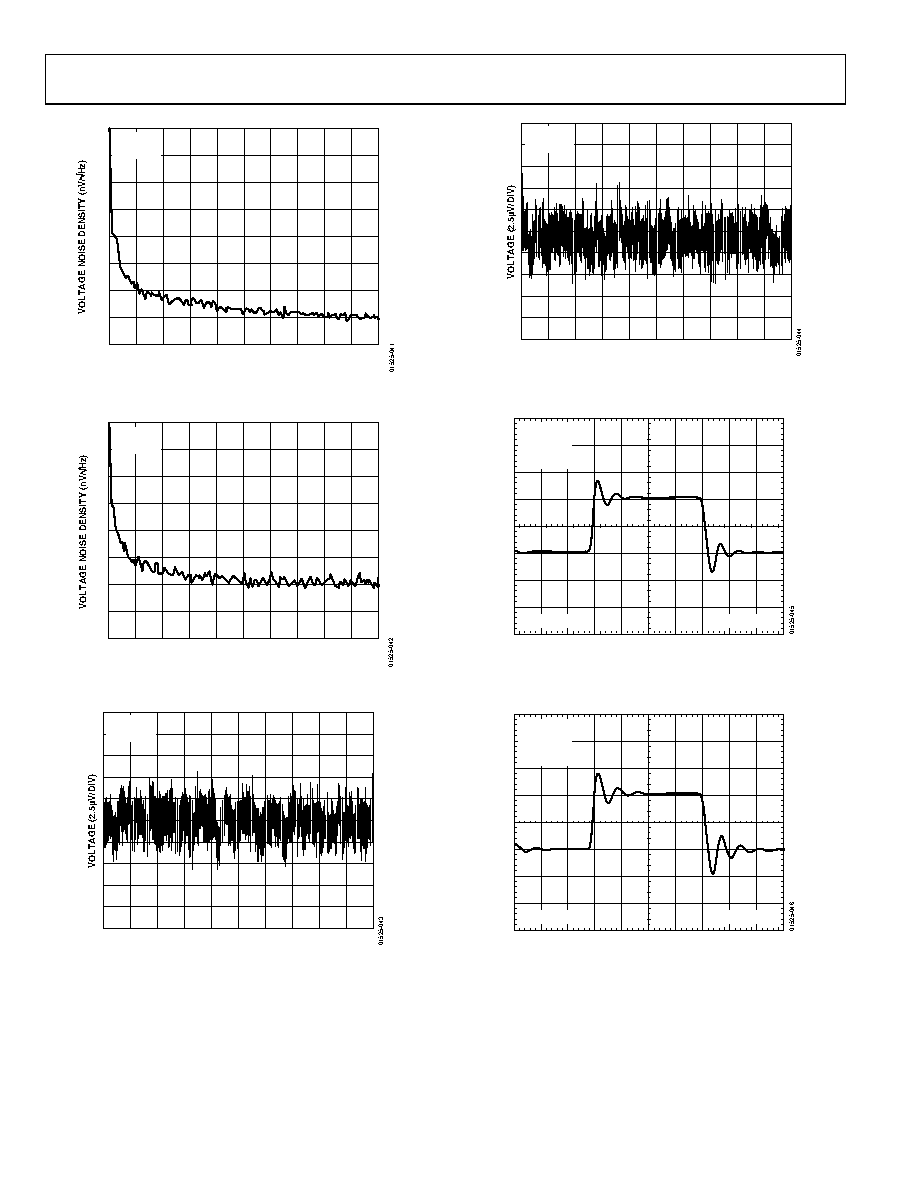

Figure 41. Voltage Noise Density vs. Frequency
64
56
48
40
32
24
16
8
0
0
5
10
15
20
25
FREQUENCY (kHz)
VS = 5V
TA = 25°C
Figure 42. Voltage Noise Density vs. Frequency
TIME (1s/DIV)
VS = 2.7V
TA = 25°C
Figure 43. 0.1 Hz to 10 Hz Input Voltage Noise
TIME (1s/DIV)
VS = 5V
TA = 25°C
Figure 44. 0.1 Hz to 10 Hz Input Voltage Noise
VS = 5V
RL = 10kΩ
CL = 200pF
TA = 25°C
50mV/DIV
200ns/DIV
Figure 45. Small Signal Transient Response
VS = 2.7V
RL = 10kΩ
CL = 200pF
TA = 25°C
50mV/DIV
200ns/DIV
Figure 46. Small Signal Transient Response
