A T C H V R S E R I E S R E S I S T I V E P R O D U C T S

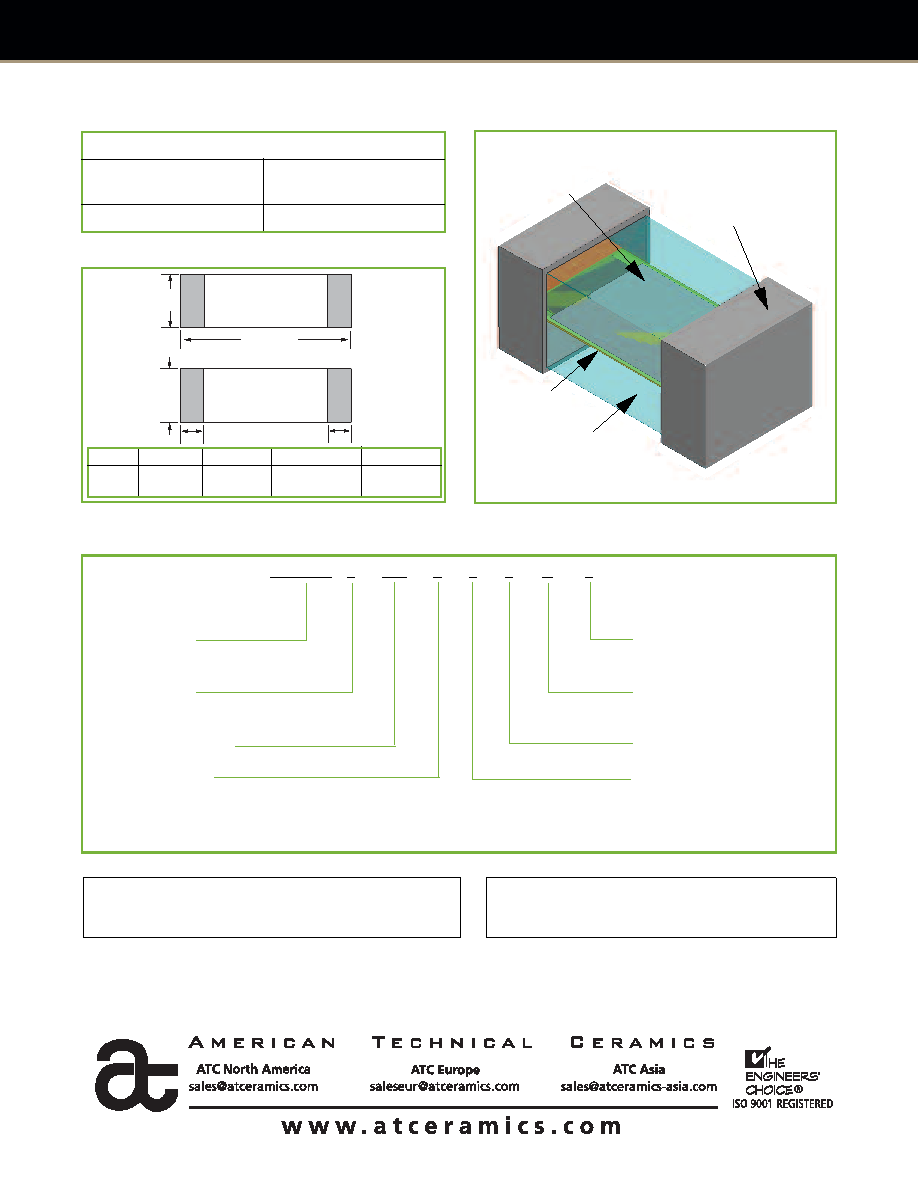

Mechanical Dimensions

For additional information and catalogs contact your ATC

representative or call direct at +1-631-622-4700.

Consult factory for additional performance data.

ATC accepts orders for our parts using designations with or without the “ATC” prefix. Both

methods of defining the part number are equivalent, i.e., part numbers referenced with the

“ATC” prefix are interchangeable to parts referenced without the “ATC” prefix. Customers are

free to use either in specifying or procuring parts from American Technical Ceramics.

Sales of ATC products are subject to the terms and conditions contained in American Technical Ceramics Corp. Terms and Conditions of Sale (ATC document #001-992 Rev. A 10/03). Copies of these

terms and conditions will be provided upon request. They may also be viewed on ATC's website at www.atceramics.com/productfinder/default.asp. Click on the link for Terms and Conditions of Sale.

ATC has made every effort to have this information as accurate as possible. However, no responsibility is assumed by ATC for its use, nor for any infringements of rights of third parties which may

result from its use. ATC reserves the right to revise the content or modify its product line without prior notice.

© 2012 American Technical Ceramics Corp. All Rights Reserved.

ATC # 001-1110; Rev A, 5/12

ATC Part Number Code

Size (EIA)

Length (L)

Width (W)

Thickness (T)

Terminal (t)

0402

.039 ±.004

(1.00 ±0.10)

.020 ±.004

(0.50 ±0.10)

.020 ±.004

(0.50 ±0.10)

.010 ±.006

(0.25 ±0.15)

Resistor Material (SiCr): Properties

Sheet Resistance

(Ohms per Square)

TCR ppm/°C

300 to 1300

±50, ±100

Resistor Material Properties

ATC HVR

L

220

4

F

T

D

T

Series

Packaging: T = Tape & Reel

Temperature Coefficient

Case Size

of Resistance (TCR - ppm/°C)

D = ±50, E = ±100

Resistance Value (

Ω

)

3 significant digits

Termination: T = NiSn Plated

R = decimal point

Multiplier

Tolerance

F = 1%, J = 5%

inches (mm)

The above part number refers to a HVR Series (case size L), 2.2 M-Ohms, F tolerance (1%), NiSn Plated, with a TCR of ±50 ppm/ºC,

with Tape and Reel Packaging.

COVER GLASS

FLEX TERMINATION (Ag EPOXY)

PLATED WITH Ni / Sn

EPOXY

GLASS SUBSTRATE

W

L

T

t

t
