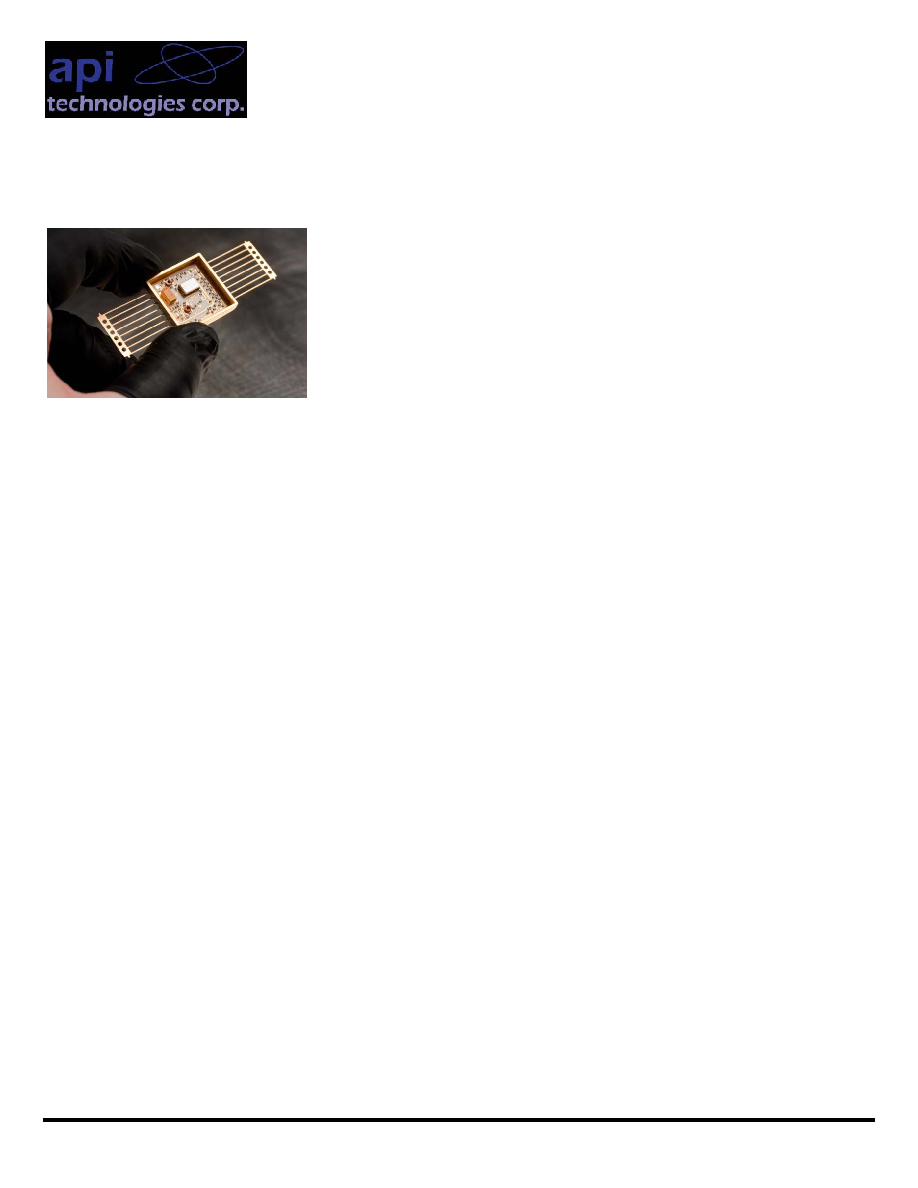

Features

12/12/2013

1

Description

The API725 Series is a high performance line of SAW oscillators providing superior communication distances for

frequencies of 350 MHz to 4,000 MHz and phase lock loop for heritage applications. The radiation tolerant voltage

controlled SAW oscillators (VCSO) are designed for space, satellite communications and aerospace systems.

The API725 Series is a high performance line of SAW oscillators providing superior performance at operating

frequencies of 350 MHz to 4,000 MHz. The VCSOs deliver low phase noise performance (-109 dBc/Hz at 1 kHz) and

low vibration sensitivity (2 x 10-9 per g). API’s space-qualified VCSOs are standard products that can be modified to

customer requirements for output frequency, frequency range and control voltage sensitivity.

API’s VCSOs meet exceptional radiation tolerance at testing levels with radiation exposure to 200kRad total dosage.

The VCSOs are constructed in hermetically sealed Kovar packages using ruggedized hybrid construction to provide

high-reliability and outstanding performance over a wide temperature range (-55°C to +100°C). This series includes

models which have internal frequency multiplication of 2 or 4 to provide output frequencies in the 700 MHz to 4,000

MHz range.

API Technologies | Space-Qualified

•

Radiation Tolerance: has been tested with radiation exposure up to 200 kRad

•

The only provider of space-qualified VCSOs on MIL-PRF-38534 Class H and K Certified Production Lines

•

Dedicated program management

Absolute Max Ratings

•

Operating Temperature: -55°C to +100°C

•

Storage Temperature: -55°C to +125°C

•

Power Supply Voltage: 13V

•

Tuning Voltage: -2V to +12 V

Radiation Tolerant Voltage Controlled SAW Oscillator

Space-Qualified VCSO with Ruggedized Hybrid Construction

API725 Series

•

Low Phase Noise: -109 dBc/Hz at 1 kHz

•

•

Hermetic Kovar Package: 1.0” x 1.0”x .2”SMT

•

Operating Range: -55°C to +100°C

•

Applications include: Phase Lock Loops, Local Oscillators, Low

Noise Clocks, Clock Recovery For Space, Satellite, and Aerospace
