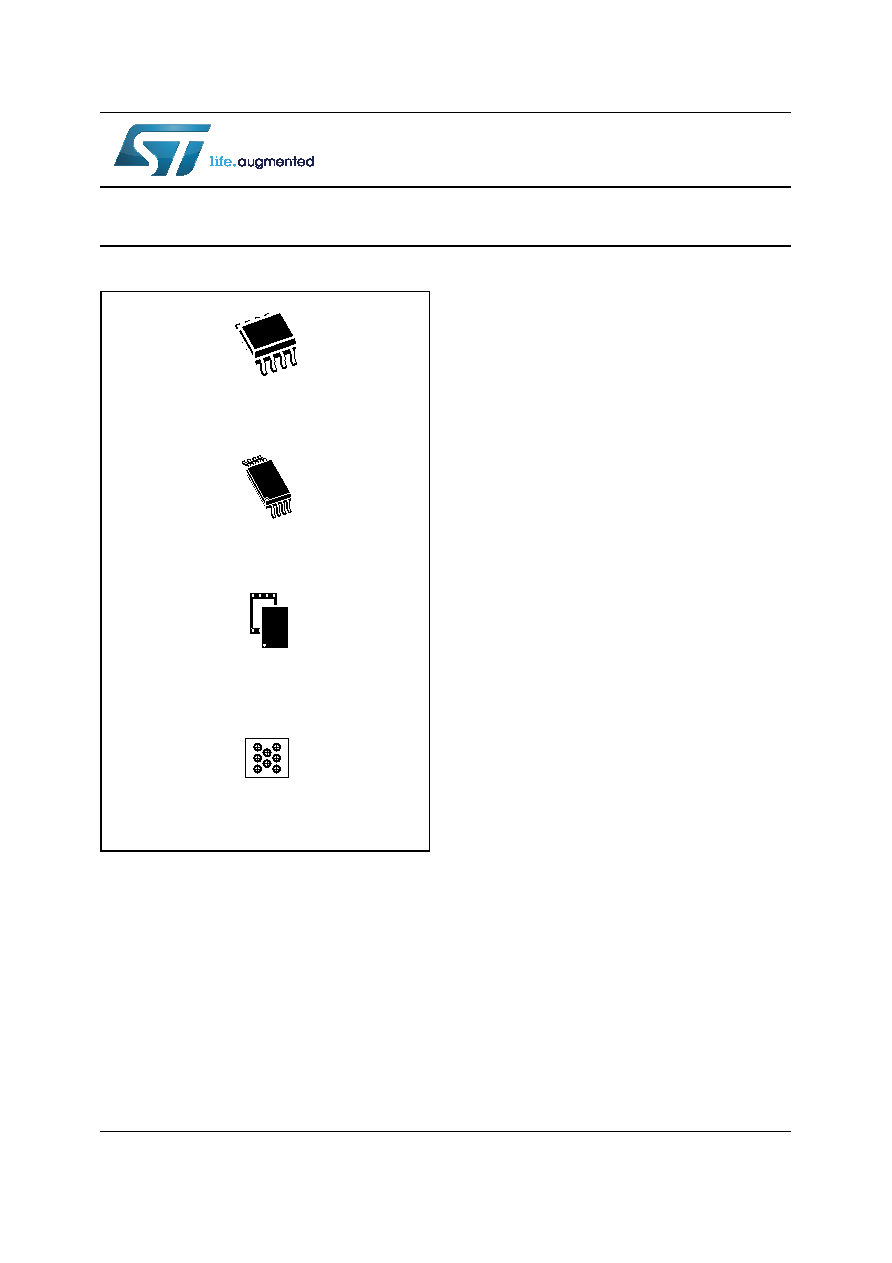

1 / 47 page

This is information on a product in full production.

March 2014

DocID022580 Rev 5

1/47

M95160 M95160-W

M95160-R M95160-DF

16-Kbit serial SPI bus EEPROM

with high-speed clock

Datasheet

- production data

Features

• Compatible with the Serial Peripheral Interface

(SPI) bus

• Memory array

– 16 Kb (2 Kbytes) of EEPROM

– Page size: 32 bytes

– Additional Write lockable Page

(Identification page)

• Write

– Byte Write within 5 ms

– Page Write within 5 ms

• Write Protect: quarter, half or whole memory

array

• High-speed clock: 20 MHz

• Single supply voltage:

– 2.5 V to 5.5 V for M95160-W

– 1.8 V to 5.5 V for M95160-R

– 1.7 V to 5.5 V for M95160-DF

• Operating temperature range: from -40°C up to

+85°C

• Enhanced ESD protection

• More than 4 million Write cycles

• More than 200-year data retention

• Packages

– RoHS compliant and halogen-free

(ECOPACK®)

SO8 (MN)

150 mil width

TSSOP8 (DW)

169 mil width

WLCSP (CS)

UFDFPN8 (MC)

2 x 3 mm

www.st.com
