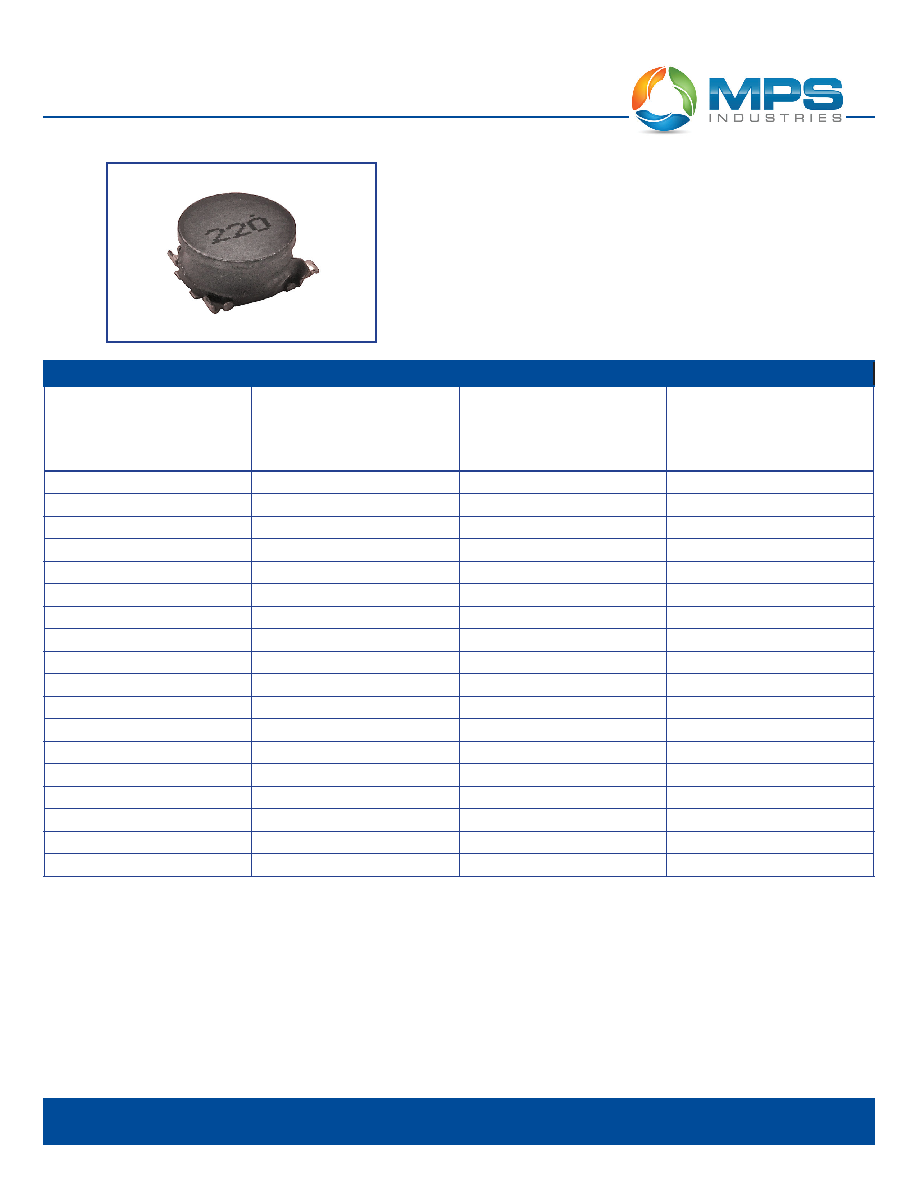

PSF74 SERIES

• Magnetic shielding using magnetic epoxy resin results in lower

costs as compared to traditional ferrite shielded inductors

• Size: 7.5mm length x 7.0mm width x 4.5mm height

• Operating Temperature -40ºC to +120ºC

• RoHS Compliant Product

• Custom Design Available

ELECTRICAL PARAMETERS @ 25°C

Part Number

PSF74-

INDUCTANCE

(μH)

±20%

Isat

(Adc)

MAX

DCR

(Ω)

MAX

100M

10

1.84

0.049

150M

15

1.47

0.081

220M

22

1.23

0.11

330M

33

0.96

0.17

390M

39

0.91

0.23

470M

47

0.88

0.26

560M

56

0.75

0.35

680M

68

0.69

0.38

101M

100

0.60

0.61

151M

150

0.46

0.88

181M

180

0.42

0.98

221M

220

0.36

1.17

271M

270

0.34

1.64

331M

330

0.32

1.86

391M

390

0.29

2.85

471M

470

0.26

3.01

102M

1000

0.18

6.00

502M

5200

0.14

20.0

Note:

1.

Inductance measured at 100KHz, 0.1Vrms

2.

Isat: ∆L drops 25% max from its initial value

Productperformanceislimitedtospecifiedparameters.Dataissubjecttochangewithoutpriornotice.

MAGNETIC EPOXY SHIELDED

SMT POWER INDUCTOR
