ASPI-6045S

30332 Esper

an

za, Rancho Santa Margarita, California92688

Revised: 02.05.14

Visit www.abracon.com for Terms & Conditions of Sale

Wire Wound Magnetically Shielded SMD Power Inductor

6.0 x 6.0 x 4.5mm

ABRACON IS

ISO9001:2008

CERTIFIED

Part Number

ASPI-6045S-

Inductance Code

Inductance

L Tolerance

DC Resistance

(±30%)

Saturation

Current

Temperature

Rise Current

Min. Self resonant

frequency

Marking

Units

μH

−

Ω

A

A

MHz

−

Symbol

L

−

DCR

Isat

Irms

SRF

−

ASPI-6045S-560

56

M

0.221

1.30

1.10

6.4

560

ASPI-6045S-620

62

M

0.235

1.25

1.10

6.4

620

ASPI-6045S-680

68

M

0.289

1.20

1.00

6.4

680

ASPI-6045S-750

75

M

0.305

1.15

0.95

5

750

ASPI-6045S-820

82

M

0.341

1.05

0.90

4.9

820

ASPI-6045S-910

91

M

0.359

1.00

0.85

4.9

910

ASPI-6045S-101

100

M

0.433

0.95

0.80

4.2

101

ASPI-6045S-121

120

M

0.484

0.85

0.77

4.2

121

ASPI-6045S-151

150

M

0.58

0.80

0.70

4.2

151

ASPI-6045S-221

220

M

0.834

0.70

0.59

3.5

221

ASPI-6045S-331

330

M

1.27

0.57

0.57

2.8

331

Test Conditions:

b. Relative Humidity: 65%±20%

c. Air Pressure: 86KPa to 106KPa

Inductance (L): ZM2355 LCR meter or equivalent

Direct Current Resistance (DCR): HIOKI 3540 or equivalent

Saturation Current (Isat): Saturation current meter

Isat: Based on inductance change (∆ L/Lo :∆ -30%)

Temperature rise current (Irms): Electric Power, Electric current meter, Thermometer

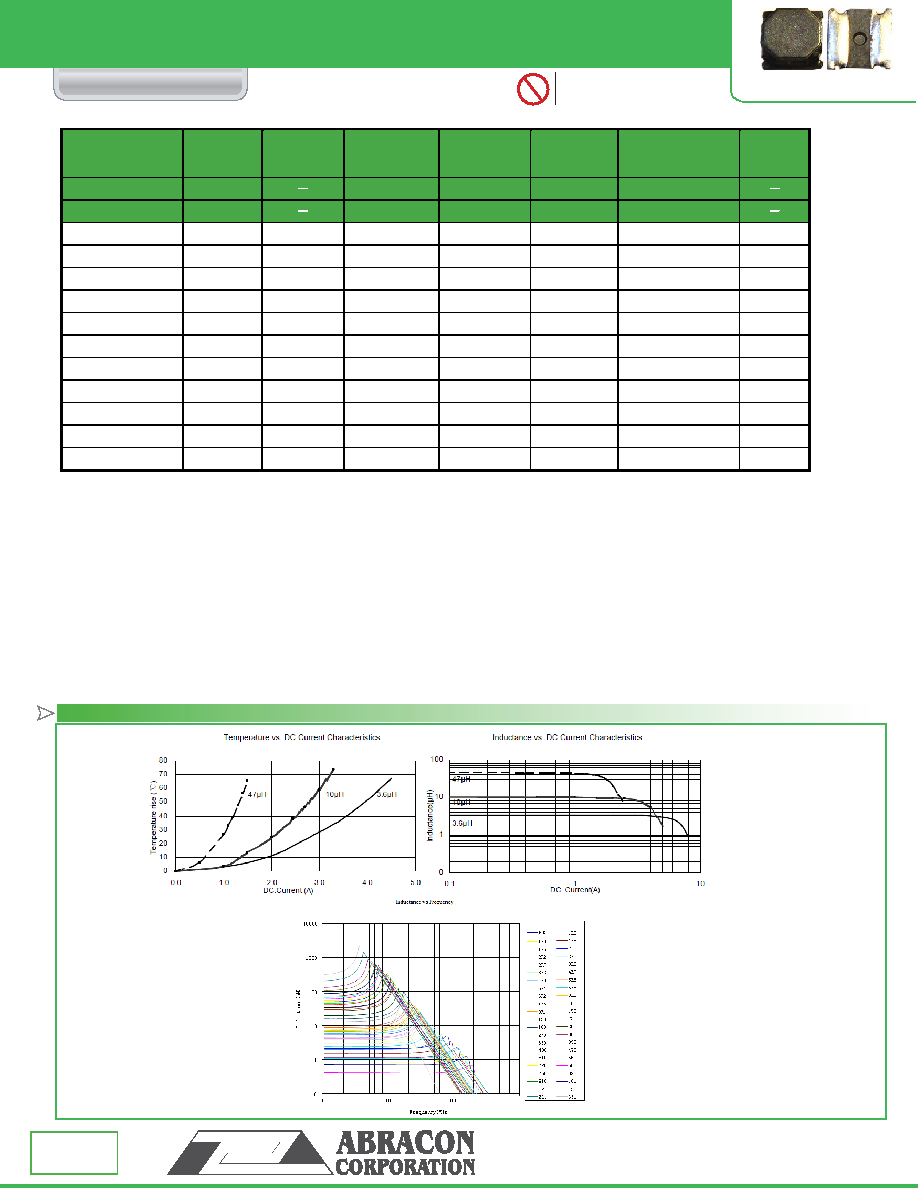

ELECTRICAL CHARACTERISTICS CURVES
