Description

• Compact footprint for high density, high

current/low voltage applications

• Foil technology that adds higher reliability factor

over the traditional magnet wire used for higher

frequency circuit designs

• Frequency Range up to 1MHz

Applications

• Next generation microprocessors

• Energy storage applications

• DC-DC converters

• Computers

Environmental Data

• Storage temperature range: -40°C to +125°C

• Operating ambient temperature range: -40°C to +85°C

(range is application specific).

• Solder reflow temperature: +260°C for 10 seconds

maximum

Packaging

• 45 parts per tray bulk packaging.

• Tape and reel packaging also available, 44mm width,

110 parts per 13" reel.

• Add -TR after part number for tape and reel packaging.

Part

Rated

OCL (1)

Irms (2)

Isat (3)

DCR (4)

Volts (5)

Number

Inductance

µH ± 20%

Amperes

Amperes

Ohms

µSec

µH

(Typ.)

(Typ.)

(Max.)

HC2-R47-R

.47

.52

52.9

63.75

.0006

6.87

HC2-R68-R

.68

.63

52.9

50.00

.0006

6.87

HC2-1R0-R

1.0

1.15

33.0

42.50

.0013

10.31

HC2-2R2-R

2.2

2.00

24.3

31.90

.0023

13.75

HC2-4R7-R

4.7

4.55

17.0

21.25

.0046

20.62

HC2-6R0-R

6.0

6.00

17.0

16.50

.0046

20.62

1) Open Circuit Inductance Test Parameters: 300kHz, 0.250 Vrms, 0.0 Adc

2) DC current for an approximate temperature change of 40°C without core loss.

Derating is necessary for AC currents.

PCB layout, trace thickness and width, air-flow and proximity of other heat

generating components will affect the temperature rise.

It is recommended that the temperature of the part not exceed 125°C under

worst case operating conditions verified in the end application.

3) Peak current for approximately 30% roll-off

4) Values @ 20°C

5) Applied Volt-Time product (V-µS) across the inductor. This value represents the

applied V-µS at 300KHz necessary to generate a core loss equal to 10% of the

total losses for 40°C temperature rise.

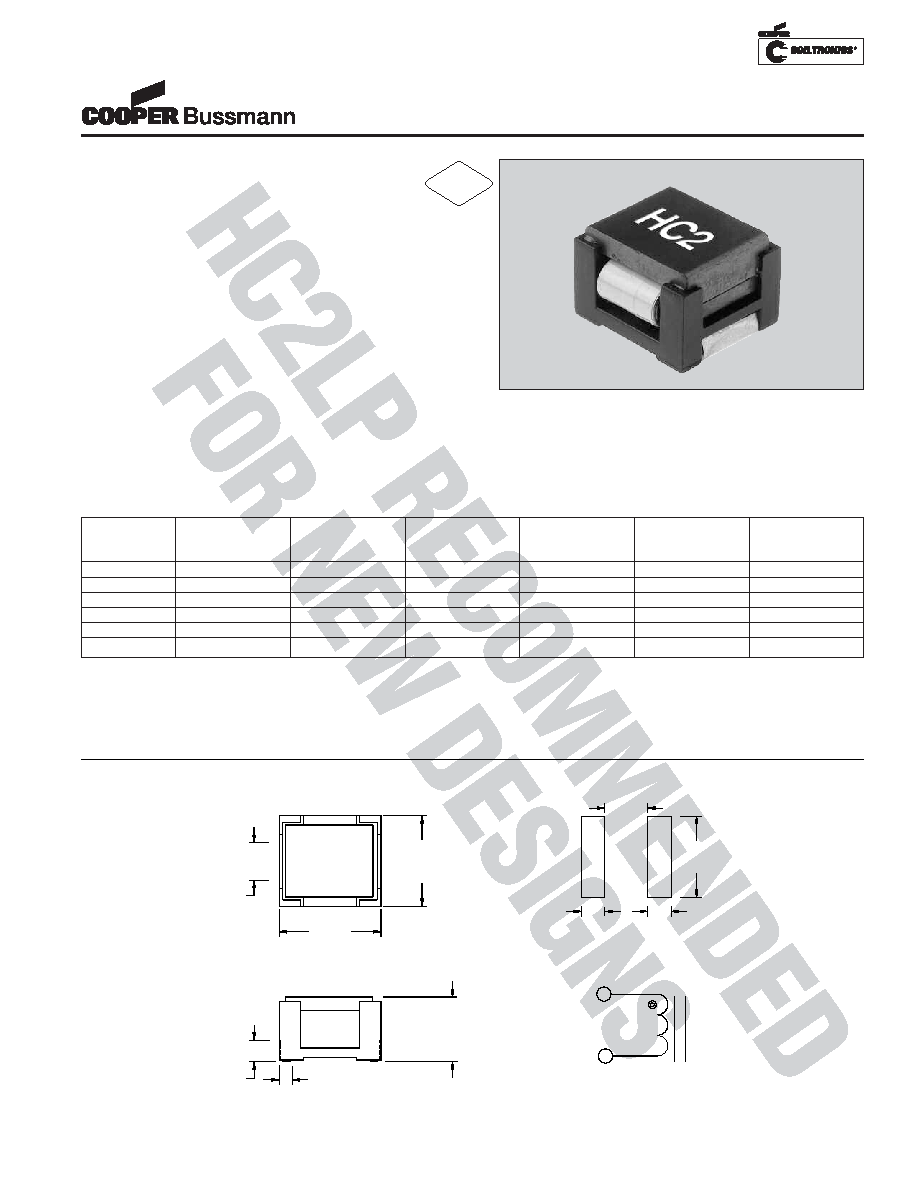

HIGH CURRENT 2™

Power Inductors

Mechanical Diagrams

1

2

19.00

10.00

5.50

5.50

19.2

max

19.0

max

9.5

typ

12.7

max

3.5

typ

2.3

typ

FRONT VIEW

TOP VIEW

SCHEMATIC

2

RECOMMENDED PCB PAD LAYOUT

HC2 - XXX

wwllyy R

1

Dimensions in Millimeters

RoHS

2002/95/EC
