E5AK

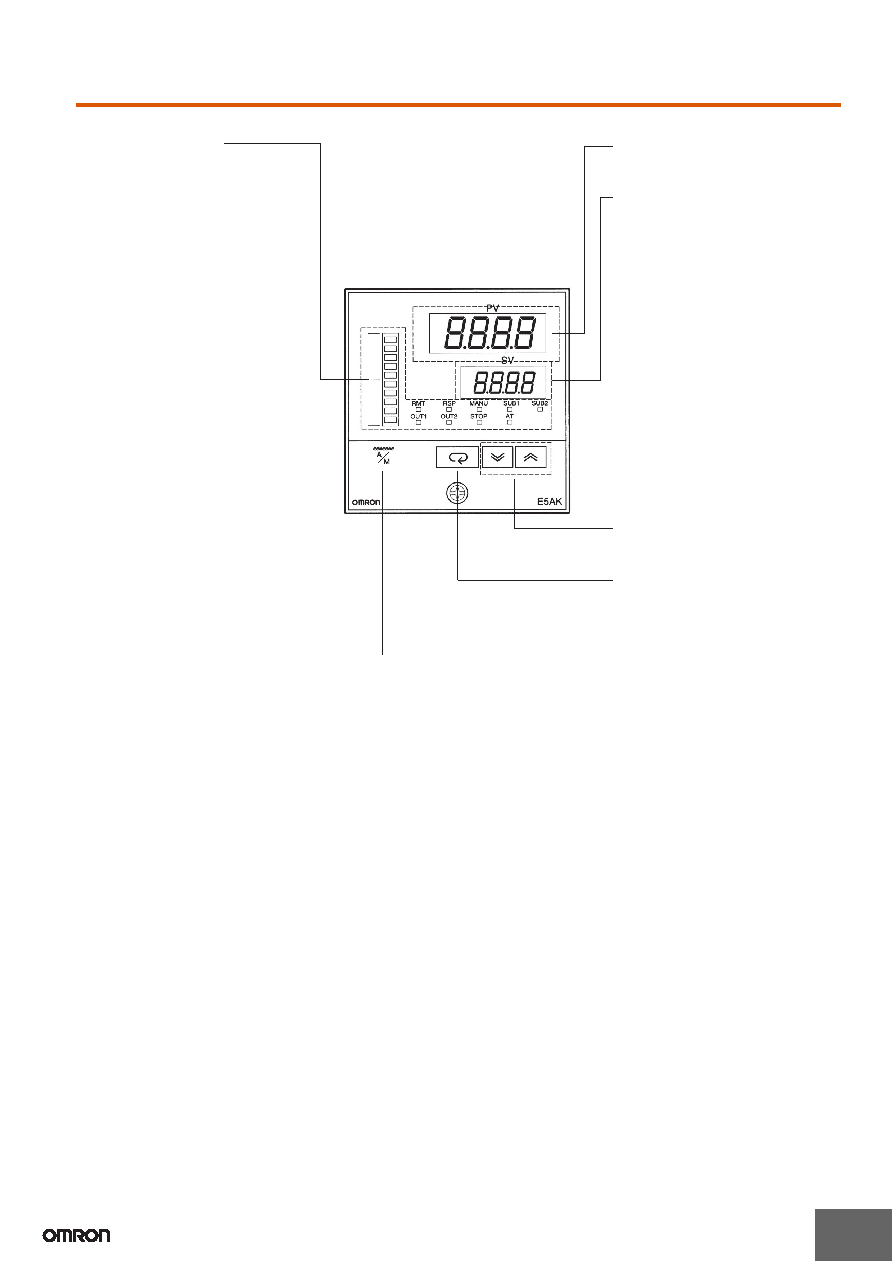

Nomenclature

E5AK

Operation Indicators

A/M Key

No. 1 Display

No. 2 Display

Up Key/Down Key

Display Key

• OUT1

Lights when the pulse output

function assigned to control output

1 turns ON.

• OUT2

Lights when the pulse output

function assigned to control output

2 turns ON.

• SUB1

Lights when the output function

assigned to auxiliary output 1

turns ON.

• SUB2

Lights when the output function

assigned to auxiliary output 2

turns ON.

• MANU

Lights when the manual operation

mode.

• STOP

Lights during operation has

stopped.

• RMT

Lights during remote operation.

• AT

Flashes during auto-tuning.

• RSP

Lights during remote SP opera-

tion.

• Bar Graph

On a standard model (E5AK-

AA2), this bar graph indicates the

manipulated variable (heat) in

10% increments per single

segment. On a position-

proportional model (E5AK-PRR2),

this bar graph indicates the valve

opening in 10% increments per

single segment.

Press to select the auto operation or

manual operation.

Press for less than 1 s to shift the

display to the next parameter. When

this key is pressed for 1 s or more,

the menu screen will be displayed in

any case.

Press to increase or decrease the

value on the No.2 display.

Displays the set point, manipulated

variable, or parameter settings.

Displays the process value or

parameter symbols.
