M93C46-R datasheet(1/33 Pages) STMICROELECTRONICS

部件名	M93C46-R

功能描述	(8-bit or 16-bit wide) MICROWIRE serial access EEPROM

PDF	33 Pages

Scroll/Zoom	100%

制造商	STMICROELECTRONICS [STMicroelectronics]

网页	http://www.st.com

标志

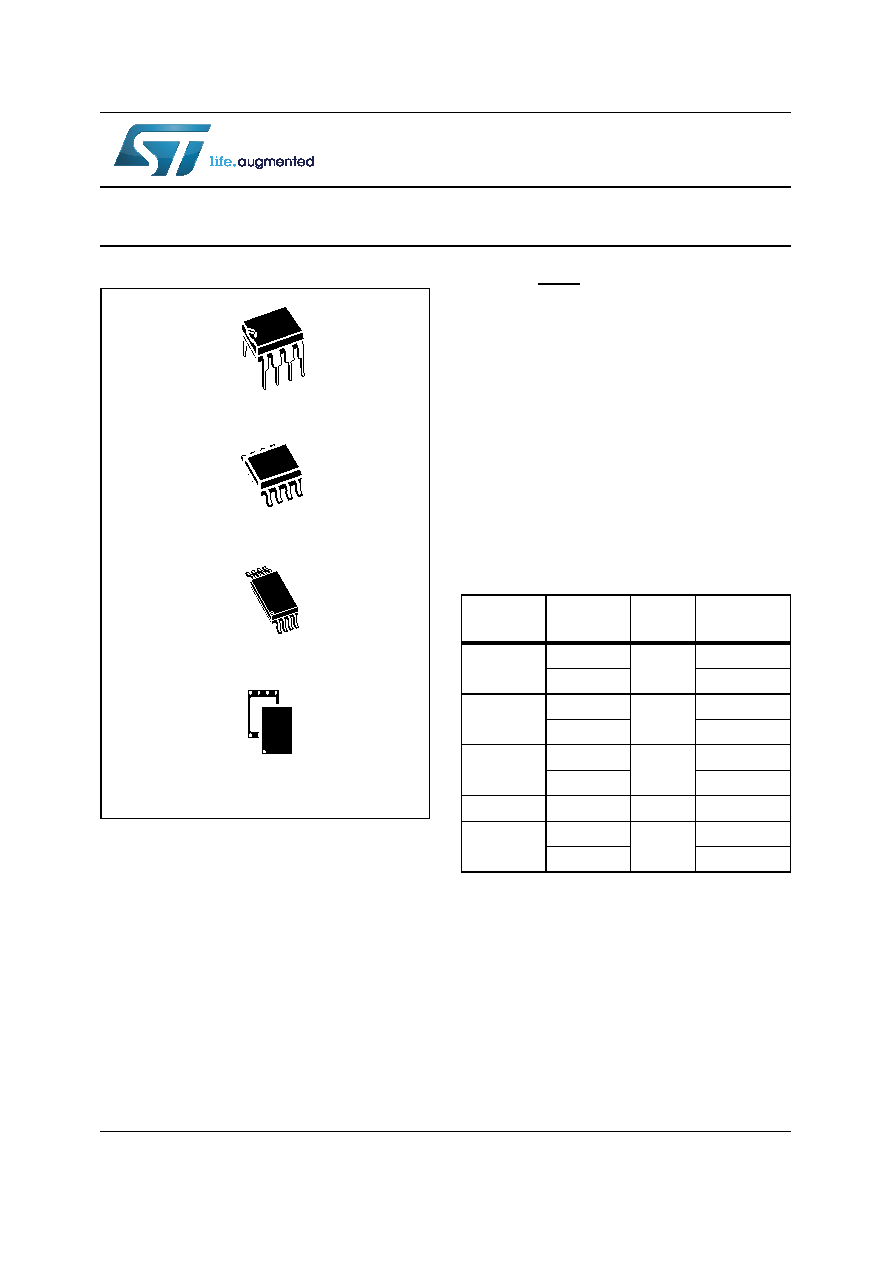

1 / 33 page

This is information on a product in full production.

November 2013

DocID4997 Rev 15

1/33

M93C86-x M93C76-x M93C66-x

M93C56-x M93C46-x

16-Kbit, 8-Kbit, 4-Kbit, 2-Kbit and 1-Kbit

(8-bit or 16-bit wide) MICROWIRE serial access EEPROM

Datasheet

- production data

Features

 Industry standard MICROWIRE bus

 Single supply voltage:

– 2.5 V to 5.5 V for M93Cx6-W

– 1.8 V to 5.5 V for M93Cx6-R

 Dual organization: by word (x16) or byte (x8)

 Programming instructions that work on: byte,

word or entire memory

 Self-timed programming cycle with auto-erase:

5 ms

 READY/BUSY signal during programming

 2 MHz clock rate

 Sequential read operation

 Enhanced ESD/latch-up behavior

 More than 4 million write cycles

 More than 200-year data retention

 Packages

– SO8, TSSOP8, UFDFPN8 packages:

RoHS-compliant and Halogen-free

(ECOPACK®)

– PDIP8 package:



RoHS-compliant (ECOPACK1®)

PDIP8 (BN)

SO8 (MN)

150 mil width

TSSOP8 (DW)

169 mil width

UFDFPN8 (MC)

2 x 3 mm

Table 1. Device summary

Reference

Part

number

Memory

size

Supply

voltage

M93C46-x

M93C46-W

1 Kbit

2.5 V to 5.5 V

M93C46-R

1.8 V to 5.5 V

M93C56-x

M93C56-W

2 Kbit

2.5 V to 5.5 V

M93C56-R

1.8 V to 5.5 V

M93C66-x

M93C66-W

4 Kbit

2.5 V to 5.5 V

M93C66-R

1.8 V to 5.5 V

-

M93C76-R

8 Kbit

1.8 V to 5.5 V

M93C86-x

M93C86-W

16 Kbit

2.5 V to 5.5 V

M93C86-R

1.8 V to 5.5 V

www.st.com
