2mm Double-Row Connector (Product Compliant to UL/CSA Standard)

DF11 Series

sFeatures

1. Space-saving on Board Realized

Double rows of 2mm pitch contact has been condensed

within the 5mm width.

The multiple number of signals can be secured in the same

space as the conventional 2mm single-row contact.

2. Broad Variation

The insulation displacement and crimping methods are

prepared for connection. Thus, board to cable, in-line,

board to board connectors are provided in order to widen a

board design variation.

In addition, "Gold" or "Tin" can be selected for the plating

according application, while the SMT products line up.

3. Applicable Wire Covers Wide Range

According to the double rows of 2mm pitch compact

design, the applicable wire can cover AWG22 to 30.

4. The ID Type Connector Achieves Connection

Work.

Using the full automatic insulation displacement machine,

the complicated multi-harness can be easily connected,

reducing the man-hour and eliminating the manual work

process.

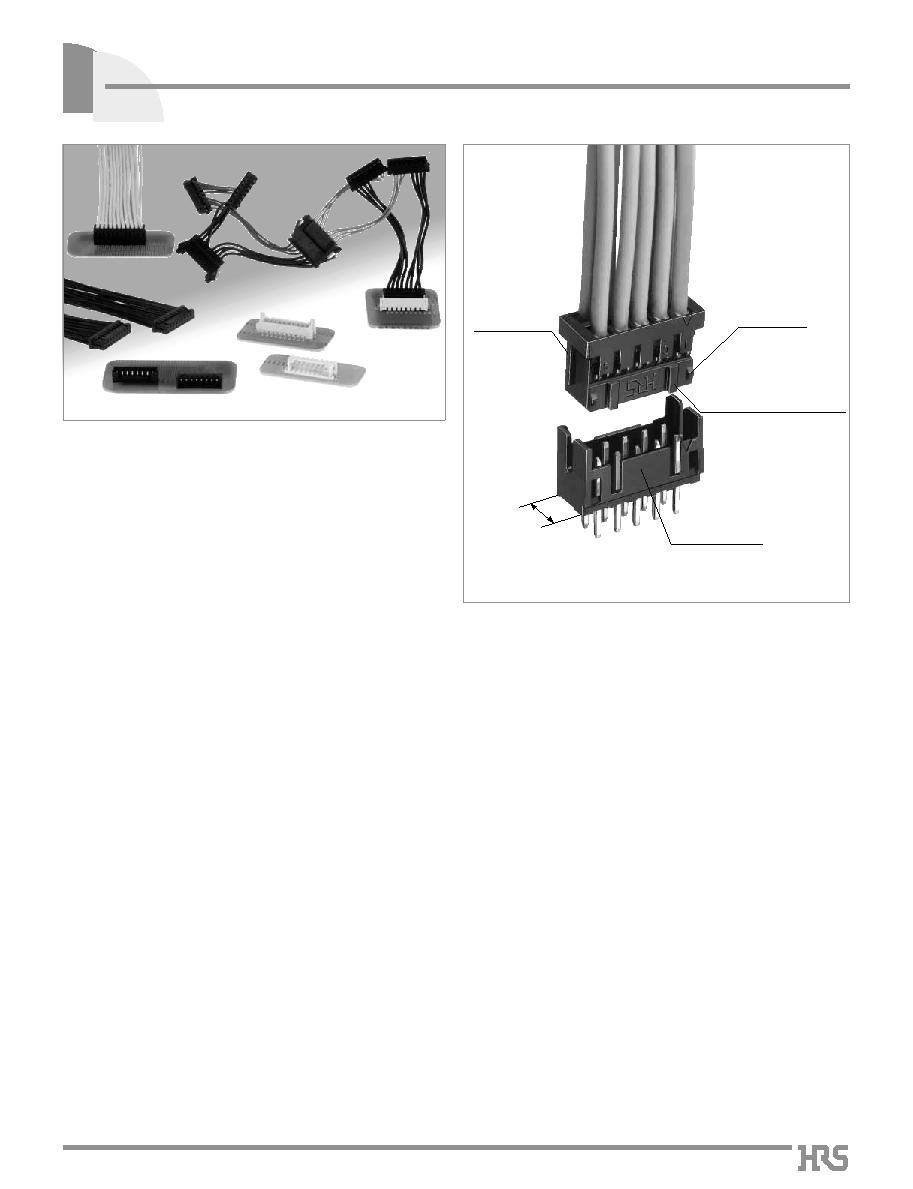

Rib to prevent

mis-insertion

Simple lock

Rib to prevent contact

mis-insertion as well as

disimilar contact mis-insertion

4 wall box style

5mm

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
