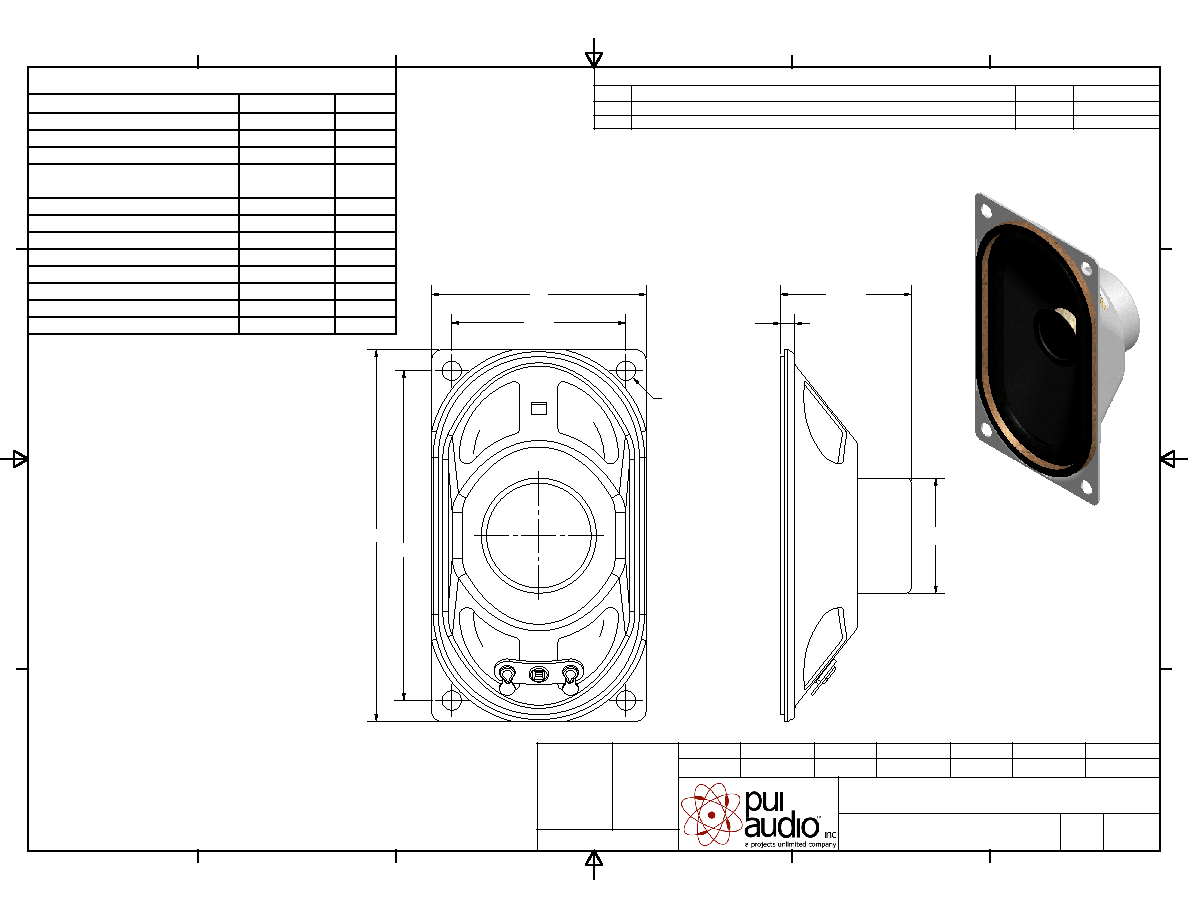

Speaker

AS07104PO-R

J.D.

B.R.

R.W.

10/9/2008

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

9/25/2006

Date

9/25/2006

Date

9/25/2006

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

AS07104PO-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE APPROVED

-

RELEASED FROM ENGINEERING

9/25/2006

A

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

10/9/2008

R.W.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

3

W

MAX INPUT POWER

5

W

IMPEDANCE

4 ± 15%

OHM

OUTPUT SPL @ 1W/1M

(AT 0.8, 1.0, 1.2, 1.5 kHz)

86 ± 3

dBA

DISTORTION (MAX.)

5%

-

RESONANT FREQUENCY

250 ± 70%

Hz

FREQUENCY RANGE

100 ~ 20,000

Hz

HOUSING MATERIAL

METAL

-

CONE MATERIAL

PAPER

-

MAGNET MATERIAL

Nd-Fe-B

-

OPERATING TEMPERATURE

-20 ~ +60

°C

WEIGHT

38

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

71

63

33.3

41

3.7

n`0.3 (4)

25

`1

2.8

`0.3

n22
