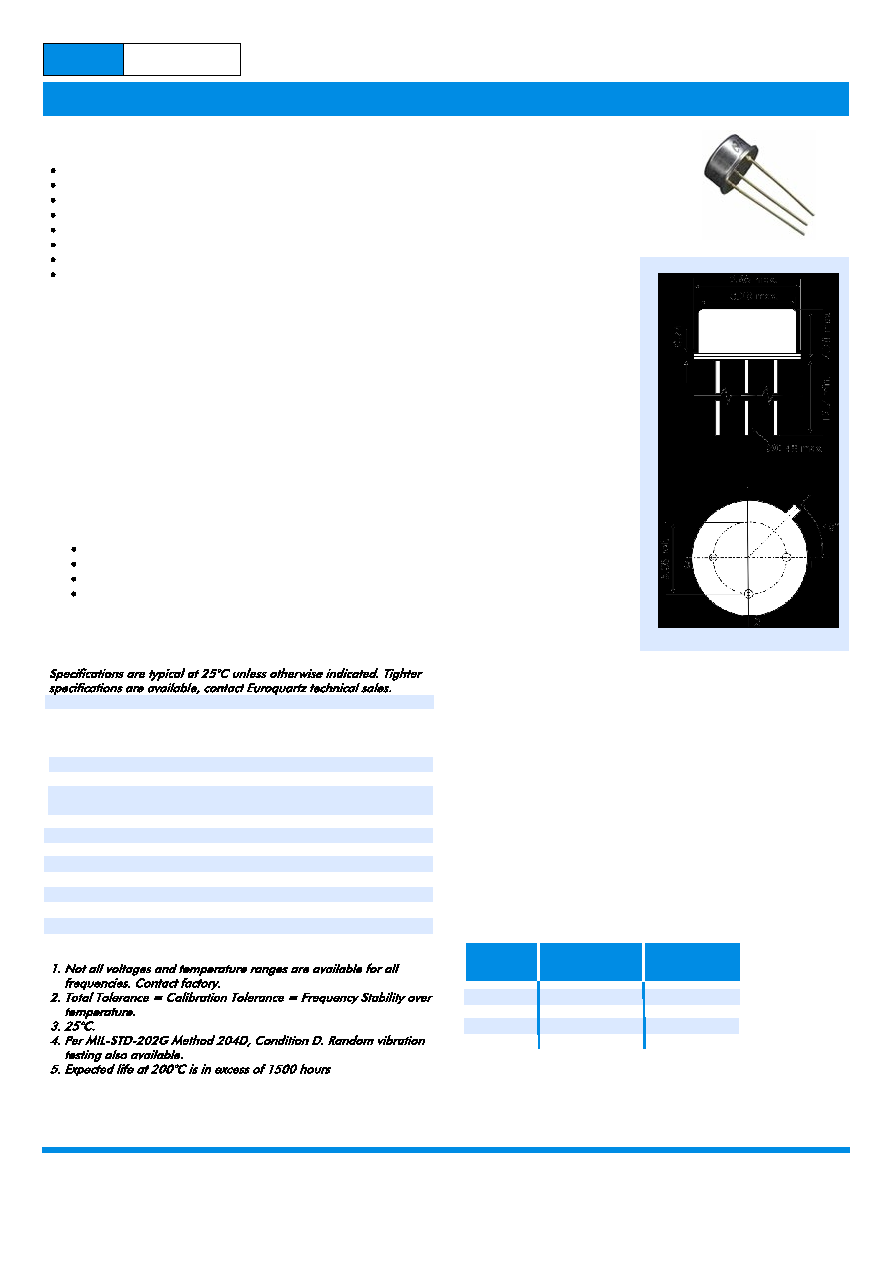

DESCRIPTION

SQXO2ATHG oscillators are miniature oscillators produced in the

space-efficient and ultra-reliable TO-39 package. The oscillator is

designed for extended high temperature operation <200°C. The part

has excellent calibration and stability over a wide temperature range

and has excellent shock resistance.

OUTLINE & DIMENSIONS

FEATURES

High temperature operation <200°C

Excellent stability over temperature

High shock resistance

CMOS Output

Through-hole leaded package

Reduces mechanical and thermal mounting stresses

Robust TO-39 package

32.768kHz option available

Low current (500µA at 25°C)

Fast start-up (0.8ms typical)

SQXO2ATHG OSCILLATOR

High Temp./ High Shock Oscillator

32.768kHz to 50.0MHz

APPLICATIONS

Downhole instrumentation

Rotary shaft sensors

Underground boring tools

Avionics applications

Industrial, Computer & Communications

Frequency Range:

32.768kHz to 50.0MHz

2.5 Volts ±10% (+175°C max.)

3.3 Volts ±10% (+200°C max.)

5.0 Volts ±10% (+200°C max.)

Calibration Tolerance:

±50ppm, or tighter as required

Frequency Stability:

±100ppm for 25°C to 150°C

Over Temperature Range:

±150ppm for 25°C to 175°C

±175ppm for 25°C to 200°C

±200ppm for 25°C to +200°C

Start-up Time:

5ms maximum

Rise/Fall Time:

100ns maximum (32.768kHz)

Duty Cycle:

40% min., 60% max.

Ageing First Year:

±5ppm maximum at 25°C

8000g, 5ms, ½ sine

20g, 10~2000Hz swept sine

-55° to +200°C

SPECIFICATION

PACKAGING

SQXO2ATHG oscillators are supplied tray packed as standard.

32.768kHz

500µA

-

24MHz

3.0mA

8.0mA

32MHz

5.0mA

10.0A

50MHz

6.0mA

14.0mA

Frequency

Supply Current

Vdd = 3.3V

Supply Current

Vdd = 5.0V

SUPPLY CURRENT
