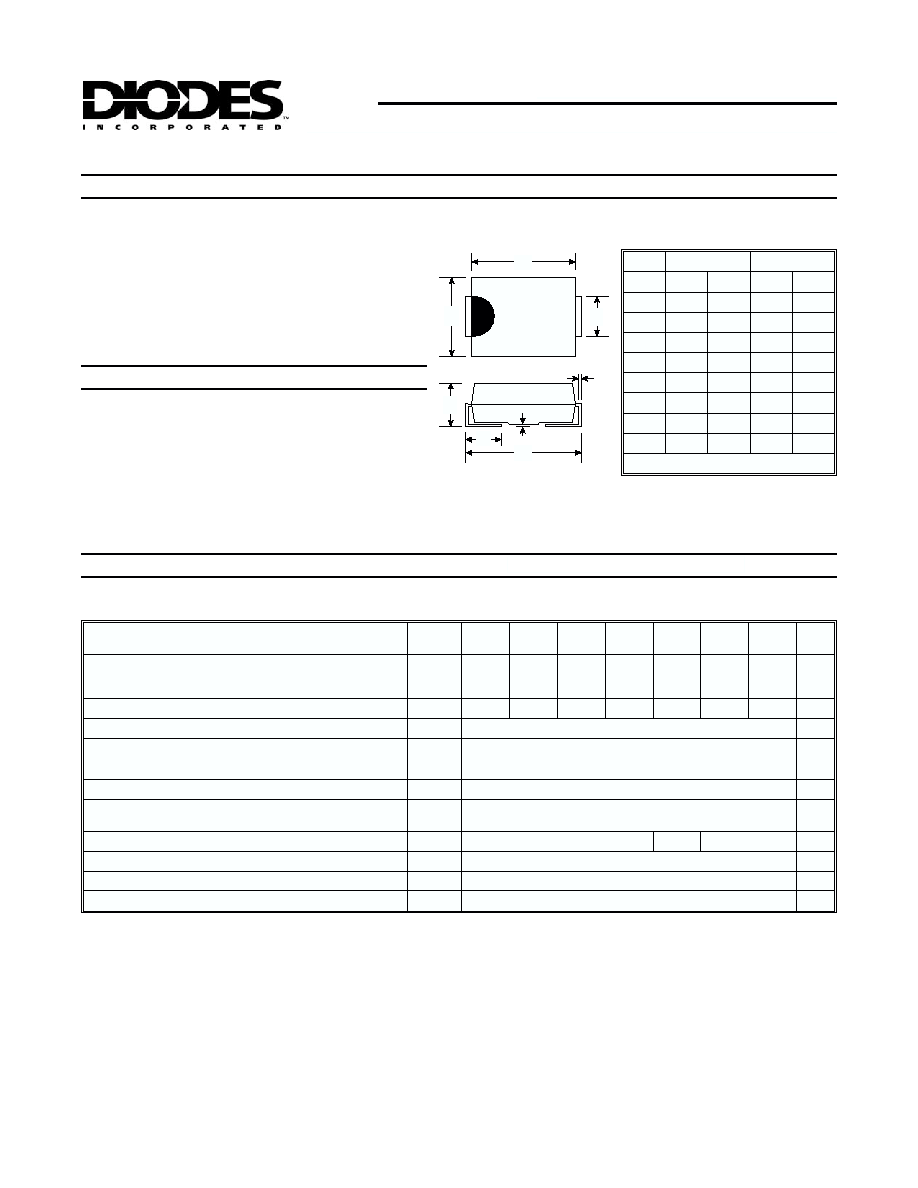

RS3A/B - RS3M/B

3.0A SURFACE MOUNT FAST RECOVERY RECTIFIER

Features

AB, BB, DB, GB, JB, KB, MB Suffix Designates SMB Package

A, B, D, G, J, K, M Suffix Designates SMC Package

SMB

SMC

Dim

Min

Max

Min

Max

A

3.30

3.94

5.59

6.22

B

4.06

4.57

6.60

7.11

C

1.96

2.21

2.75

3.18

D

0.15

0.31

0.15

0.31

E

5.00

5.59

7.75

8.13

G

0.10

0.20

0.10

0.20

H

0.76

1.52

0.76

1.52

J

2.00

2.62

2.00

2.62

All Dimensions in mm

A

B

C

D

G

H

E

J

Maximum Ratings and Electrical Characteristics @ TA = 25°C unless otherwise specified

·

Glass Passivated Die Construction

·

Fast Recovery Time for High Efficiency

·

Low Forward Voltage Drop and High Current

Capability

·

Surge Overload Rating to 100A Peak

·

Ideally Suited for Automatic Assembly

·

Plastic Material: UL Flammability

Classification Rating 94V-0

Mechanical Data

·

Case: Molded Plastic

·

Terminals: Solder Plated Terminal -

Solderable per MIL-STD-202, Method 208

·

Polarity: Cathode Band or Cathode Notch

·

Marking: Type Number

·

SMB Weight: 0.09 grams (approx.)

·

SMC Weight: 0.20 grams (approx.)

Single phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Characteristic

Symbol

RS3

A/AB

RS3

B/BB

RS3

D/DB

RS3

G/GB

RS3

J/JB

RS3

K/KB

RS3

M/MB

Unit

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

VRRM

VRWM

VR

50

100

200

400

600

800

1000

V

RMS Reverse Voltage

VR(RMS)

35

70

140

280

420

560

700

V

Average Rectified Output Current

@ TT = 75

°C

IO

3.0

A

Non-Repetitive Peak Forward Surge Current

8.3ms Single half sine-wave Superimposed on Rated Load

(JEDEC Method)

IFSM

100

A

Forward Voltage

@ IF = 3.0A

VFM

1.3

V

Peak Reverse Current

@ TA = 25

°C

at Rated DC Blocking Voltage

@ TA = 125

°C

IRM

5.0

250

mA

Maximum Recovery Time (Note 3)

trr

150

250

500

ns

Typical Junction Capacitance (Note 2)

Cj

50

pF

Typical Thermal Resistance Junction to Terminal (Note 1)

RqJT

25

K/W

Operating and Storage Temperature Range

Tj, TSTG

-65 to +150

°C

Notes:

1. Thermal resistance: junction to terminal, unit mounted on PC board with 5.0 mm2 (0.013 mm thick) copper pad as heat sink.

2. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.

3. Reverse recovery test conditions: IF = 0.5A, IR = 1.0A, Irr = 0.25A. See figure 5.
