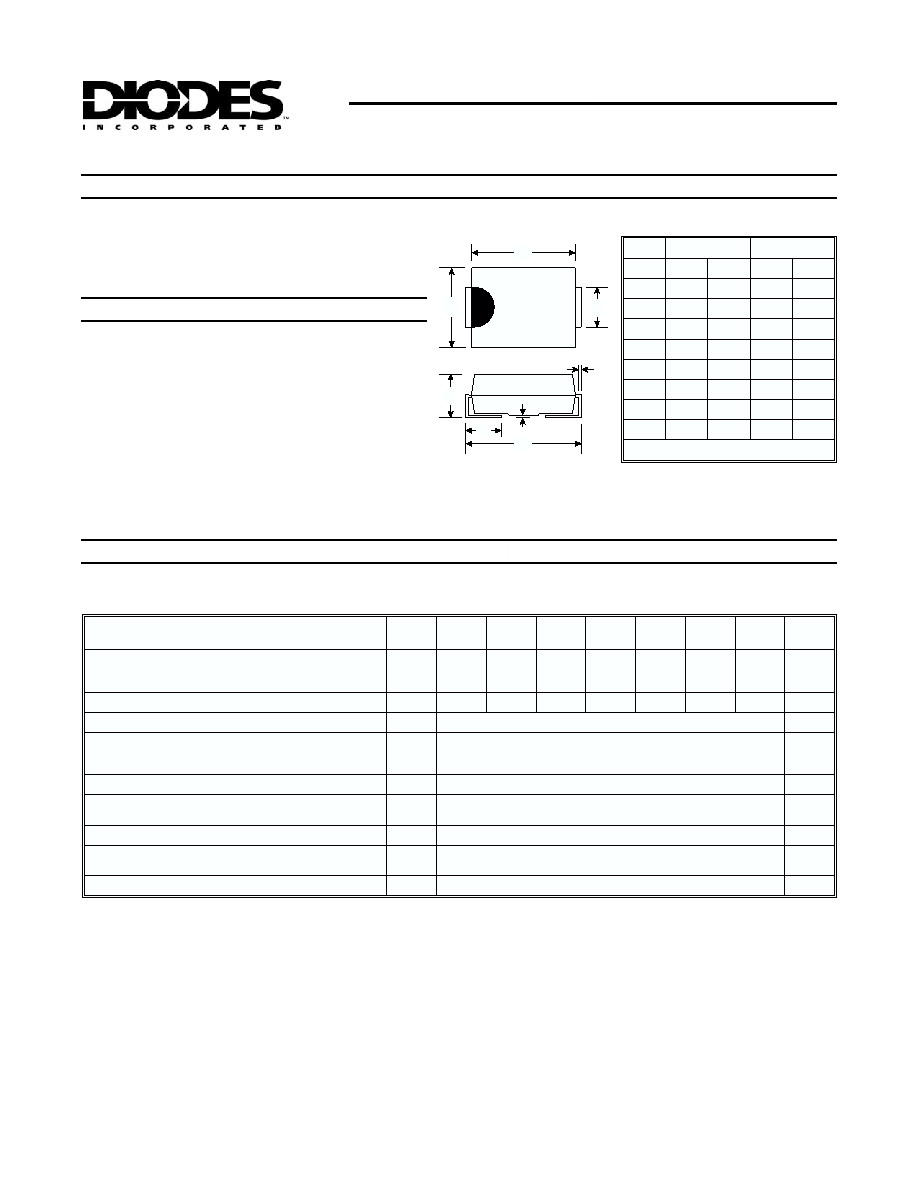

S3A/B-S3M/B

S3A/B - S3M/B

3.0A SURFACE MOUNT GLASS PASSIVATED RECTIFIER

Features

AB, BB, DB, GB, JB, KB, MB Suffix Designates SMB Package

A, B, D, G, J, K, M Designates SMC Package

SMB

SMC

Dim

Min

Max

Min

Max

A

3.30

3.94

5.59

6.22

B

4.06

4.57

6.60

7.11

C

1.96

2.21

2.75

3.18

D

0.15

0.31

0.15

0.31

E

5.00

5.59

7.75

8.13

G

0.10

0.20

0.10

0.20

H

0.76

1.52

0.76

1.52

J

2.00

2.62

2.00

2.62

All Dimensions in mm

A

B

C

D

G

H

E

J

·

Glass Passivated Die Construction

·

Low Forward Voltage Drop and High Current

Capability

·

Surge Overload Rating to 100A Peak

·

Ideally Suited for Automatic Assembly

Mechanical Data

·

Case: Molded Plastic

·

Case Material - UL Flammability Rating

Classification 94V-0

·

Moisture sensitivity: Level 1 per J-STD-020A

·

Terminals: Solder Plated Terminal - Solderable

per MIL-STD-202, Method 208

·

Polarity: Cathode Band or Cathode Notch

·

Weight: SMB 0.093 grams (approx)

SMC 0.21 grams (approx)

·

Marking: Type Number & Date Code,

See Page 2

·

Ordering Information: See Page 2

Single phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Characteristic

Symbo

S3

A/AB

S3

B/BB

S3

D/DB

S3

G/GB

S3

J/JB

S3

K/KB

S3

M/MB

Unit

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

50

100

200

400

600

800

1000

V

RMS Reverse Voltage

30

70

140

280

420

560

700

V

Average Rectified Output Current

3.0

A

Non-Repetitive Peak Forward Surge Current 8.3ms

single half sine-wave superimposed on rated load

(JEDEC Method)

100

A

Forward Voltage

1.15

V

Peak Reverse Current

at Rated DC Blocking Voltage

10

250

µA

Typical Total Capacitance (Note 1)

40

pF

Typical Thermal Resistance Junction to Terminal

(Note 2)

10

°C/W

Operating and Storage Temperature Range

-65 to +150

°C

Notes:

1. Measured at 1.0 MHz and applied reverse voltage of 4.0V DC.
