Applications

• Voltage Regulator Module (VRM)

• Multi-phase regulators

• Point-of-load modules

• Desktop and server VRMs and EVRDs

• Base station equipment

• Notebook regulators

• Battery power systems

• Graphics cards

• Data networking and storage systems

Environmental Data

• Storage temperature range: -55°C to +125°C

• Operating temperature range: -55°C to +125°C

(ambient plus self temperature rise)

• Solder reflow temperature: J-STD-020D compliant

Packaging

• Supplied in tape and reel packaging, 850 parts per 13” reel

Description

• Halogen free, lead free, RoHS compliant

• 125°C maximum total operating temperature

• 11.5x 10.3 x 4.0mm maximum surface mount package

• Powder Iron core material

• Magnetically shielded, low EMI

• High current carrying capacity, low core losses

• Inductance range 0.20µH to 10.0µH

• Current range from 7.5 to 45 Amps

• Frequency range up to 5MHz

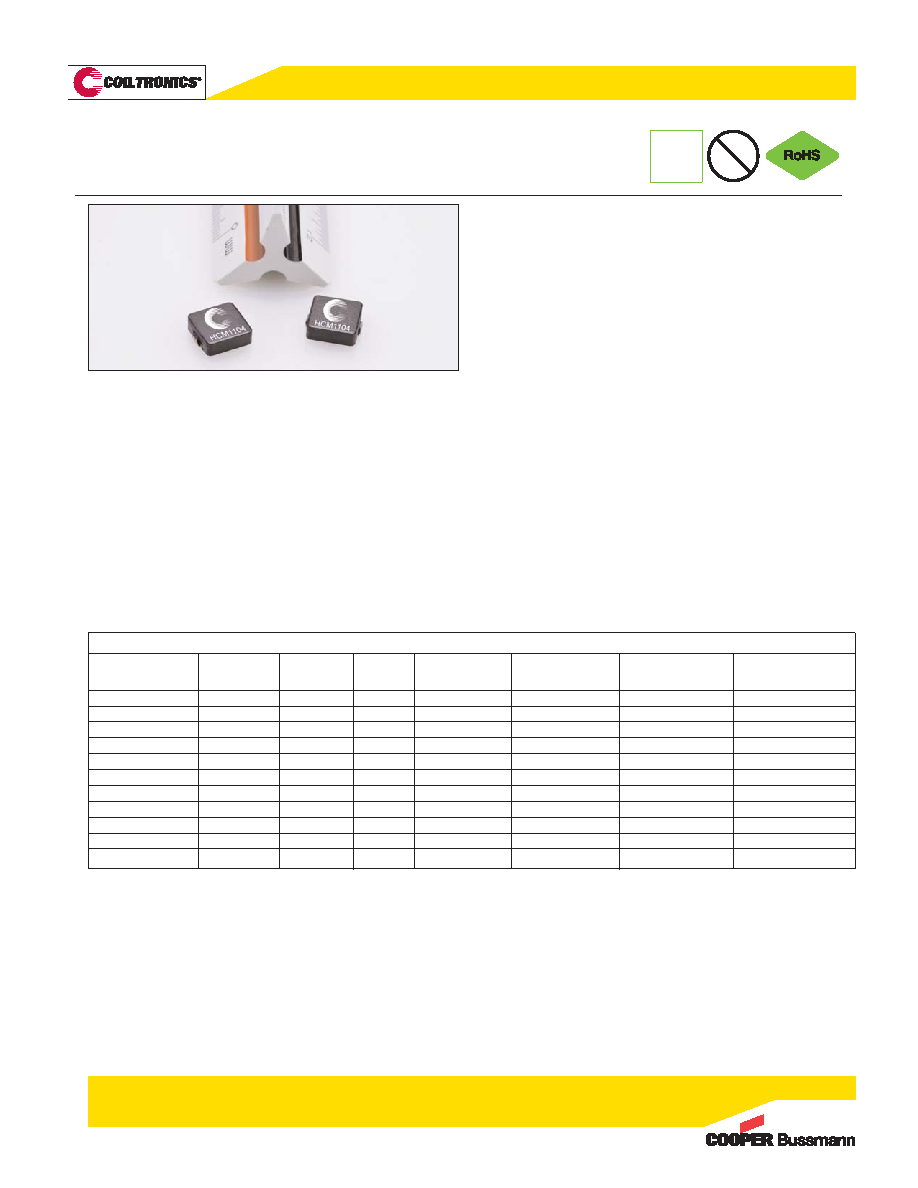

High Current Power Inductors

HCM1104 Series

0312

BU-SB12258

Page 1 of 6

Data Sheet: 4370

SMD Device

1. Open Circuit Inductance (OCL) Test Parameters: 100kHz, 0.25Vrms, 0.0Adc @ 25°C.

2. Full Load Inductance (FLL) Test Parameters: 100kHz, 0.25Vrms,Isat @ 25°C.

3. Irms: DC current for an approximate temperature rise of 40°C without core loss. Derating is

necessary for AC currents. PCB layout, trace thickness and width, air-flow and proximity of other

heat generating components will affect the temperature rise. It is recommended that the

temperature of the part not exceed 125°C under worst case operating conditions verified in the

end application.

4. Isat: Peak current for approx. 20% rolloff at +25°C - HCM1104-R20-R to HCM1104-R90-R.

5. Isat: Peak current for approx. 30% rolloff at +25°C - HCM1104-1R0-R to HCM 1104-100-R.

6. K-factor: Used to determine Bp-p for core loss (see graph). Bp-p = K * L * ΔI. Bp-p:

(Gauss), K: (K-factor from table), L: (Inductance in

μH), ΔI (Peak-to-peak ripple current in Amps).

7. Part Number Definition: HCM1104-xxx-R

- HCM1104 = Product code and size

- xxx= Inductance value in

μH, R = decimal point

- “-R” suffix = RoHS compliant

Product Specifications

Part

OCL

1

FLL

Irms

3

Isat

4, 5

DCR (m

Ω)

DCR (m

Ω)

Number

7

± 20% (

μH)

(

μH)

(Amps)

@25°C (Amps)

@20°C Nominal

@20°C Maximum

K-factor

6

HCM1104-R20-R

0.20

0.13

32

45

0.63

0.72

411

HCM1104-R36-R

0.36

0.23

30

42

1.04

1.20

269

HCM1104-R45-R

0.45

0.29

29

36

1.07

1.23

219

HCM1104-R56-R

0.56

0.36

25

32

1.56

1.80

230

HCM1104-R90-R

0.90

0.58

22

28

2.17

2.50

236

HCM1104-1R0-R

1.0

0.56

18

28

3.00

3.30

378

HCM1104-1R5-R

1.5

0.84

16

32

3.80

4.20

310

HCM1104-2R2-R

2.2

1.23

12

18

6.00

7.00

253

HCM1104-3R3-R

3.3

1.85

10

16

10.8

11.8

220

HCM1104-4R7-R

4.7

2.63

8.5

15

17.0

20.0

175

HCM1104-100-R

10.0

5.60

7.5

8.5

27.0

30.0

116
