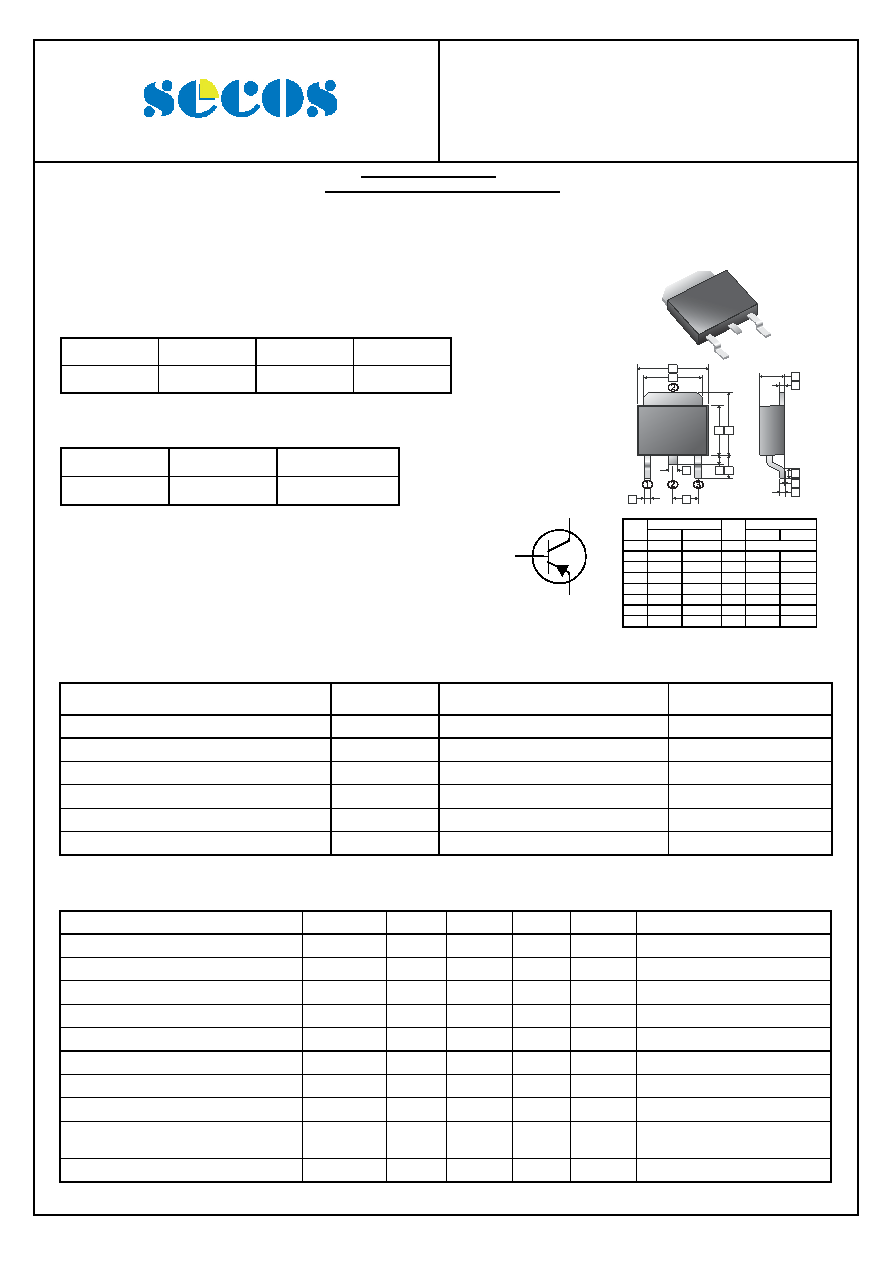

2SB1184

-3A , -60V

PNP Plastic Encapsulated Transistor

Elektronische Bauelemente

22-Oct-2012 Rev. B

Page 1 of 1

http://www.SeCoSGmbH.com/

Any changes of specification will not be informed individually.

1

Base

3

Emitter

Collector

2

RoHS Compliant Product

A suffix of “-C” specifies halogen & lead-free

FEATURES

Designed for general

Low VCE(sat)

CLASSIFICATION OF hFE

Product-Rank

2SB1184-P

2SB1184-Q

2SB1184-R

Range

82~180

120~270

180~390

PACKAGE INFORMATION

ABSOLUTE MAXIMUM RATINGS (TA=25°C unless otherwise specified)

Parameter

Symbol

Ratings

Unit

Collector to Base Voltage

VCBO

-60

V

Collector to Emitter Voltage

VCEO

-50

V

Emitter to Base Voltage

VEBO

-5

V

Collector Current -Continuous

IC

-3

A

Collector Power Dissipation

PC

1

W

Junction and Storage Temperature Range

TJ ,TSTG

150 , -55~150

°C

ELECTRICAL CHARACTERISTICS (TA=25°C unless otherwise noted)

Parameter

Symbol

Min.

Typ.

Max.

Unit

Test Conditions

Collector-base breakdown voltage

V(BR)CBO

-60

-

V

IC= -50µA, IE=0

Collector-emitter breakdown voltage

V (BR)CEO

-50

-

V

IC= -1mA, IB=0

Emitter-base breakdown voltage

V(BR)EBO

-5

-

V

IE= -50µA, IC=0

Collector cut-off current

ICEO

-

-1

µ

A

VCB= -40V, IE=0

Emitter cut-off current

IEBO

-

-1

µ

A

VEB= -4V, IC=0

DC current gain

hFE

82

-

390

VCE= -3V, IC= -0.5A

Collector-emitter saturation voltage

VCE(sat)

-

-1

V

IC= -2A, IB= -200mA

Base-emitter saturation voltage

VBE(sat)

-

-1.2

V

IC= -1.5A, IB= -150mA

Transition frequency

fT

-

70

-

MHz

VCE= -5V, IC= -500mA,

fT=30MHz

Collector output capacitance

Cob

-

50

-

pF

VCB= -10V, f=1MHz, IE=0

Package

MPQ

Leader Size

TO-252

2.5K

13 inch

A

C

D

N

O

P

G E

F

H

K

J

M

B

D-Pack (TO-252)

REF.

Millimeter

REF.

Millimeter

Min.

Max.

Min.

Max.

A

6.35

6.8

J

2.30 REF.

B

5.20

5.50

K

0.64

0.90

C

2.15

2.40

M

0.50

1.1

D

0.45

0.58

N

0.9

1.65

E

6.8

7.5

O

0

0.15

F

2.40

3.0

P

0.43

0.58

G

5.40

6.25

H

0.64

1.20
