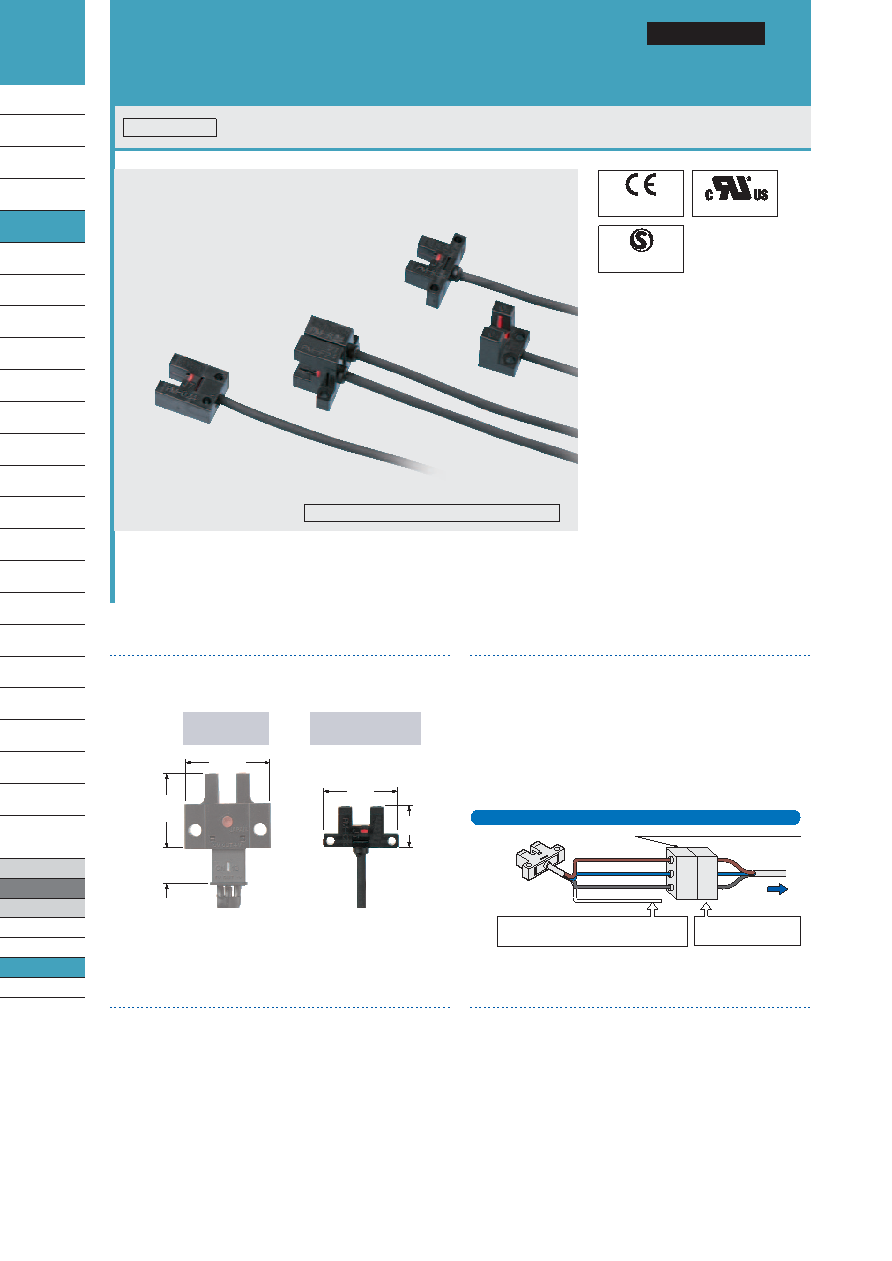

Extremely small size and space saving

PM-24 series contributes to the miniaturization or space

saving of your equipment.

Equipped with two independent outputs

All models are equipped with two independent outputs-

Light-ON and Dark-ON.

Hence, one model suffices even if the output is to be

used differently, depending upon the location of use.

Also, since two independent outputs have been

provided, cumbersome handling of the output conversion

control input, or fear of logic inversion due to a cable

break, is eliminated. The sensor can be connected to the

existing wiring as it is.

25.4 mm

1.000 in

22.3

mm

0.878 in

11 mm

0.433 in

Previous

model

22 mm

0.866 in

12 mm

0.472 in

Ultra-small type

PM-K24(-R)

(

)

Wide model variety

A wide variety of 5 shapes and 15 models is available.

You may select from this wide range to suit the mounting

conditions.

Conforming to

EMC Directive

Recognition

Extremely small size enables space saving!!

Certified

(Some models only)

Meets global requirements

Conforms to Europe’s EMC Directive and obtains UL

Recognition.

Both, NPN and PNP output models are available.

The

PM-□24 has also obtained Korea’s S-mark

certification.

Note: Ensure to insulate the unused output wire.

+V

0 V

Output 1 (Light-ON)

Output 2 (Dark-ON)

Connected device side

can be left as it is.

To PLC

Commercial intermediate connector

Just connect the cable of the used

output (either Light-ON or Dark-ON).

Example of connection with a commercial intermediate connector
