AISC-0603

30332 Esperanza, Rancho Santa Margarita, California92688

tel 949-546-8000 | fax 949-546-8001| www.abracon.com

Revised: 09.16.13

Visit

www.abracon.com for Terms & Conditions of Sale

ABRACON IS

ISO9001:2008

CERTIFIED

ATTENTION:Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automo-

tive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requir-

ing high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme

operating environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.

• 1~2 ºC/sec. Ramp

• Pre-heating: 150~190ºC/90±30 sec.

• Time above 240ºC: 20~40sec

• Peak temperature: 260ºC Max./10sec.

• Solder paste: Sn/3.0Ag/0.5Cu

• Max.2 times for re-flowing

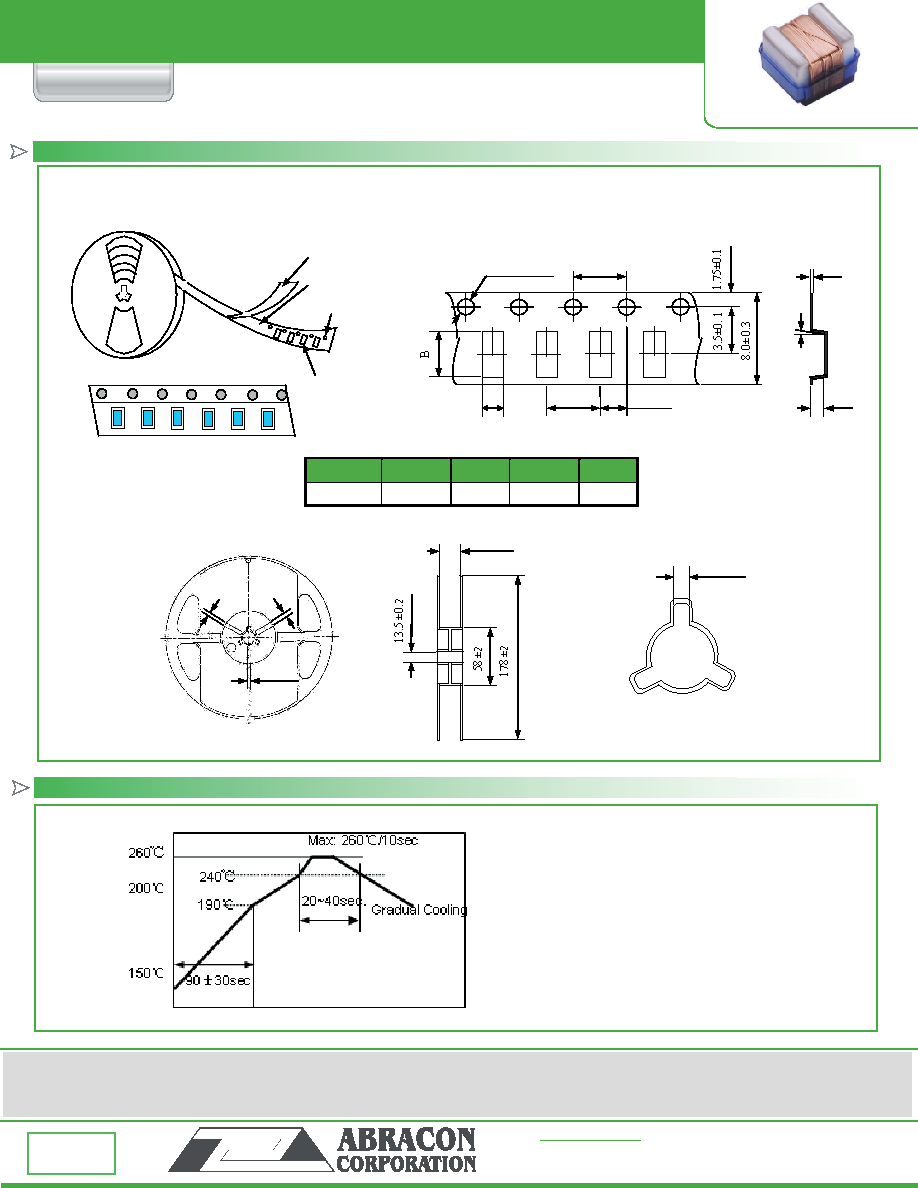

REFLOW PROFILE:

PACKING:

T= tape and reel (3,000pcs/reel)

4.0±0.1

Φ1.5(+0.1/ -0)

2.0±0.1

Sprocket Hole

Top Tape

Embossed Tape

Embossment

Chip Cavity

5.0 ±0.1

3.0 ±0.1

4.0±0.1

10±1.5

2.45 ±0.2

K Max

T Max

1.12 ±0.05

1.80±0.05

4.0±0. 1

0.96±0.05

0.3±0.1

1.80 x 1.12 x 1.02mm

Dimension: mm

RoHS/RoHS II Compliant

CERAMIC WIRE WOUND INDUCTORS
