This is information on a product in full production.

June 2014

DocID023924 Rev 4

1/38

M24C08-W M24C08-R

M24C08-F

8-Kbit serial I²C bus EEPROM

Datasheet

- production data

1. Not recommended for new designs

Features

• Compatible with all I2C bus modes:

– 400 kHz

– 100 kHz

• Memory array:

– 8 Kbit (1 Kbyte) of EEPROM

– Page size: 16 bytes

• Single supply voltage:

– M24C08-W: 2.5 V to 5.5 V

– M24C08-R: 1.8 V to 5.5 V

– M24C08-F: 1.7 V to 5.5 V (full temperature

range)

and 1.6 V to1.7 V (limited temperature

range)

• Write:

– Byte Write within 5 ms

– Page Write within 5 ms

• Operating temperature range: from -40 °C up

to +85 °C

• Random and sequential Read modes

• Write protect of the whole memory array

• Enhanced ESD/Latch-Up protection

• More than 4 million Write cycles

• More than 200-year data retention

Packages

• PDIP8 ECOPACK1®

• SO8 ECOPACK2®

• TSSOP8 ECOPACK2®

• UFDFPN8 ECOPACK2®

• WLCSP ECOPACK2®

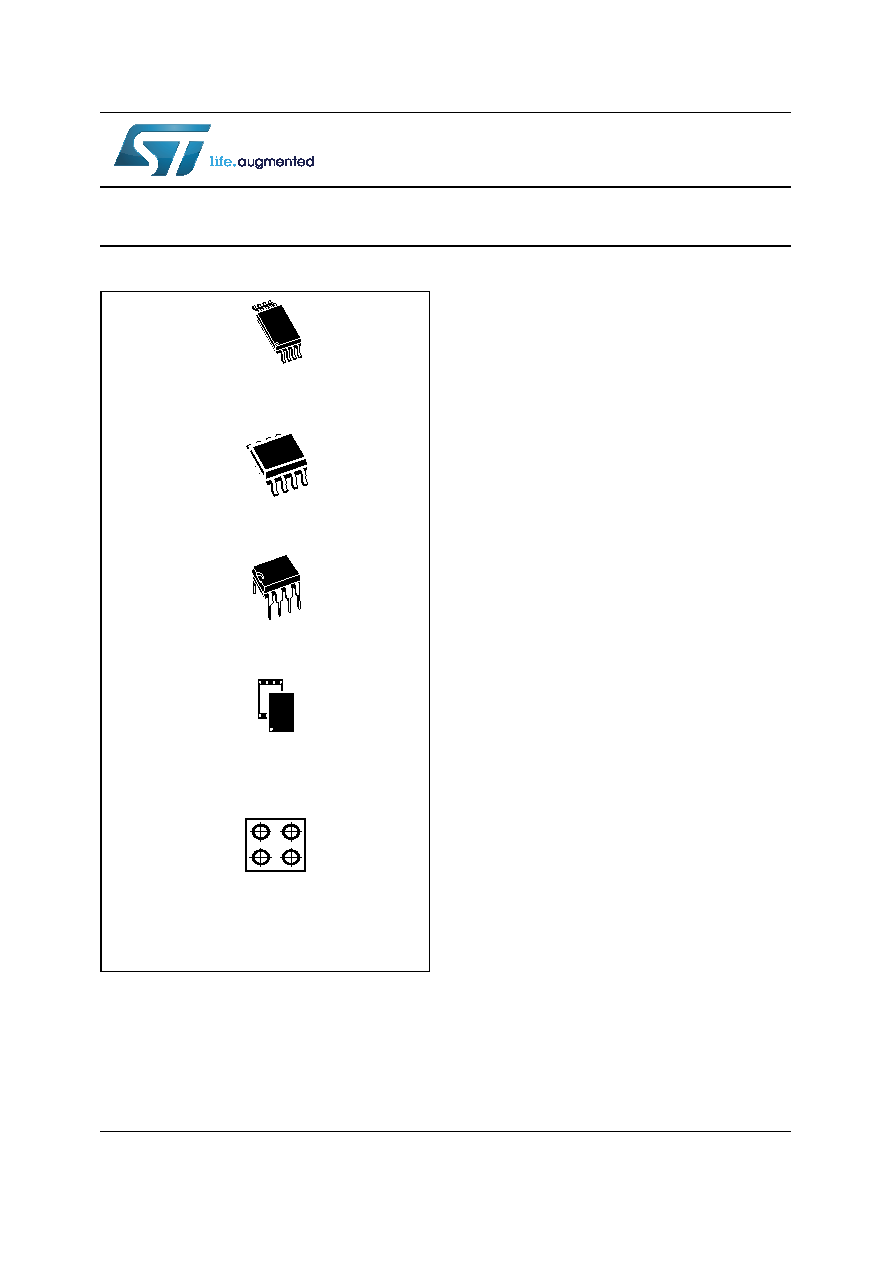

PDIP8 (BN)(1)

TSSOP8 (DW)

169 mil width

UFDFPN8

(MC)

SO8 (MN)

150 mil width

WLCSP

(CT)

www.st.com
