Molding Power Choke – MHCC/MHCI Series

Electrical Characteristics

Inductance

Tolerance

Test

Frequency

Irms

Isat

RDC

Part Number

(uH)

(±%)

(KHz)

(A)Typ.

(A)Typ.

(mΩ)Max

MHCI06012-6R8M-R8A

6.8

20

100

2.2

2.8

210

 Irms

DC current (A) that will cause an approximate ΔT of 40℃

 Isat

DC current (A) that will cause L to drop approximately 30%



Tolerance：M= ±20%



L : WK 3260B, 100KHz 0.5V



Rdc : CHEN HWA 502



Operating temperature range from -55℃ to 125℃. (Including self - temperature rise)

Test Instruments：

WK3260B Impedance / Material Analyzer

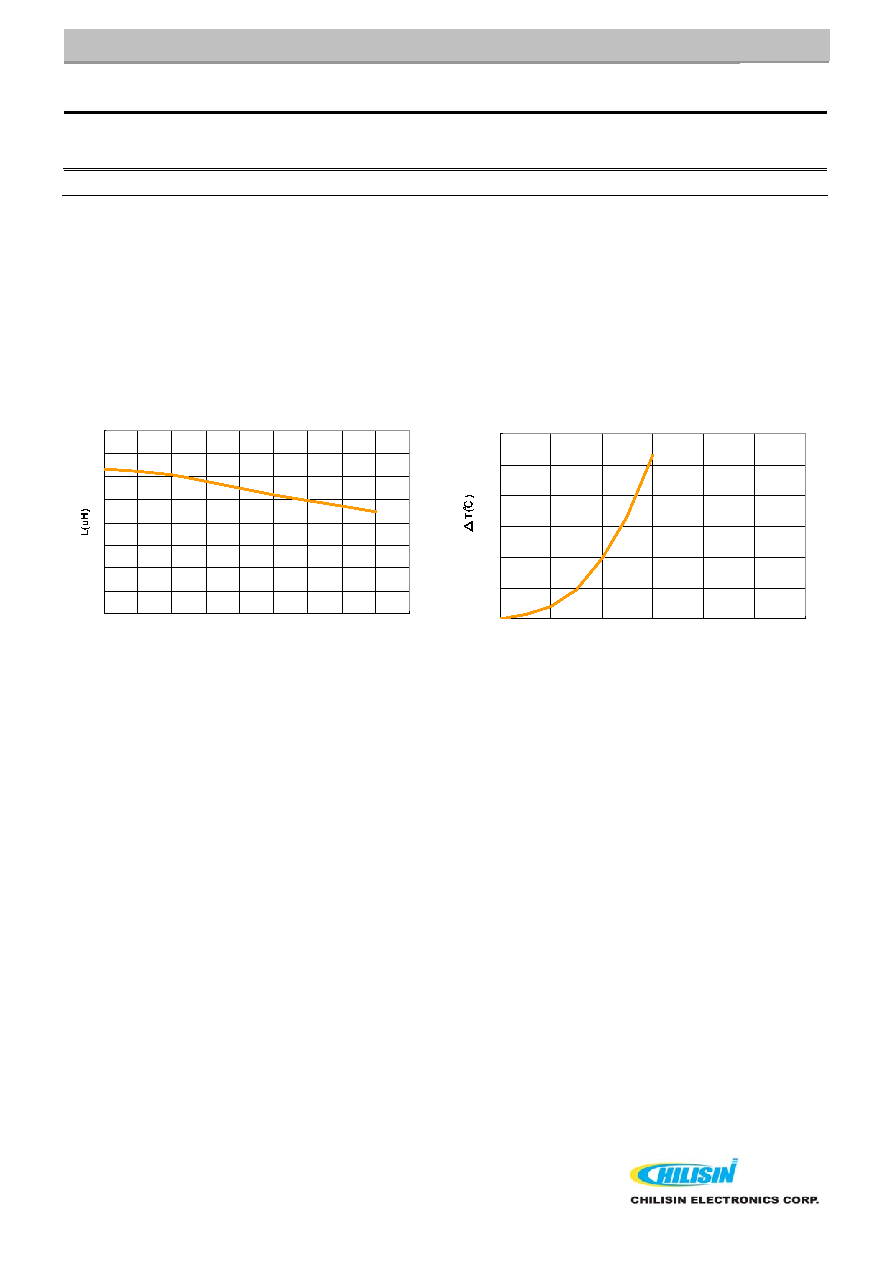

Inductance vs DC Current

0

1

2

3

4

5

6

7

8

00.5

1

1.522.5

3

3.544.5

DC Current(A)

6R8

Tem perature Change v.s DC Current

0

20

40

60

80

100

120

01

2

34

5

6

DC Current(A)

6R8
