Molding Power Choke – MHCC/MHCI Series

Electrical Characteristics

Inductance

Tolerance

Test

Frequency

Irms

Isat

RDC

Part Number

(uH)

(±%)

(MHz)

(A)Typ.

(A)Typ.

(mΩ)Max

MHCI06024-R22M-R8A

0.22

20

100

21

34

3.2

MHCI06024-R33M-R8A

0.33

20

100

18

24.5

4.1

MHCI06024-R47M-R8A

0.47

20

100

15

22

5.1

MHCI06024-1R0M-R8A

1.0

20

100

9

16

13.5

MHCI06024-1R5M-R8A

1.5

20

100

9

15

20

MHCI06024-2R2M-R8A

2.2

20

100

7

14

28

MHCI06024-4R7M-R8A

4.7

20

100

5

10

50

MHCI06024-100M-R8A

10

20

100

3.1

4.0

101

MHCI06024-150M-R8A

15

20

100

2.5

3.3

160

 Irms

DC current (A) that will cause an approximate ΔT of 40℃

 Isat

DC current (A) that will cause L to drop approximately 30%



Tolerance：M= ±20%



L : WK 3260B, 100KHz 0.5V



Rdc : CHEN HWA 502



Operating temperature range from -55℃ to 125℃. (Including self - temperature rise)

Test Instruments：

WK3260B Impedance / Material Analyzer

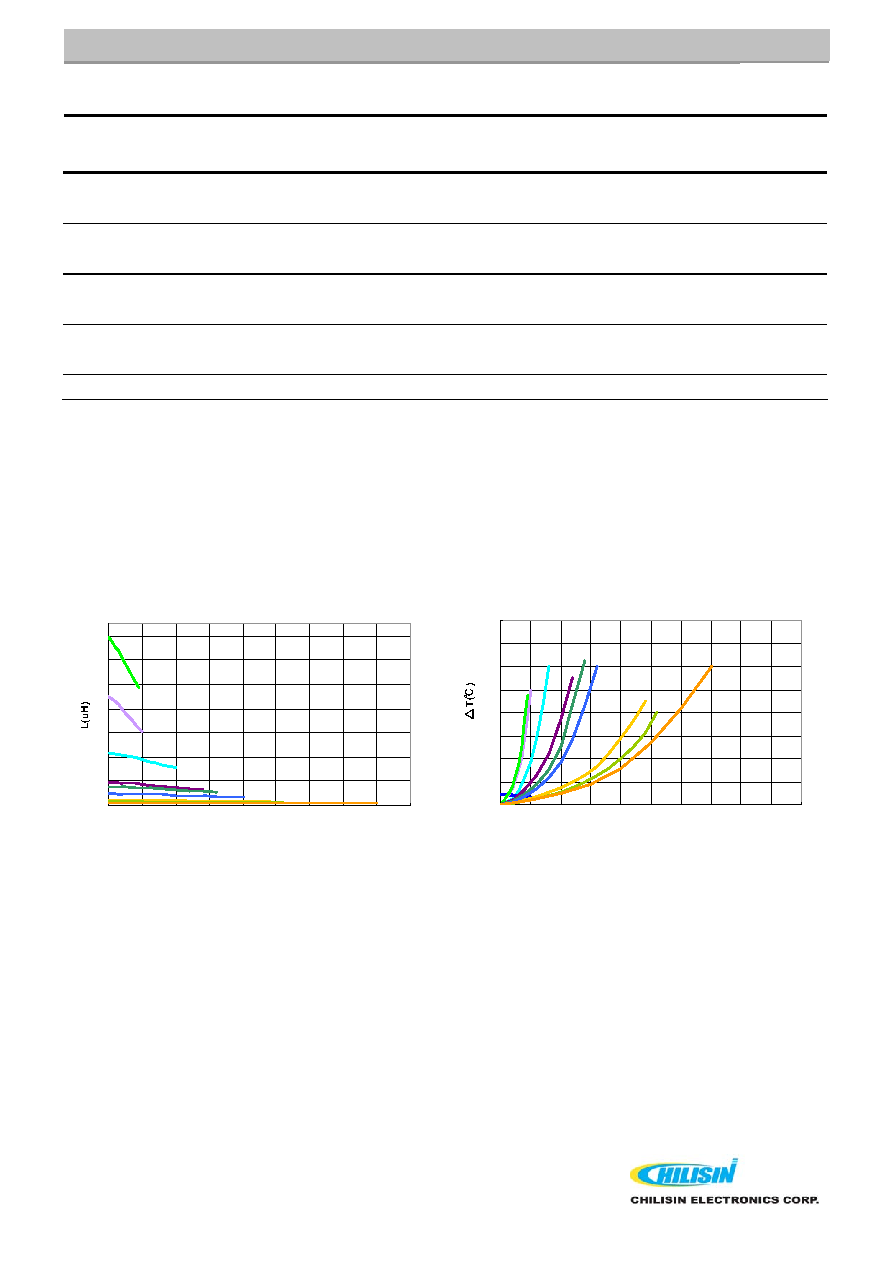

Inductance vs DC Current

0

2

4

6

8

10

12

14

0

5

10

15

20

25

30

35

40

45

DC Current(A)

R22

R33

1R0

1R5

2R2

150

100

4R7

R47

Tem perature Change v.s DC Current

0

20

40

60

80

100

120

140

160

0

5

10

15

20

25

30

35

40

45

50

DC Current(A)

R22

R33

1R0

1R5

2R2

150

R47

100

4R7
