1 / 34 page

This is information on a product in full production.

September 2013

DocID023994 Rev 3

1/34

M24C04-W M24C04-R

M24C04-F

4-Kbit serial I²C bus EEPROM

Datasheet

- production data

1. Not recommended for new designs.

Features

• Compatible with all I2C bus modes:

– 400 kHz

– 100 kHz

• Memory array:

– 4 Kbit (512 bytes) of EEPROM

– Page size: 16 bytes

• Single supply voltage:

– M24C04-W: 2.5 V to 5.5 V

– M24C04-R: 1.8 V to 5.5 V

– M24C04-F: 1.7 V to 5.5 V (full temperature

range) and 1.6 V to 1.7 V (limited

temperature range)

• Write:

– Byte Write within 5 ms

– Page Write within 5 ms

• Operating temperature range: from -40 °C up

to +85 °C

• Random and sequential Read modes

• Write protect of the whole memory array

• Enhanced ESD/Latch-Up protection

• More than 4 million Write cycles

• More than 200-year data retention

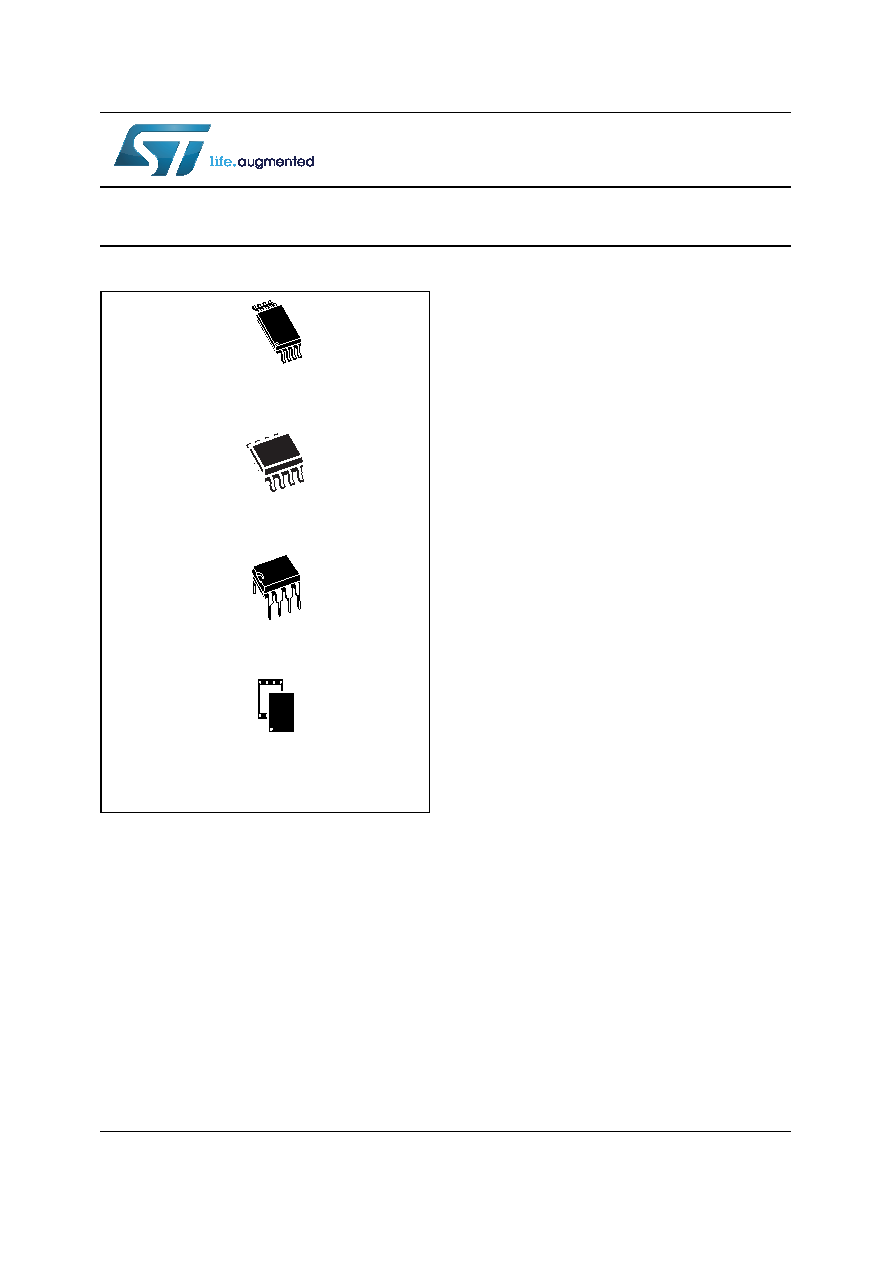

• Packages:

– RoHS compliant and halogen-free

(ECOPACK®)

PDIP8 (BN)(1)

SO8 (MN)

150 mil width

TSSOP8 (DW)

169 mil width

UFDFPN8

(MC)

www.st.com
