Description

• 125°C maximum total temperature operation

• Octagonal shape shielded drum core

• 2mm max height

• Inductance range from 1.2uH to 100uH

• Current range from 3.14 to 0.35 Amps

• Ferrite shielded, low EMI

• Ferrite core material

Applications

• Digital cameras, CD players, cellular phones, and PDAs

• PCMCIA cards

• GPS systems

Environmental Data

• Storage temperature range: -40°C to +125°C

• Operating ambient temperature range: -40°C to +125°C

(range is application specific).

• Solder reflow temperature: +260°C max. for 10 seconds

max.

Packaging

• Supplied in tape and reel packaging, 3500 per reel

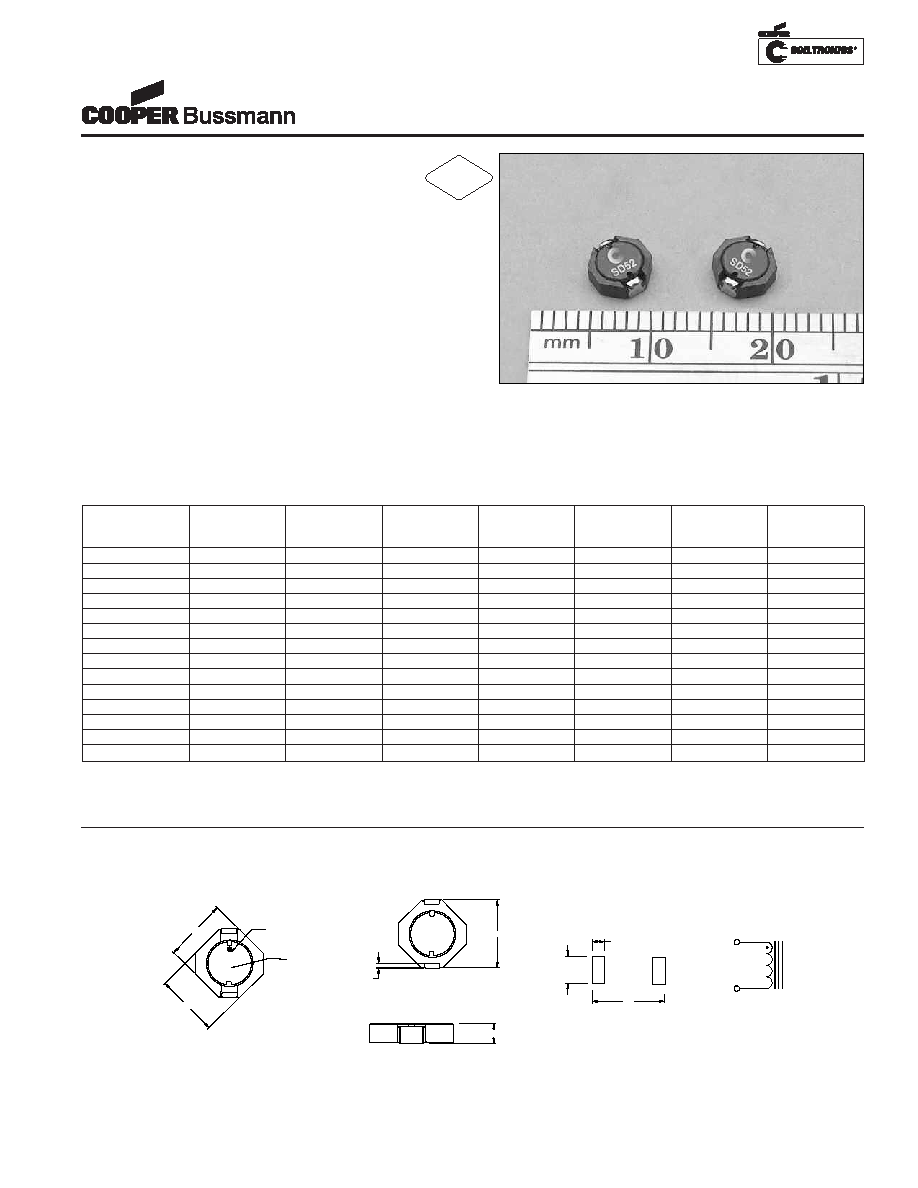

SD52 Series

High Power Density,

Low Profile, Shielded Inductors

Part Number

Rated

OCL (1)

Part

Irms (2)

Isat (3)

DCR (4)

Volt

Inductance

+/-20%

Marking

Amperes

Amperes

(

Ω)

u-sec

(µH)

(µH)

Typ.

Typ.

SD52-1R2-R

1.20

1.20

A

2.33

3.14

0.0279

1.49

SD52-2R2-R

2.20

2.20

B

1.98

2.30

0.0385

2.03

SD52-3R5-R

3.50

3.50

C

1.73

1.82

0.0503

2.57

SD52-4R7-R

4.70

4.70

D

1.63

1.64

0.0568

2.84

SD52-6R8-R

6.80

6.80

E

1.39

1.28

0.0777

3.65

SD52-100-R

10.0

10.0

F

1.11

1.11

0.1215

4.19

SD52-150-R

15.0

15.0

G

0.97

0.88

0.1618

5.27

SD52-220-R

22.0

22.0

H

0.86

0.73

0.2042

6.35

SD52-270-R

27.0

27.0

J

0.73

0.65

0.2864

7.16

SD52-330-R

33.0

33.0

K

0.70

0.61

0.3074

7.70

SD52-470-R

47.0

47.0

L

0.58

0.50

0.4465

9.32

SD52-680-R

68.0

68.0

M

0.47

0.42

0.6829

11.21

SD52-101-R

100

100

N

0.39

0.35

1.0000

13.37

SD52-151-R

150

150

O

0.31

0.28

1.6100

17.00

RECOMMENDED PCB LAYOUT

SCHEMATIC

2

1

TOP VIEW

2.0

2 plcs

6.0

1.3

2 plcs

5.2 max

5.2 max

m

Pin #1 indicator

Part marking

(See note A)

BOTTOM VIEW

2

1

SIDE VIEW

2.0 max

m

5.6 max

m

0.65

±0.10

SD52 Series

A) Part Marking: Line 1: (1st digit indicates the inductance value per part marking

designator in chart above)

(2nd digit is a bi-weekly production date code)

(3rd digit is the last digit of the year produced)

Line 2: 52 (indicates the product size code)

Mechanical Diagrams

(1) Open Circuit Inductance Test Parameters: 100KHz, 0.25Vrms, 0.0Adc.

(2) RMS current for an approximate

∆T of 40°C without core loss. It is

recommended that the temperature of the part not exceed 125°C.

(3) Peak current for approximate 30% roll off at 20°C.

(4) DCR limits @ 20°C.

5) Applied Volt-Time product (V-uS) across the inductor at 100kHz necessary to

generate a core loss equal to 10% of the total losses for 40°C temperature rise.

RoHS

2002/95/EC
