NPIS104F331MTRF 数据表(PDF) 1 Page - NIC-Components Corp. |
|
|
|||||||||||||||||||||||||||||
NPIS104F331MTRF 数据表(HTML) 1 Page - NIC-Components Corp. |
|
|

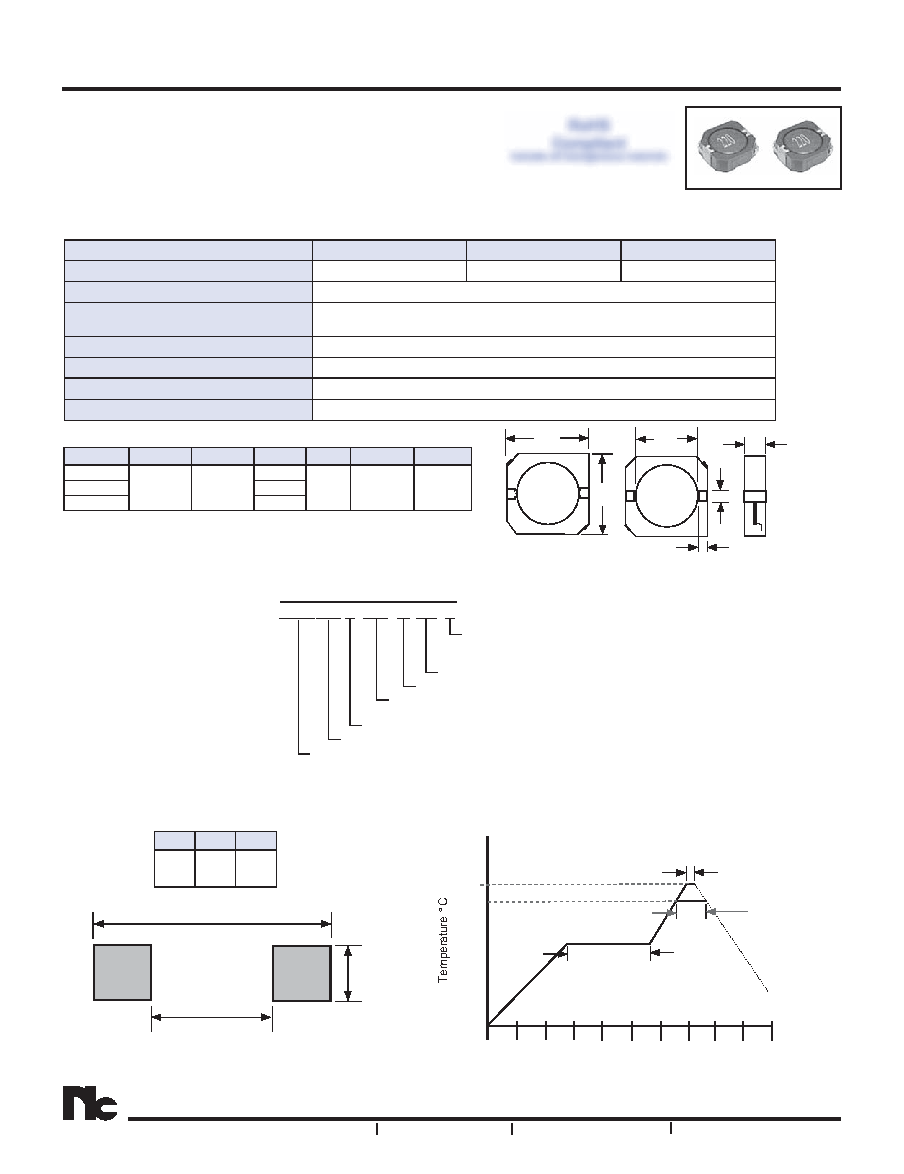

1 / 4 page  1 NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com ® Speci cations are subject to change NPIS__F Series NPIS Shielded Power Inductors NPIS 104 F 151 M TR F Termination Finish: F = Standard Pb-free (100%Sn) Packaging: TR = Tape & Reel Inductance Tolerance Code: M=±20%, Y=±30% Inductance Code ( μH): 1st two digits are signi cant, 3rd digit is multiplier. Construction Code (see drawing for details) Size Code (see table for details) Series PART NUMBER SYSTEM Series A B C D E F NPIS103F 10.6 max 10.5 max 3.0 max 3.0 ref 1.2 ± 0.15 7.7 ± 0.3 NPIS104F 4.0 max NPIS105F 5.0 max DIMENSIONS (mm) FEATURES • SHIELDED POWER INDUCTOR • SMALL SIZE WITH CURRENT RATINGS TO 13.5 AMPS • SURFACE MOUNTABLE CONSTRUCTION • HIGH INDUCTANCE (UP TO 1,000 μH) • TAPED AND REELED FOR AUTOMATIC INSERTION • FOR USE IN DC/DC CONVERTERS Case Size NPIS103F NPIS104F NPIS105F Inductance Range 0.8 ~ 150 μH 1.5 ~ 330 μH 0.8 ~ 1,000 μH Ambient Operating Temperature Range -25°C ~ +85°C Maximum Component Temperature (Ambient + Self-Heating) +125°C Temperatrue Rise at IDC +40°C max. Inductance Change at IDC -25% typical Inductance Tolerance ±20% (M) & ±30% (Y) Resistance to Solder Heat 260°C for 10 seconds CHARACTERISTICS 220 D C A B E F *See Part Number System for Details RoHS Compliant includes all homogeneous materials LG H 10.7 7.3 3.6 L G H REFLOW SOLDERING PROFILE Soldering 260°C max. 5 seconds max. Cool Down 60 ~ 120 sec. 25 50 100 150 200 250 300 Pre-Heat 150°C ~ 180°C Time above 230°C 30 seconds max. 30 60 90 120 150 180 210 240 270 300 Time - Seconds |
