DocID023965 Rev 5

13/24

LDK120

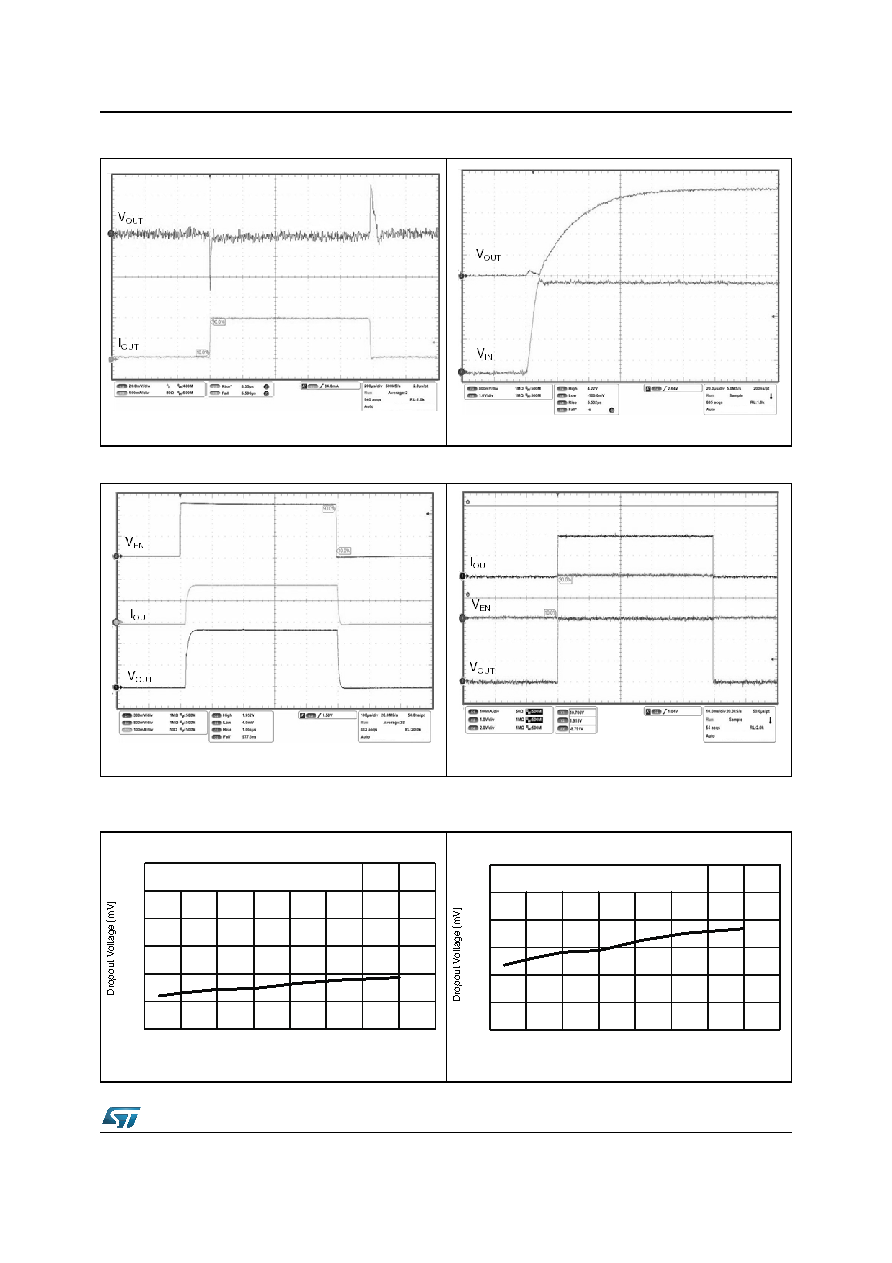

Typical performance characteristics

Figure 30. Load transient (VOUT = VADJ)

Figure 31. Startup transient

VOUT = VADJ, VIN = VEN = 3.5 V, IOUT = 1 mA to 200 mA,

COUT = 1 µF, tr = tf = 5 µs

VOUT = 3 V, VIN = VEN = 0 to 4.2 V, IOUT = 1 mA, CIN = COUT

= 1 µF, tr = tf = 5 µs

Figure 32. Enable transient (VOUT = VADJ)

Figure 33. Enable transient (VOUT = 3 V)

VOUT @ 0.8 V, VIN = 1.9, VEN = 0 to VIN, IOUT = 200 mA,

COUT = 1 µF, tr = tf = 1 µs

VIN = 4 V, VEN = 0 to VIN, IOUT = 200 mA, CIN = COUT = 1 µF,

tr = tf = 1 µs

Figure 34. Dropout voltage vs. temperature

(IOUT = 100 mA)

Figure 35. Dropout voltage vs. temperature

(IOUT = 200 mA)

AM16226v1

100

150

200

250

300

-50

-25

100

125

150

Temperature [ °C]

IN = COUT = 1 µF, IOUT = 100 mA, Fixed 3.0 V version

AM16227v1

IN = COUT = 1 µF, IOUT = 200 mA, Fixed 3.0 V version

100

150

200

250

300

-50

-25

100

125

150

Temperature [°C]
