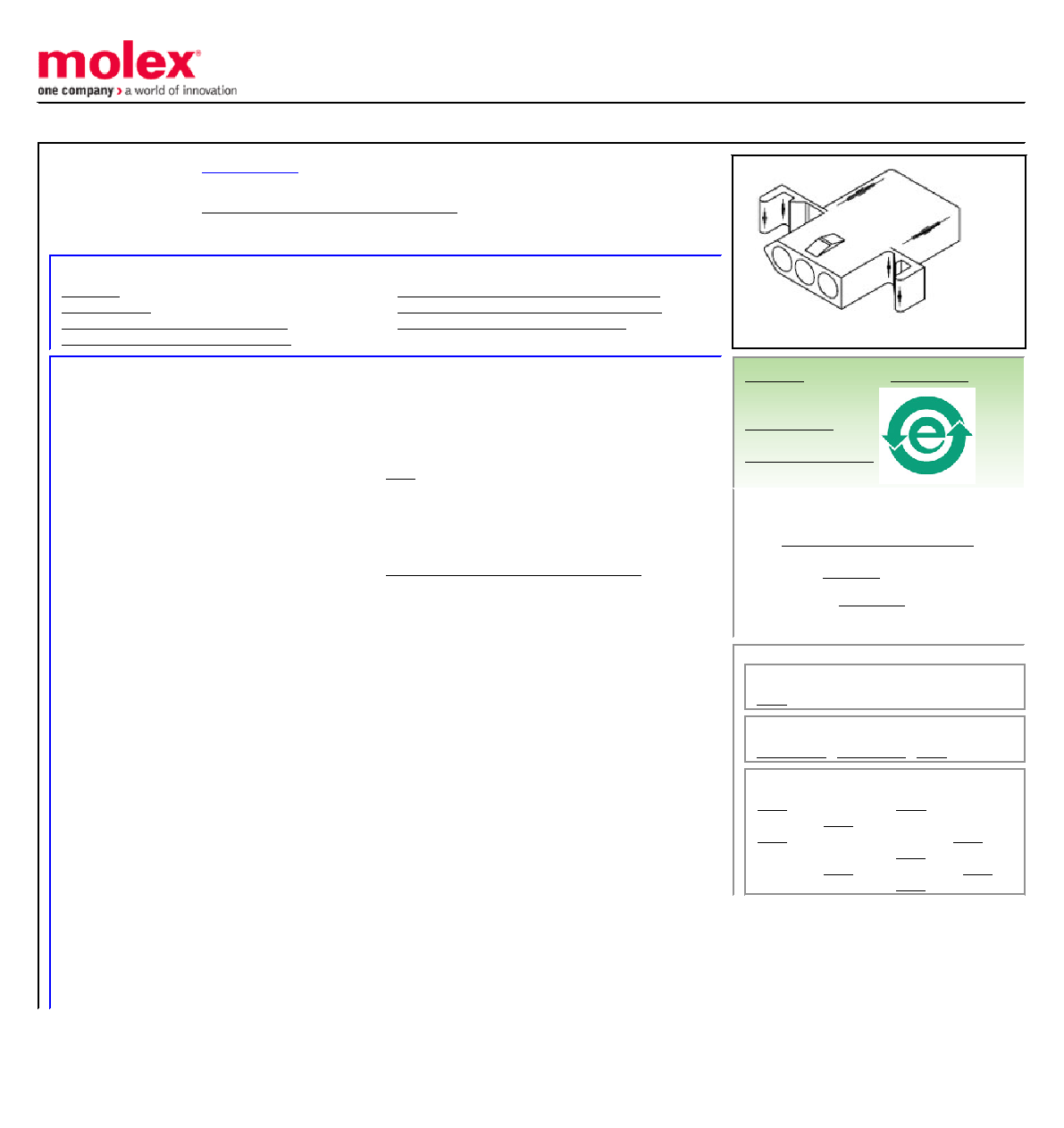

Part Number:

03-09-1031

Status:

Active

Overview:

Standard .093" Pin and Socket Connectors

Description:

2.36mm Diameter Standard .093" Pin and Socket Receptacle Housing, 3 Circuits,

Single Row

Documents:

3D Model

Product Specification PS-43660-9999 (PDF)

Drawing (PDF)

Packaging Specification PK-1396-002 (PDF)

Product Specification PS-02-09 (PDF)

RoHS Certificate of Compliance (PDF)

Product Specification PS-42477 (PDF)

Agency Certification

CSA

LR19980

UL

E29179

General

Product Family

Crimp Housings

Series

1396

Application

Power, Wire-to-Wire

Comments

Standard Panel Mount Ears; 17.0A max. can be

achieved when housing is used with 42477 or 42478

terminals

MolexKits

Yes

Overview

Standard .093" Pin and Socket Connectors

Product Name

Standard .093"

UPC

800753615069

Physical

Circuits (maximum)

3

Flammability

94V-2

Gender

Receptacle

Glow-Wire Compliant

No

Lock to Mating Part

Yes

Net Weight

1.981/g

Number of Rows

1

Packaging Type

Bag

Panel Mount

Yes

Pitch - Mating Interface

5.03mm

Stackable

No

Temperature Range - Operating

-40°C to +105°C

Electrical

Current - Maximum per Contact

14A

Material Info

Old Part Number

1396-R

Reference - Drawing Numbers

Packaging Specification

PK-1396-002

Product Specification

PS-02-09, PS-42477, PS-43660-9999

Sales Drawing

SD-1396-*, SD-1396-001

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

1396Series

Mates With

03-09-2032 , 03-09-7032 , 3099

Use With

1189 Crimp Terminals, 1190 Crimp

Terminals, 1376 Male PC Tail Terminals,

1377 Female PC Tail Terminals, 1380

Male Crimp Terminals, 1381 Female Crimp

Terminals, 1433 Crimp Terminals, 1434

Male Crimp Terminals, 1973
