Description

• High Density, high current/low voltage

applications

• Foil technology that adds higher reliability

factor over the traditional magnet wire used

for higher frequency circuit designs

• Current range from 78.0 to 33.8 Amps

• Inductance range from 0.50uH to 6.52uH

• Ferrite core material

Applications

• Next generation microprocessors

• Energy storage applications

• DC-DC converters

• Computers

Environmental Data

• Storage temperature range: -40°C to +125°C

• Operating ambient temperature range: -40°C to +85°C

• Solder reflow temperature: +260°C max. for 10 seconds

max.

Packaging

• Supplied in bulk packaging, 24 parts per tray

Part

Rated

OCL (1)

Irms (2)

Isat (3)

DCR (m

Ω)

Volts (4)

Number

Inductance

nominal

Amperes

Amperes

max. @

µSec (VµS)

µH

+/-20% µH

(Typ.)

(Typ.)

20°C

(ref.)

HC3-R50-R

0.50

0.50

78.00

120

0.42

17.33

HC3-1R0-R

1.0

1.05

78.00

78

0.42

17.33

HC3-2R2-R

2.2

2.05

55.50

60

0.70

26.01

HC3-3R3-R

3.3

3.63

42.45

46

1.20

34.65

HC3-4R7-R

4.7

4.98

33.80

38

2.17

43.30

HC3-5R6-R

5.6

5.68

33.80

34.5

2.17

43.30

HC3-6R0-R

6.0

6.52

33.80

30.0

2.17

43.30

1) Test Parameters: 300kHz, 0.25 Vrms

2) DC current for approximately

∆T of 40°C without core loss

De-rating is necessary for AC currents. PCB layout, trace thickness and width,

air flow and proximity of other heat generating components will affect temperature

rise. It is recommended that the temperature of the part not exceed 125°C under

worst case conditions verified in the end application.

3) Peak current for approximately 30% rolloff (@20°C)

4) Applied Volt-Time product (V-µS) across the inductor. This value represents the

applied V-µS at 300kHz necessary to generate a core loss equal to 10% of the

total losses for a 40°C temperature rise.

Part number definition:

HC3-XXX-R

HC3 = Product code and size

XXX = Inductance value in uH.

R = Decimal point. If no R is present, third character = #of zeros

-R suffix indicates RoHS compliant

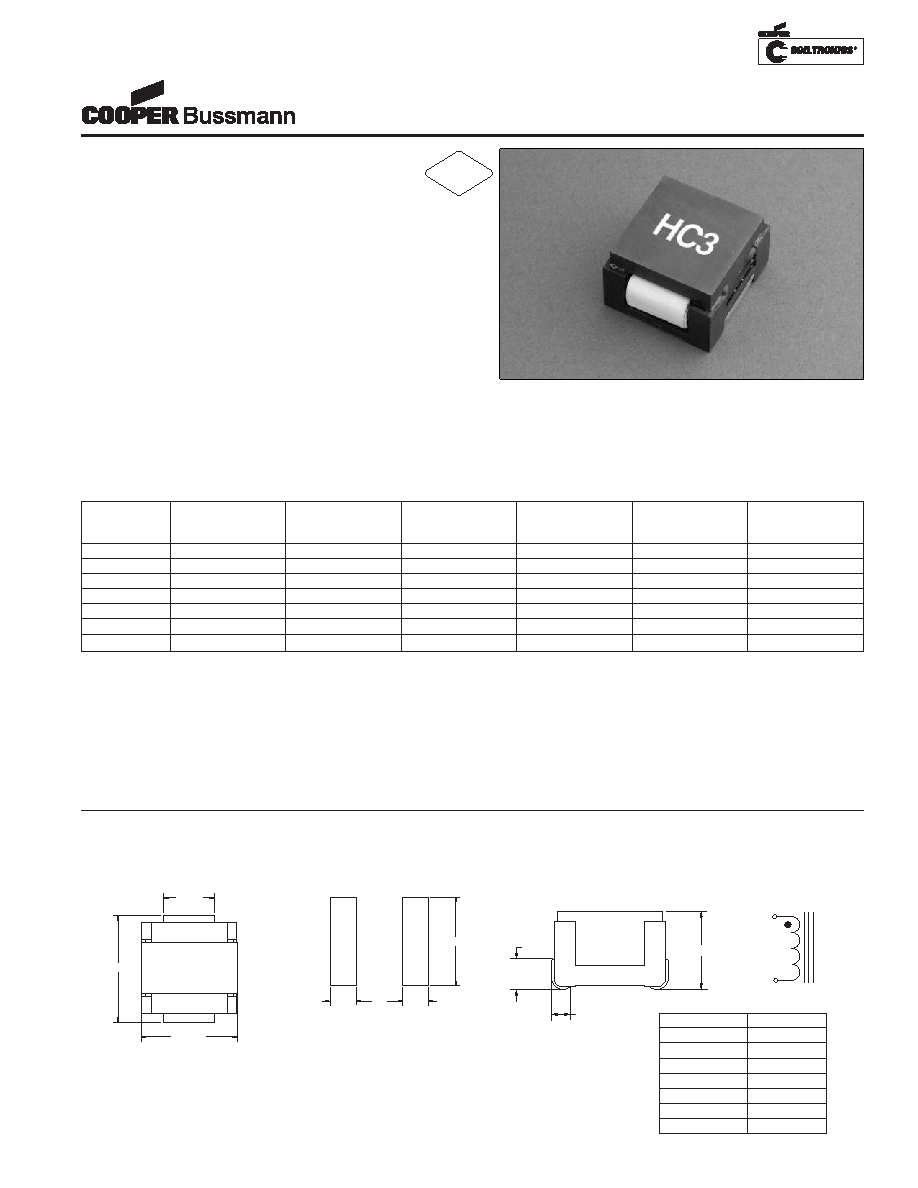

HC3 Series

HIGH CURRENT 3

Power Inductors

Mechanical Diagrams

1

2

HC3

wwllyy R

14.5 typ

25.3 max

30.0 max

22.0

19.0

5.50

5.50

3.0 typ

4.0 typ

HT max

TOP VIEW

RECOMMENDED

PCB PAD LAYOUT

FRONT VIEW

SCHEMATIC

Part Number

Height max

HC3-R50-R

18.0

HC3-1R0-R

17.5

HC3-2R2-R

17.5

HC3-3R3-R

17.5

HC3-4R7-R

17.5

HC3-5R6-R

17.5

HC3-6R0-R

17.5

wwllyy = Date code R = Revision level

RoHS

2002/95/EC
