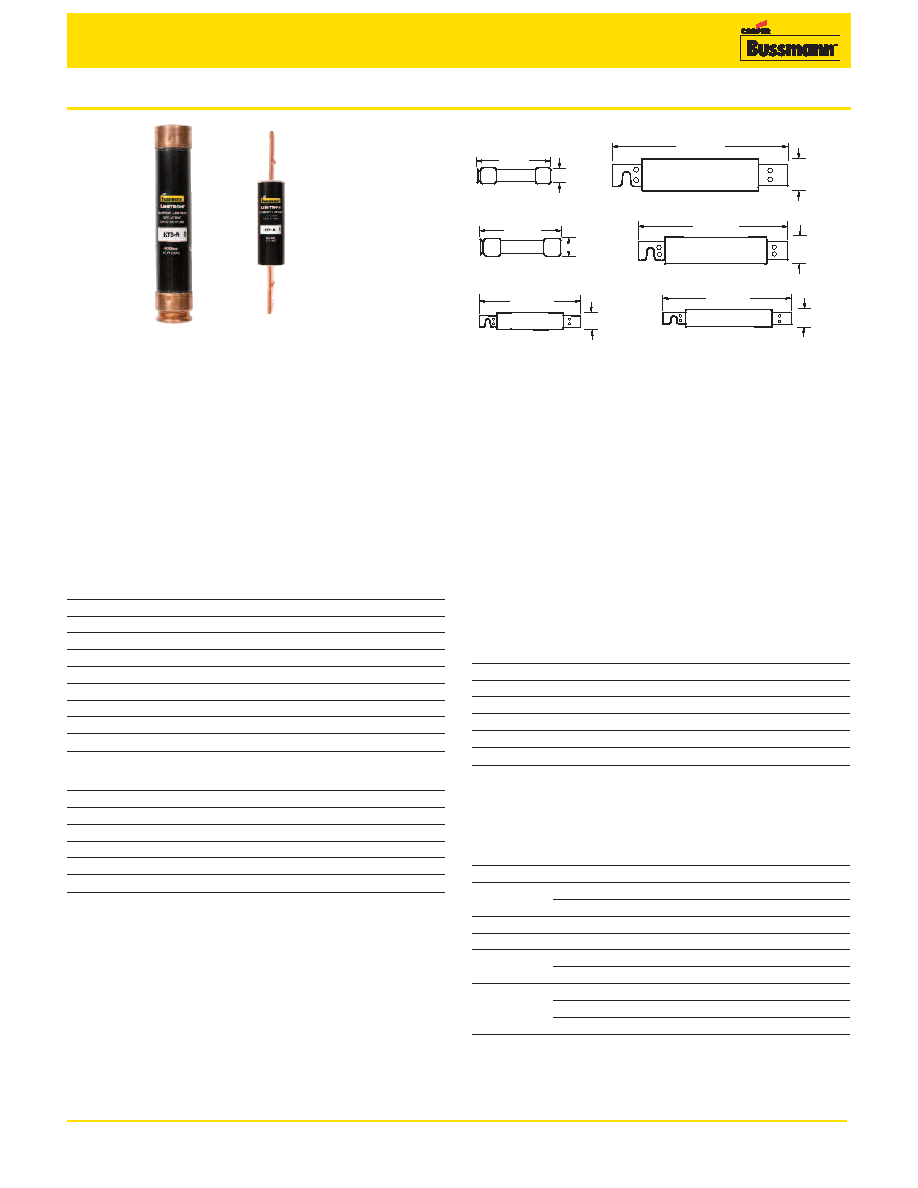

Data Sheet # 1044

KTS-R — 600Vac, 1-600A, Fast-Acting Fuses

Description: Advanced protection Class RK1 current-limiting,

fast-acting fuses.

Catalog Symbol: KTS-R-(amp)

Ratings:

Volts — 600Vac

Amps — 1-600A

IR — 200kA Vac RMS Sym.

Agency Information:

CE, UL Listed, Std. 248-12, Class RK1, Guide JDDZ,

File E4273

CSA Certified, C22.2 No. 248.12, Class 1422-02, File 53787

Catalog Numbers (amps)

KTS-R-1

KTS-R-20

KTS-R-80

KTS-R-275

KTS-R-2

KTS-R-25

KTS-R-90

KTS-R-300

KTS-R-3

KTS-R-30

KTS-R-100

KTS-R-350

KTS-R-4

KTS-R-35

KTS-R-110

KTS-R-400

KTS-R-5

KTS-R-40

KTS-R-125

KTS-R-450

KTS-R-6

KTS-R-45

KTS-R-150

KTS-R-500

KTS-R-8

KTS-R-50

KTS-R-175

KTS-R-600

KTS-R-10

KTS-R-60

KTS-R-200

KTS-R-12

KTS-R-70

KTS-R-225

KTS-R-15

KTS-R-75

KTS-R-250

Carton Quantity and Weight

Amp Rating

Carton Qty.

1–30

10

40–60

10

70–100

1

110–200

1

225–400

1

450–600

1

Dimensions – in

Features:

• Single-element, fast-acting fuses with minimal time-delay

• Provides a high degree of short-circuit current-limitation

(component protection)

• Particularly suited for circuits and loads with no heavy surge

currents of motors, transformers, solenoids, and welders

• Commonly used to protect circuit breakers with lower inter-

rupting ratings.

• If used in circuits with surge currents (motors, etc.) must be

sized to prevent unwanted opening. It is recommended to

use an ultimate protection Low-Peak™ LPS-RK time-delay

fuse for inductive load applications.

• Incorporate Class R rejection feature. Can be inserted in

non-rejection type fuse holders to physically and electrically

replace fast-acting Class H, K1, K5, RK5, and other fast-

acting fuses.

Recommended Fuse Blocks

Fuse Amps

1-Pole

2-Pole

3-Pole

0-30

R60030-1

R60030-2

R60030-3

35-60

R60060-1

R60060-2

R60060-3

70-100

RM60100-1CR

RM60100-2CR

RM60100-3CR

110-200

RM60200-1CR

RM60200-2CR

RM60200-3CR

225-400

RM60400-1CR

RM60400-2CR

RM60400-3CR

450-600

RM60600-1CR

RM60600-2CR

RM60100-3CR

For additional information on 600 volt fuse blocks, see Data

Sheet # 1111 (1-60A) and product brochure # 3192 (70-600A).

Fuse Reducers For Class R Fuses

Equipment

Desired Fuse

Catalog Numbers

Fuse Clips

(Case) Size

(Pairs)

60A

30A

NO.663-R

100A

30A

NO.216-R

60A

NO.616-R

200A

60A

NO.626-R

200A

100A

NO.2621-R

400A

100A

NO.2641-R

200A

NO.642-R

100A

NO.2661-R

600A

200A

NO.2662-R

400A

† Single reducer only (pair not required).

For additional information on Class R fuse reducers, see

Data Sheet # 1118.

1/10 to 30A

0.81" (± 0.008)

5"

(± 0.31)

1.0" (± 0.008)

70 to 100A

7.88"

(± 0.062)

35 to 60A

1.06" (± 0.008)

5.5"

(± 0.31)

450 to 600A

13.38"

(± 0.094)

1.5" (± 0.008)

2.0" (± 0.008)

2.5" (± 0.008)

110 to 200A

9.63"

(± 0.062)

225 to 400A

11.63"

(± 0.094)
