TITLE

SCALE

DATE

DR

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

SHEET

OF

REV

PCR NO

DESCRIPTION

DATE

BY

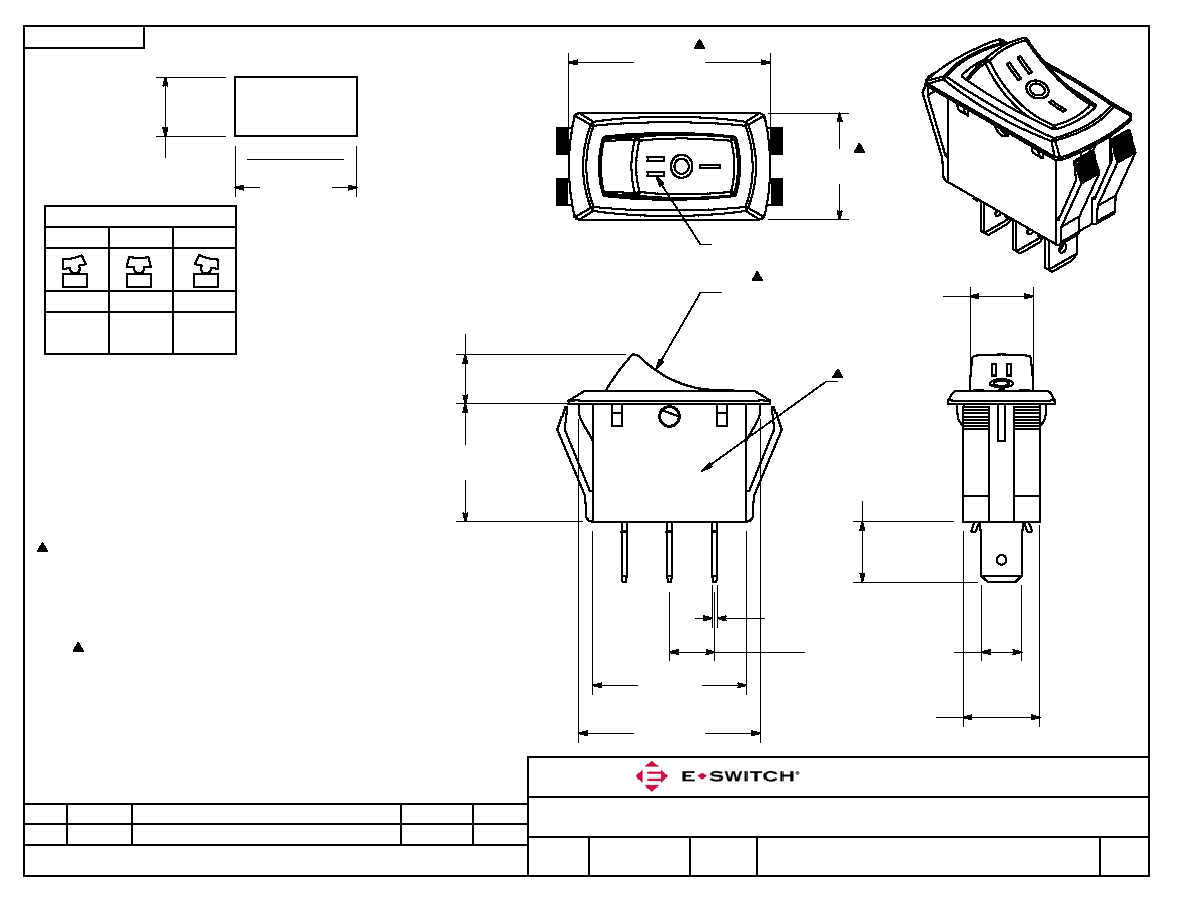

RSC145D142S

4/10/2013

38-RSC145D142S

A

EBP

1

1

PANEL CUT-OUT

A

21099

New Release

4/10/13

EBP

NOTES:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERM. NOS. FOR REF. ONLY

4. RATING: 20A @125VAC;

16A @250VAC.

5. ELECTRICAL LIFE: 10,000 CYCLES MIN.

6. CONTACT RESISTANCE: 20 Milli-OHMS MAX.

7. OPERATING TEMP: -20°C TO 85°C

8. DIELECTRIC STRENGTH: >1,000V AC 1MIN

9. LAMP VOLTAGE: NONE

10.

DENOTES CRITICAL PARAMETER.

11. 2002/95/EC (ROHS) COMPLIANT.

POS. 1

POS. 2

POS. 3

SWITCH FUNCTION

OFF

ON

ON

2-3

OPEN

2-1

28.60

[1.126 in]

13.90

[.547 in]

7.70

[.303 in]

18.50

[.728 in]

9.50

[.374 in]

6.30

[.248 in]

7.10

[.280 in]

.80

[.031 in]

16.70

[.657 in]

31.50

[1.240 in]

9.90

[.390 in]

28.40

[1.118 in]

24.05

[.947 in]

12.00

[.472 in]

GREY ACTUATOR

BLACK

HOUSING

1

2

3

WHITE MARKING
