DocID024346 Rev 1
31/42
LED2001
Application information

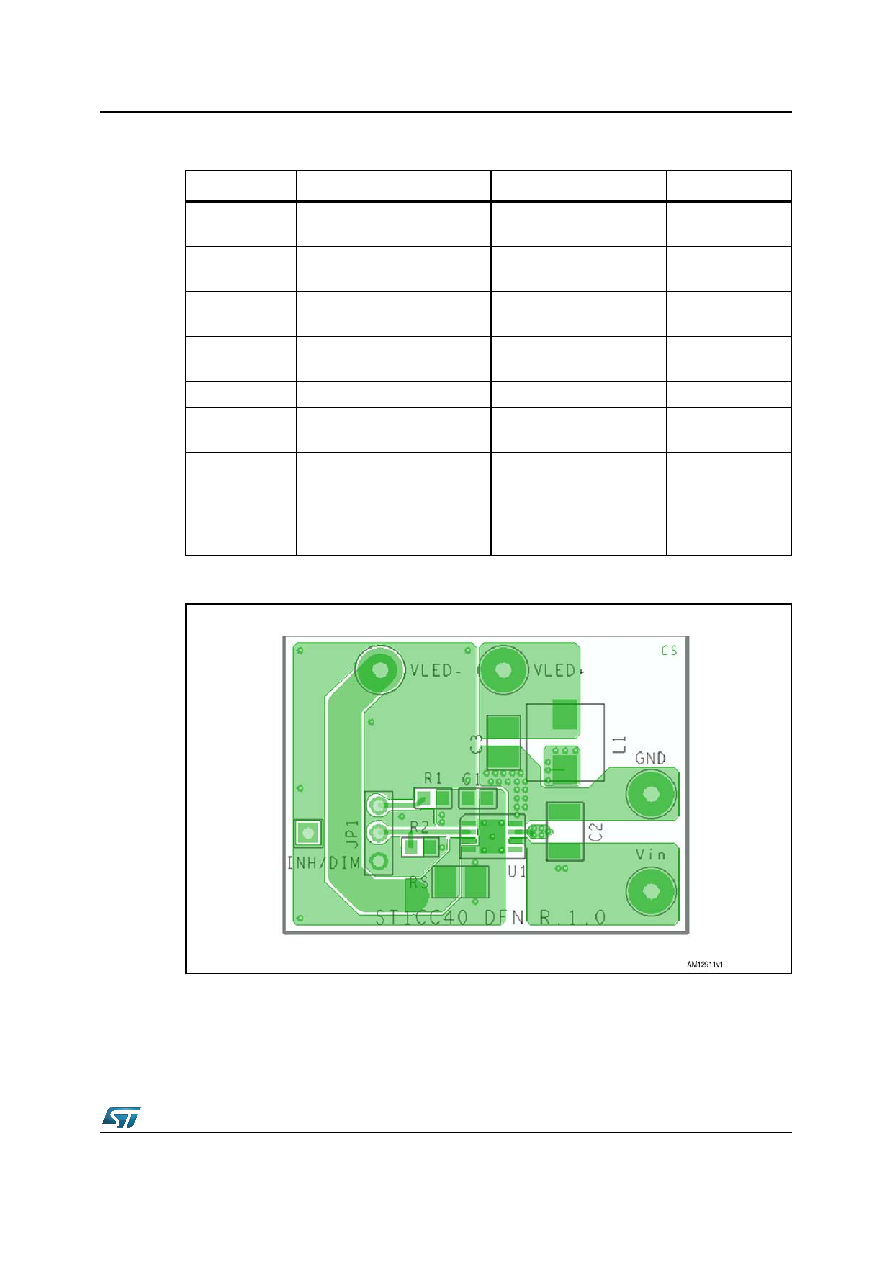

Figure 20. PCB layout (component side) DFN package
Table 8. Component list
Reference
Part number
Description
Manufacturer
C1
1
μF 25 V
(size 0805)
C2
GRM31CR61E226KE15L
22
μF 25 V
(size 1206)
Murata
C3
GRM21BR71E475KA73L
4.7
μF 25 V
(size 0805)
Murata
R1
4.7 K
Ω 5%
(size 0603)
R2
Not mounted
Rs
ERJ14BSFR15U
0.15
Ω 1%
(size 1206)
Panasonic
L1
XAL6030-332MEB
3.3
μH
ISAT = 8.4 A
(20% drop) IRMS = 7.3 A
(40
°C rise)
(size 6.36 x 6.56 x 6.1 mm)
Coilcraft
