0114

BU-SB14042

Page 1 of 4

Data Sheet # 1014

LIMITRON™ Class CC

FNQ-R — 600Vac, 1⁄4-30A, Time-Delay Fuses

Description: Advanced protection Class CC current-limiting,

time-delay fuses.

Catalog Symbol: FNQ-R-(amp)

Ratings:

Volts — 600Vac

— 300Vdc (15 & 20A)

Amps — 1⁄4-30A

IR — 200kA Vac RMS Sym.

— 20kA Vdc (15 & 20A)

Agency Information:

CE, UL Listed, Std. 248-4, Class CC, Guide JDDZ, File E4273

CSA Certified, Class CC CSA, Class 1422-01,

File 53787–HRC-MISC

RoHS Compliant*

* FNQ-R-1⁄4 not RoHS complaint.

Catalog Numbers (amps)

FNQ-R-1⁄4

FNQ-R-13⁄10

FNQ-R-32⁄10

FNQ-R-8

FNQ-R-3⁄10

FNQ-R-14⁄10

FNQ-R-31⁄2

FNQ-R-9

FNQ-R-4⁄10

FNQ-R-11⁄2

FNQ-R-4

FNQ-R-10

FNQ-R-1⁄2

FNQ-R-16⁄10

FNQ-R-41⁄2

FNQ-R-12

FNQ-R-6⁄10

FNQ-R-18⁄10

FNQ-R-5

FNQ-R-15

FNQ-R-3⁄4

FNQ-R-2

FNQ-R-56⁄10

FNQ-R-171⁄2

FNQ-R-8⁄10

FNQ-R-21⁄4

FNQ-R-6

FNQ-R-20

FNQ-R-1

FNQ-R-21⁄2

FNQ-R-61⁄4

FNQ-R-25

FNQ-R-11⁄8

FNQ-R-28⁄10

FNQ-R-7

FNQ-R-30

FNQ-R-11⁄4

FNQ-R-3

FNQ-R-71⁄2

Carton Quantity:

Amp Rating

Carton Qty.

1

⁄4-30

10

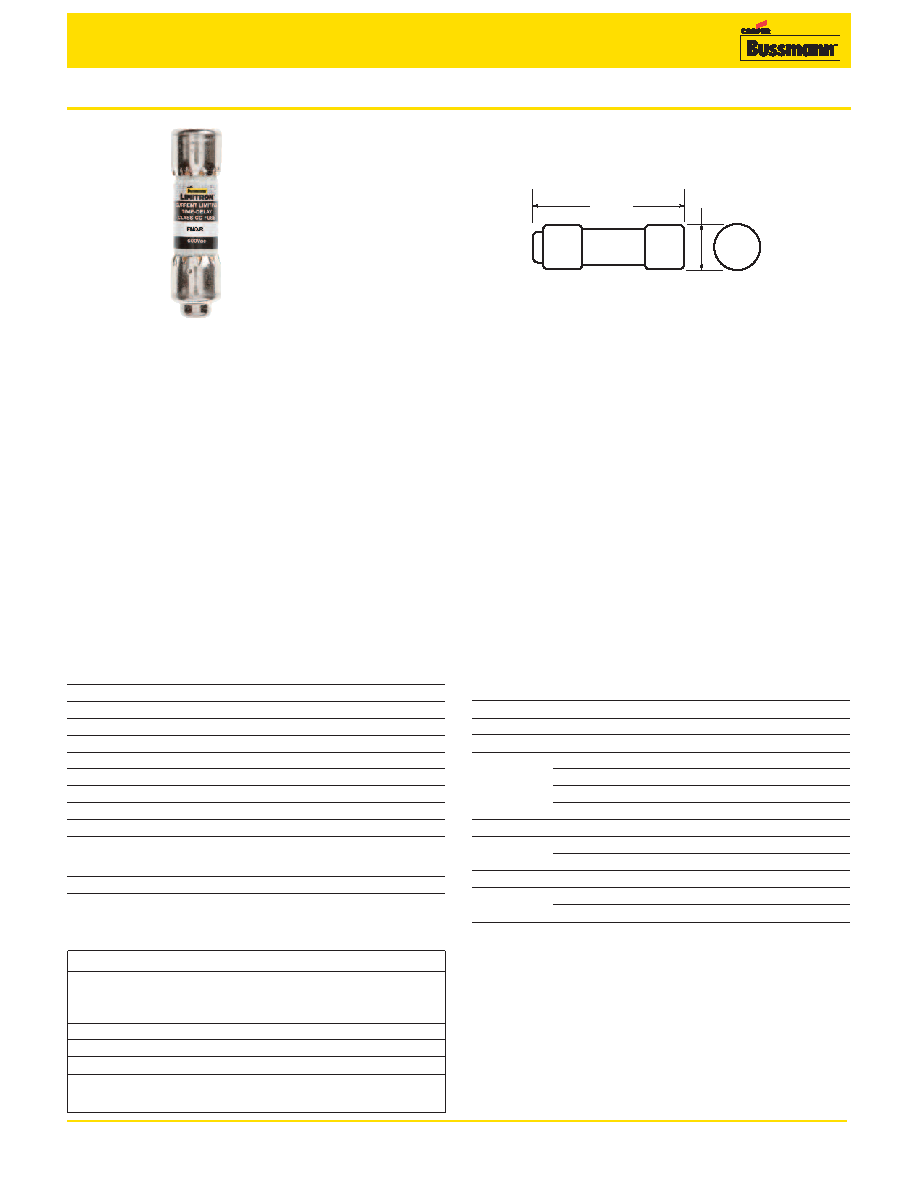

Dimensions - in

Features:

• Provides 10X better current limitation to help prevent

equipment damage caused by short-circuit events.

• 200kA interrupting rating complies with NEC® Section 110.9

for today's large capacity systems.

• Fast-acting fuse helps prevent equipment damage caused

by short-circuit events.

• Rejection type fuse fits both standard and rejection-style

holders.

• The Class CC FNQ-R Limitron fuse meets the needs of

control circuit transformer protection.

• FNQ-R fuses can be sized according to NEC® and UL

requirements and still allow the high inrush currents, with

significantly more time-delay than the UL minimum value of

12 seconds at 200% for Class CC fuses.

• Ideal for critical industrial or commercial applications that

have specific current limitation requirements.

Applications:

• Branch Circuits

• Line Protection

• Small Control Transformers

• Industrial Control

Recommended Fuse Blocks and Holders

Fuse Amps

1-Pole

2-Pole

3-Pole

Open Blocks

0-30

BC6031_

BC6032_

BC6033_

DIN-Rail Holders

CHCC1D_

CHCC2D_

CHCC3D_

0-30

——

OPM-NG-_

——

OPM-1038_

——

OPM-1038_SW

Panel Mount Holders

0-30

HPS

——

HPF

——

In-Line Holders

0-30

—

HEY

—

HEZ

——

For additional information on Class CC fuse blocks and

holders, see Data Sheets:

• Open Blocks # 1105 (BC Series)

• DIN-Rail Holders # 3185 (CHCC), # 1109 (OPM),

# 1102 (OPM-1038), 1103 (OPM-1038_SW),

• Panel Mount Holders # 2113 (HPS), # 2114 (HPF)

• In-Line Holders # 2126 (HEY), # 2130 (HEZ)

1.5" (± 0.031)

(38.1mm)

0.41" (± 0.005)

(10.3mm)

Maximum Acceptable Rating of Overcurrent Device†

Maximum Rating of Overcurrent

Rated Primary

Protective Device Expressed As a Percent

Current (Amps)

of Transformer Primary Current Rating

< 2A

500††

2A to 9A

167

> 9A

125

† UL 508A Table 42.1.

†† 300% for other than motor control applications.
