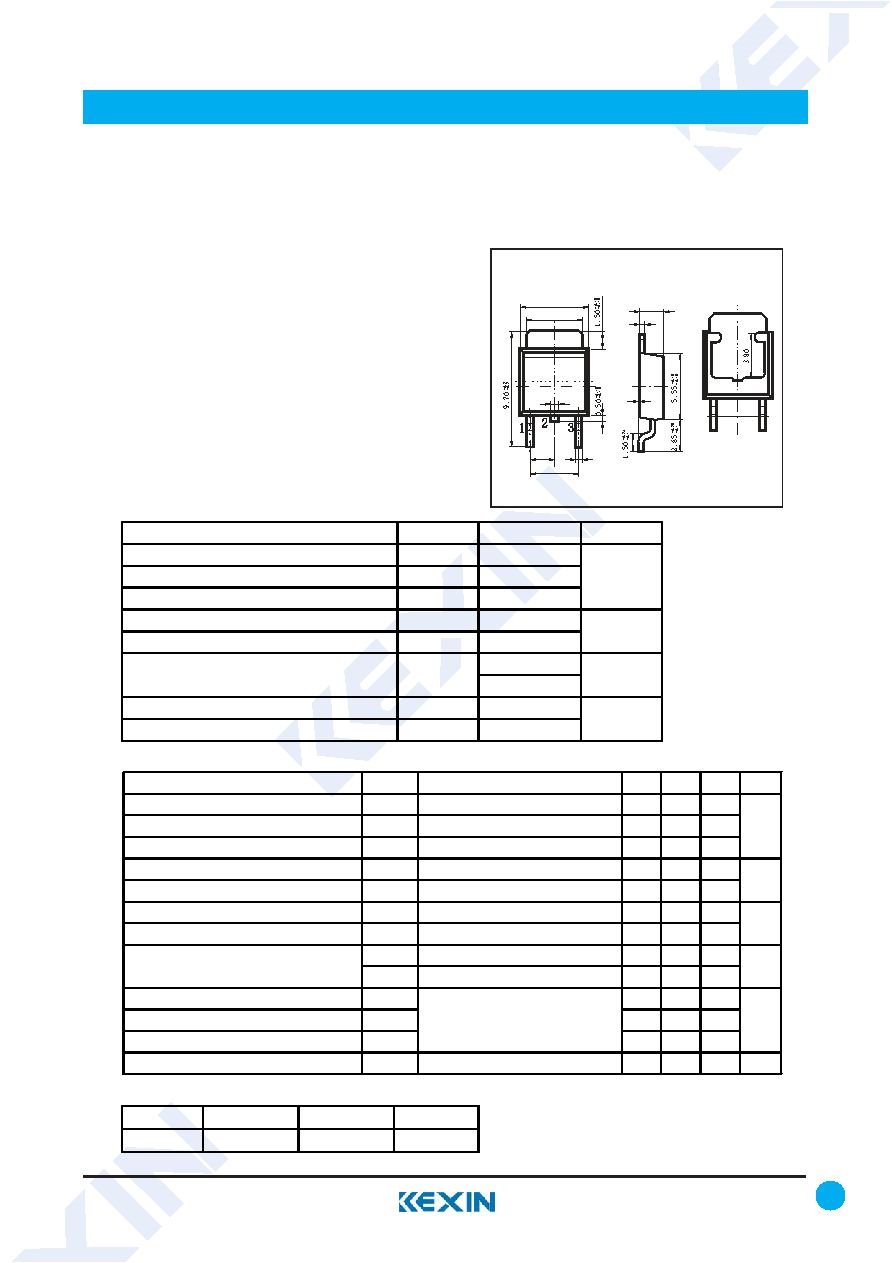

SMD Type

www.kexin.com.cn

1

Transistors

NPN Transistors

2SD1254

■

Features

●

High forward current transfer ratio hFE

which has satisfactory linearity

●

Low collector to emitter saturation voltage VCE(sat)

●

Large collector current IC

●

Complementary to 2SB931

2.3

0.60+ 0.1

- 0.1

6.50+0.15

-0.15

0.80+0.1

-0.1

4 .60 +0.15

-0.15

5.30+0.2

-0.2

2.30 +0.1

-0.1

0.50 +0.8

-0.7

0.127

max

TO-252

Unit: mm

1 Base

2 Collector

3 Emitter

■

Absolute Maximum Ratings Ta = 25℃

Parameter

Symbol

Rating

Unit

Collector - Base Voltage

VCBO

130

Collector - Emitter Voltage

VCEO

80

Emitter - Base Voltage

VEBO

7

Collector Current - Continuous

IC

3

Collector Current - Pulse

ICP

6

Collector Power Dissipation

Tc = 25℃

30

Ta = 25℃

1.3

Junction Temperature

TJ

150

Storage Temperature Range

Tstg

-55 to 150

V

℃

A

PC

W

■

Electrical Characteristics Ta = 25℃

Parameter

Symbol

Test Conditions

Min

Typ

Max

Unit

Collector- base breakdown voltage

VCBO

Ic= 100 μA， IE= 0

130

Collector- emitter breakdown voltage

VCEO

Ic= 10 mA， IB= 0

80

Emitter - base breakdown voltage

VEBO

IE= 100μA， IC= 0

7

Collector-base cut-off current

ICBO

VCB= 100 V , IE= 0

10

Emitter cut-off current

IEBO

VEB= 5V , IC=0

50

Collector-emitter saturation voltage

VCE(sat) IC=2 A, IB=100mA

0.5

Base - emitter saturation voltage

VBE(sat) IC=2 A, IB=100mA

1.5

hFE(1)

VCE= 2V, IC= 100mA

45

hFE(2)

VCE= 2V, IC= 500mA

60

260

Turn-on time

ton

0.5

Storage time

tstg

2.5

Fall time

tf

0.15

Transition frequency

fT

VCE= 10V, IC= 500mA,f=10MHz

30

MHz

IC = 0.5A, IB1 = 50mA, IB2 = – 50mA,

VCC = 50V

us

DC current gain

V

uA

■

Classification of hfe(2)

Type

2SD1254-R

2SD1254-Q

2SD1254-P

Range

60-120

90-180

130-260
