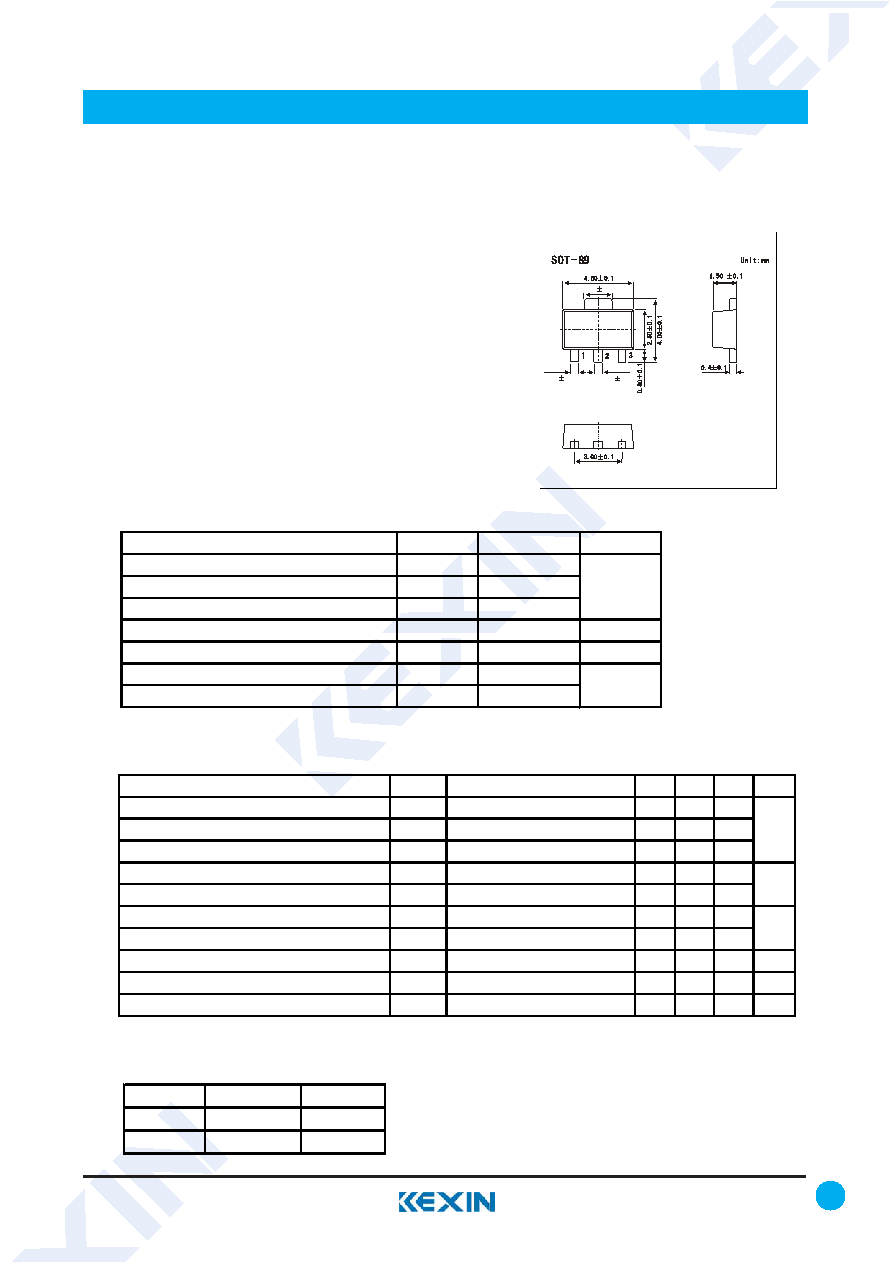

SMD Type

www.kexin.com.cn

1

Transistors

NPN Transistors

2SD2098

■

Features

●

Excellent DC current gain characteristics

●

Complements the 2SB1386

1.Base

2.Collector

3.Emitter

1.70 0.1

0.42 0.1

0.46 0.1

■

Absolute Maximum Ratings Ta = 25℃

Parameter

Symbol

Rating

Unit

Collector - Base Voltage

VCBO

50

Collector - Emitter Voltage

VCEO

20

Emitter - Base Voltage

VEBO

6

Collector Current - Continuous

IC

5

A

Collector Power Dissipation

PC

0.5

W

Junction Temperature

TJ

150

Storage Temperature Range

Tstg

-55 to 150

V

℃

■

Electrical Characteristics Ta = 25℃

Parameter

Symbol

Test Conditions

Min

Typ

Max

Unit

Collector- base breakdown voltage

VCBO

Ic= 100 μA， IE= 0

50

Collector- emitter breakdown voltage

VCEO

Ic= 1 mA， IB= 0

20

Emitter - base breakdown voltage

VEBO

IE= 100μA， IC= 0

6

Collector-base cut-off current

ICBO

VCB= 40 V , IE= 0

0.5

Emitter cut-off current

IEBO

VEB= 5V , IC=0

0.5

Collector-emitter saturation voltage

VCE(sat) IC=4 A, IB=100 mA

1

Base - emitter saturation voltage

VBE(sat) IC=4 A, IB=100 mA

1.2

DC current gain

hFE

VCE= 2V, IC= 500 mA

120

390

Collector output capacitance

Cob

VCB= 20V, IE= 0,f=1MHz

30

pF

Transition frequency

fT

VCE= 6V, IC= 50mA,f=100MHz

150

MHz

V

uA

■

Classification of hfe

Type

2SD2098-Q

2SD2098-R

Range

120-270

180-390

Marking

AH Q*

AH R*
