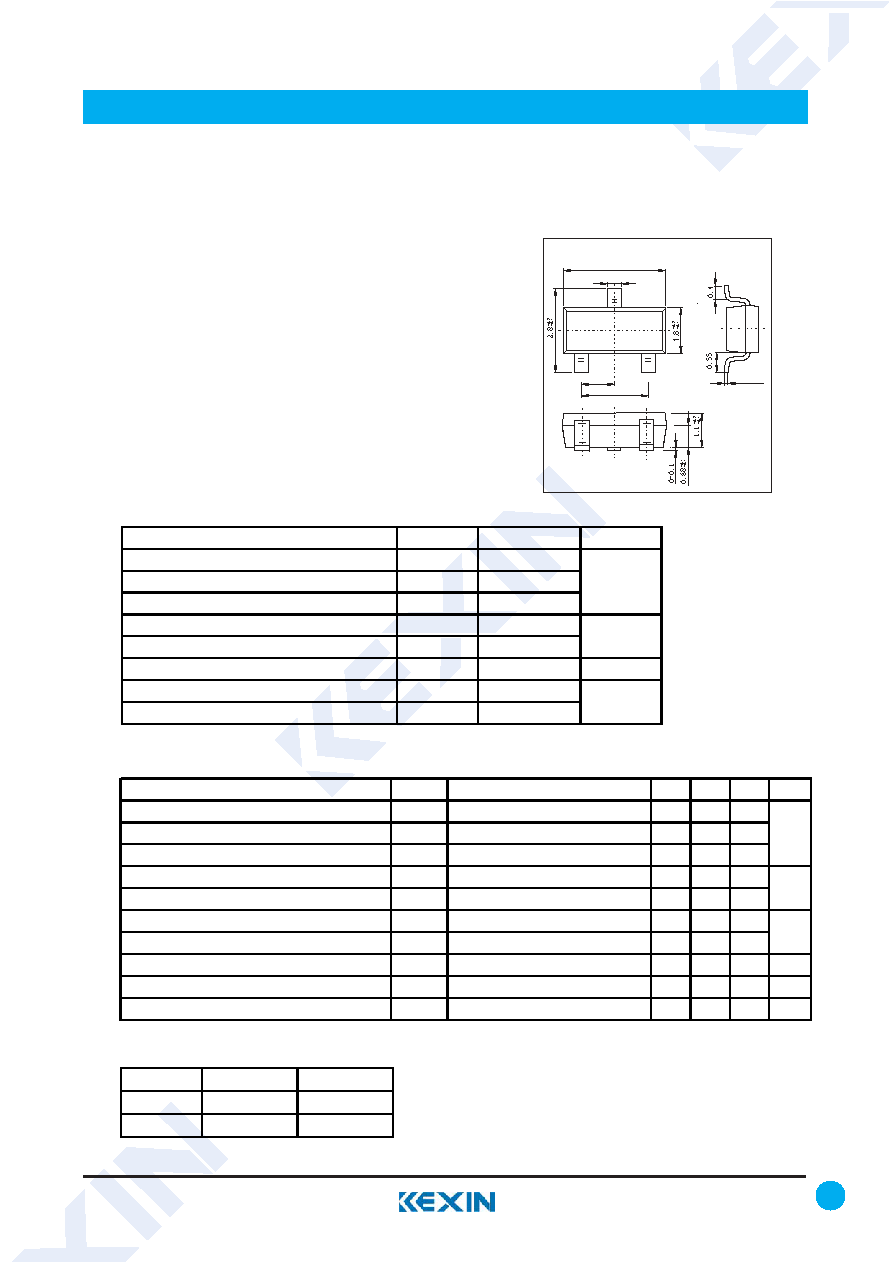

SMD Type

www.kexin.com.cn

1

Transistors

NPN Transistors

2SC3906K

■

Features

●

High Breakdown Voltage

●

Complementary to 2SA1514K

■

Absolute Maximum Ratings Ta = 25℃

Parameter

Symbol

Rating

Unit

Collector - Base Voltage

VCBO

120

Collector - Emitter Voltage

VCEO

120

Emitter - Base Voltage

VEBO

5

Collector Current - Continuous

IC

50

Collector Current - Pulse

ICP

100

Collector Power Dissipation

PC

200

mW

Junction Temperature

TJ

150

Storage Temperature Range

Tstg

-55 to 150

V

℃

mA

■

Electrical Characteristics Ta = 25℃

Parameter

Symbol

Test Conditions

Min

Typ

Max

Unit

Collector- base breakdown voltage

VCBO

Ic= 50 uA， IE= 0

120

Collector- emitter breakdown voltage

VCEO

Ic= 1 mA， IB= 0

120

Emitter - base breakdown voltage

VEBO

IE= 50 μA， IC= 0

5

Collector-base cut-off current

ICBO

VCB= 100V , IE= 0

0.5

Emitter cut-off current

IEBO

VEB= 4V , IC=0

0.5

Collector-emitter saturation voltage

VCE(sat) IC=10 mA, IB=1mA

0.5

Base - emitter saturation voltage

VBE(sat) IC=10 mA, IB=1mA

1.2

DC current gain

hFE

VCE= 6V, IC= 2mA

180

560

Collector output capacitance

Cob

VCB= 12V, IE= 0,f=1MHz

2.5

pF

Transition frequency

fT

VCE= 12V, IE= -2mA,f=1MHz

140

MHz

V

uA

V

■

Classification of hfe

Type

2SC3906K-R

2SC3906K-S

Range

180-390

270-560

Marking

TR

TS

0.4 +0.1

-0.1

2.9 +0.2

-0.1

0.95 +0.1

-0.1

1.9 +0.1

-0.2

1

2

3

Unit: mm

SOT-23-3

1. Base

2. Emitter

3. Collector

0.15 +0.02

-0.02
