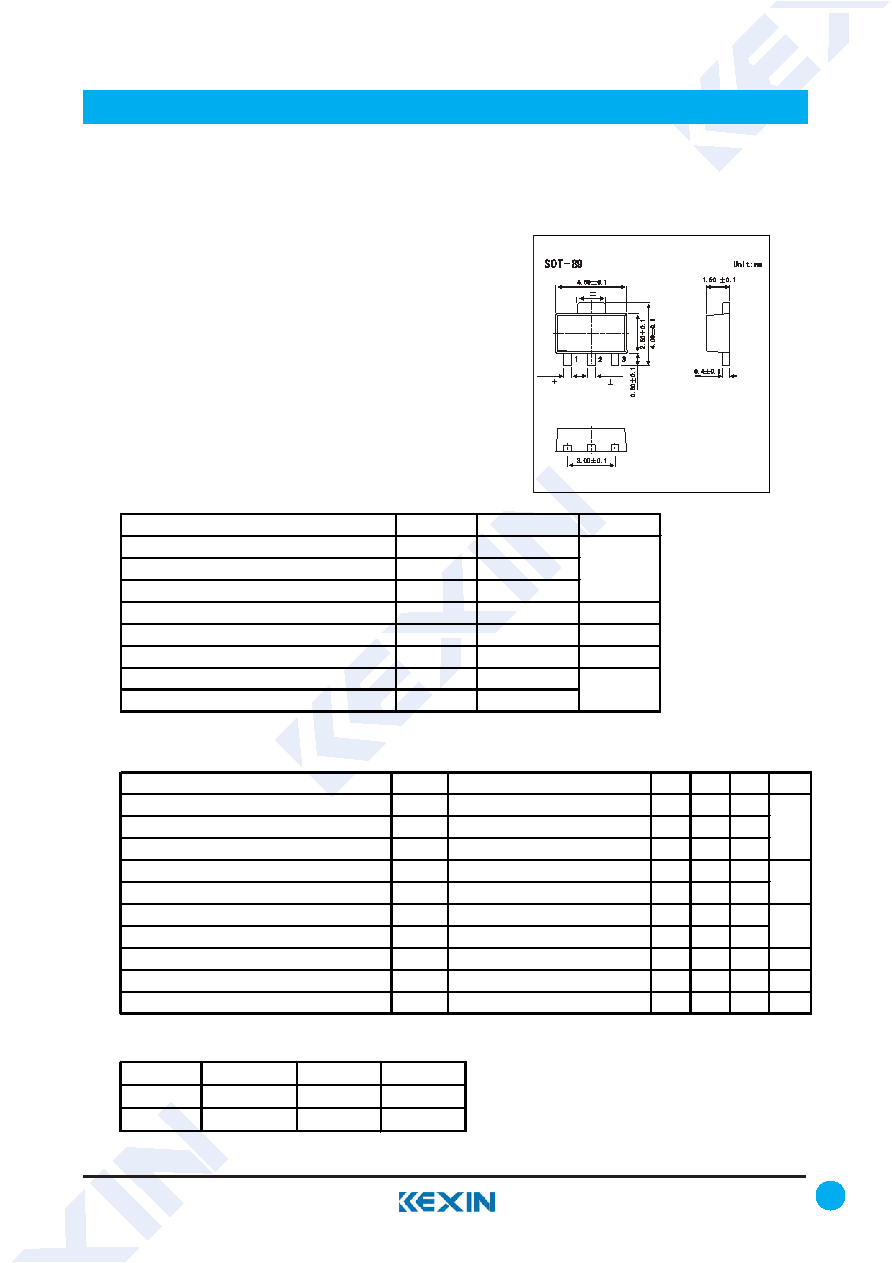

1 / 2 page

SMD Type

www.kexin.com.cn

1

Transistors

NPN Transistors

2SC4672

■

Features

●

Low Saturation Voltage

●

Excellent hFE Characteristics

●

Complementary to 2SA1797

1.Base

2.Collector

3.Emitter

1.70 0.1

0.42 0.1

0.46 0.1

■

Absolute Maximum Ratings Ta = 25℃

Parameter

Symbol

Rating

Unit

Collector - Base Voltage

VCBO

60

Collector - Emitter Voltage

VCEO

50

Emitter - Base Voltage

VEBO

6

Collector Current - Continuous

IC

2

A

Collector Power Dissipation

PC

500

mW

Thermal Resistance From Junction To Ambient

RθJA

250

℃

/W

Junction Temperature

TJ

150

Storage Temperature Range

Tstg

-55 to 150

V

℃

■

Electrical Characteristics Ta = 25℃

Parameter

Symbol

Test Conditions

Min

Typ

Max

Unit

Collector- base breakdown voltage

VCBO

Ic= 50 μA， IE= 0

60

Collector- emitter breakdown voltage

VCEO

Ic= 1 mA， IB= 0

50

Emitter - base breakdown voltage

VEBO

IE= 50μA， IC= 0

6

Collector-base cut-off current

ICBO

VCB= 60V , IE= 0

0.1

Emitter cut-off current

IEBO

VEB= 5V , IC=0

0.1

Collector-emitter saturation voltage

VCE(sat) IC=1A, IB=50mA

0.35

Base - emitter saturation voltage

VBE(sat) IC=1A, IB=50mA

1.2

DC current gain

hFE

VCE= 2V, IC= 500mA

82

390

Collector output capacitance

Cob

VCB= 10V, IE= 0,f=1MHz

25

pF

Transition frequency

fT

VCE= 2V, IC= 500mA,f=100MHz

210

MHz

V

uA

V

■

Classification of hfe

Type

2SC4672-P

2SC4672-Q

2SC4672-R

Range

82-180

120-270

180-390

Marking

DKP

DKQ

DKR
