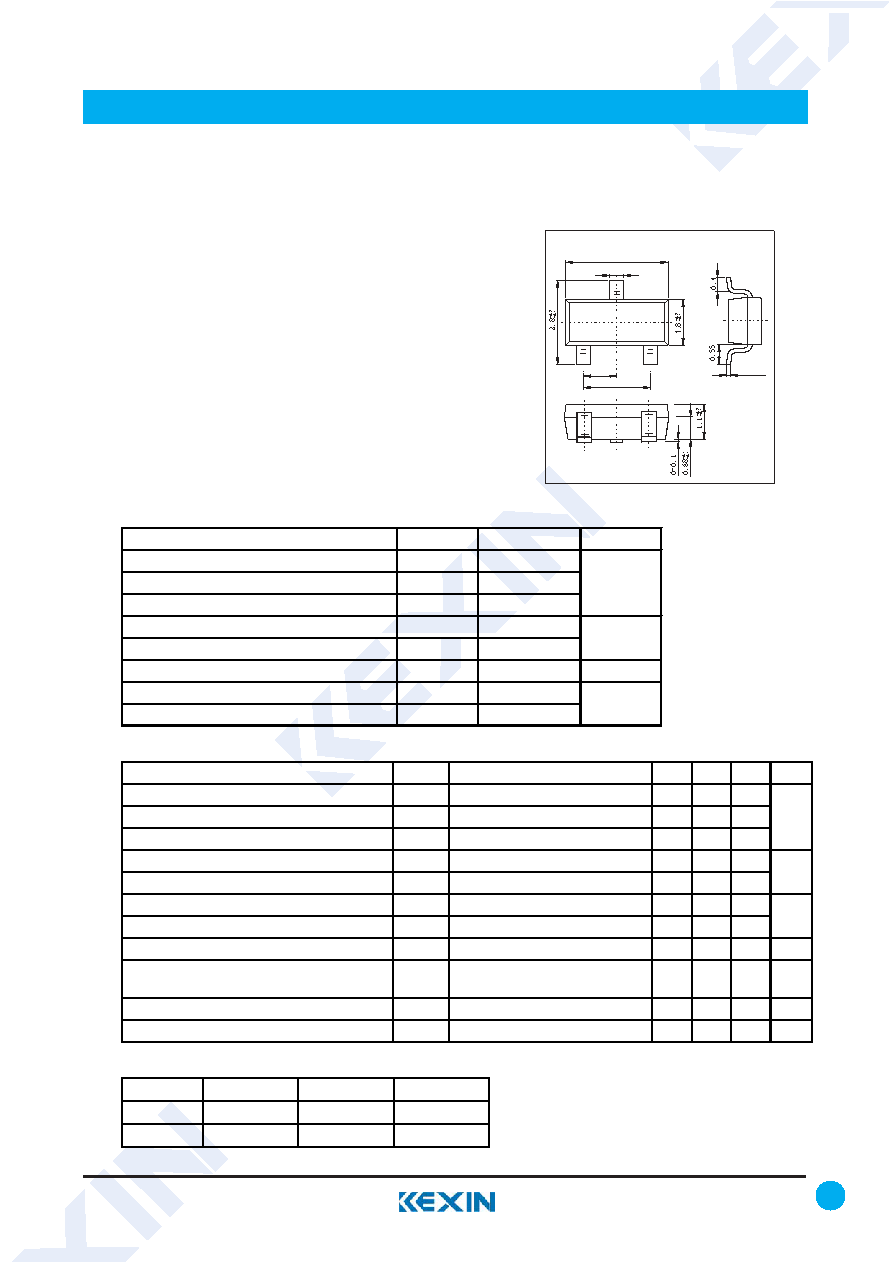

SMD Type

www.kexin.com.cn

1

Transistors

NPN Transistors

2SD814

■

Features

●

High collector to emitter voltage VCEO.

●

Low noise voltage NV..

●

Complimentary to 2SB792

■

Absolute Maximum Ratings Ta = 25℃

Parameter

Symbol

Rating

Unit

Collector - Base Voltage

VCBO

150

Collector - Emitter Voltage

VCEO

150

Emitter - Base Voltage

VEBO

5

Collector Current - Continuous

IC

50

Collector Current - Pulse

Icp

100

Collector Power Dissipation

PC

200

mW

Junction Temperature

TJ

150

Storage Temperature Range

Tstg

-55 to 150

V

℃

mA

■

Electrical Characteristics Ta = 25℃

Parameter

Symbol

Test Conditions

Min

Typ

Max

Unit

Collector- base breakdown voltage

VCBO

Ic= 100 μA， IE= 0

150

Collector- emitter breakdown voltage

VCEO

Ic= 1 mA， IB= 0

150

Emitter - base breakdown voltage

VEBO

IE= 100μA， IC= 0

5

Collector-base cut-off current

ICBO

VCB= 100 V , IE= 0

100

Emitter cut-off current

IEBO

VEB= 4V , IC=0

100

Collector-emitter saturation voltage

VCE(sat) IC=30 mA, IB=3mA

1

Base - emitter saturation voltage

VBE(sat) IC=30 mA, IB=3mA

1.2

DC current gain

hFE

VCE= 5V, IC= 10mA

90

330

Noise voltage

NV

VCE = 10V, IC = 1mA, GV = 80dB

Rg = 100kW, Function = FLAT

150

mV

Collector output capacitance

Cob

VCB= 10V, IE= 0,f=1MHz

2.3

pF

Transition frequency

fT

VCE= 10V, IE= -10mA,f=200MHz

150

MHz

V

nA

V

■

Classification of hfe

Type

2SD814-Q

2SD814-R

2SD814-S

Range

90-155

130-220

185-330

Marking

PQ

PR

PS

0.4 +0.1

-0.1

2.9 +0.2

-0.1

0.95 +0.1

-0.1

1.9 +0.1

-0.2

1

2

3

Unit: mm

SOT-23-3

1. Base

2. Emitter

3. Collector

0.15 +0.02

-0.02
