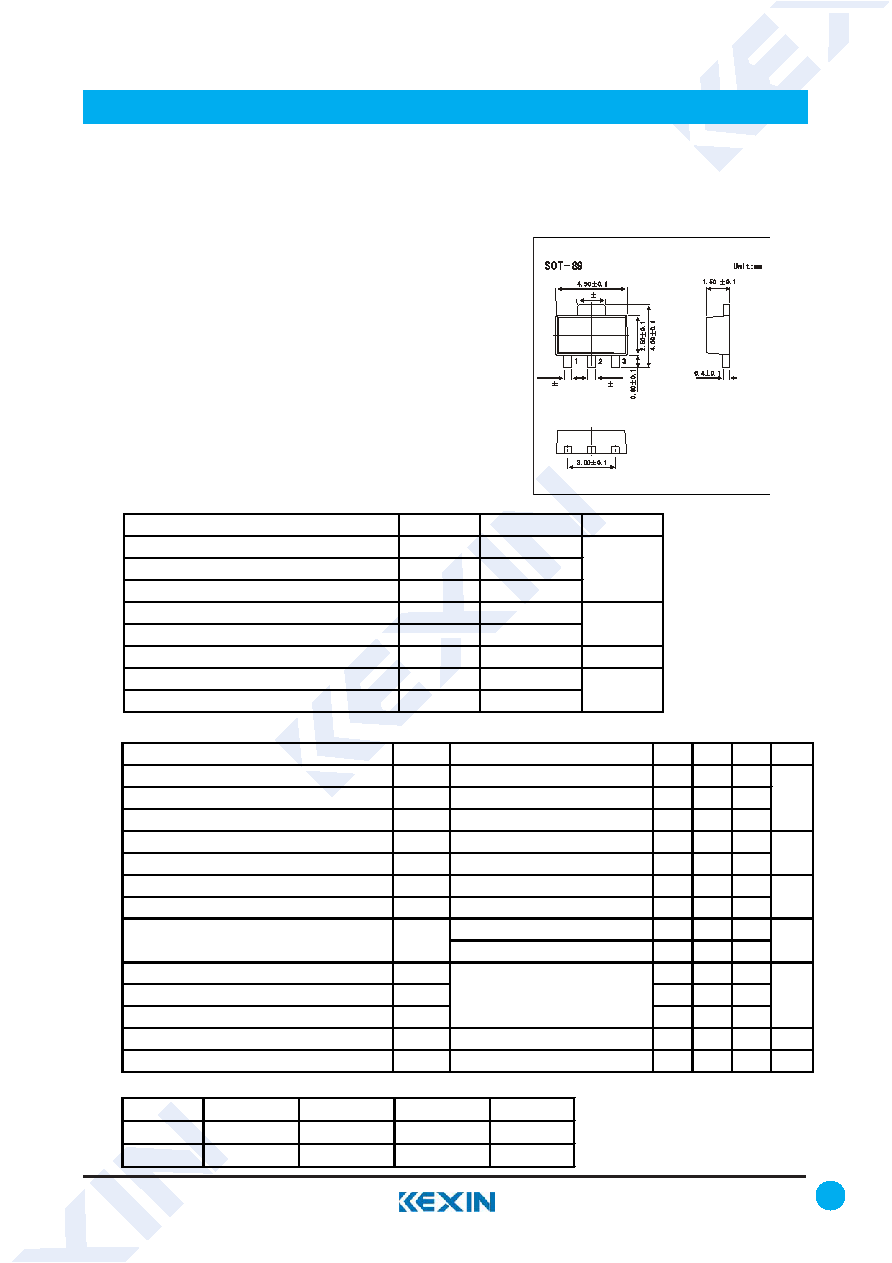

SMD Type

www.kexin.com.cn

1

Transistors

NPN Transistors

2SD1621

■

Features

●

Low collector-to-emitter saturation voltage.

●

Large current capacity and wide ASO.

●

Fast switching speed.

●

Complementary transistor with the 2SB1121

1.Base

2.Collector

3.Emitter

1.70 0.1

0.42 0.1

0.46 0.1

■

Absolute Maximum Ratings Ta = 25℃

Parameter

Symbol

Rating

Unit

Collector - Base Voltage

VCBO

30

Collector - Emitter Voltage

VCEO

25

Emitter - Base Voltage

VEBO

6

Collector Current - Continuous

IC

2

Collector current -pulse

ICP

5

Collector Power Dissipation

PC

500

mW

Junction Temperature

TJ

150

Storage Temperature Range

Tstg

-55 to 150

V

℃

A

■

Electrical Characteristics Ta = 25℃

Parameter

Symbol

Test Conditions

Min

Typ

Max

Unit

Collector- base breakdown voltage

VCBO

Ic= 100 μA， IE= 0

30

Collector- emitter breakdown voltage

VCEO

Ic= 1 mA， RBE= ∞

25

Emitter - base breakdown voltage

VEBO

IE= 100μA， IC= 0

6

Collector-base cut-off current

ICBO

VCB= 20V , IE= 0

0.1

Emitter cut-off current

IEBO

VEB= 4V , IC=0

0.1

Collector-emitter saturation voltage

VCE(sat) IC=1.5A, IB=75mA

0.18

0.4

Base - emitter saturation voltage

VBE(sat) IC=1.5A, IB=75mA

0.85

1.2

VCE= 2V, IC= 100mA

100

560

VCE= 2V, IC= 1.5A

65

Turn-on time

ton

60

Storage time

tstg

500

Turn-off time

toff

25

Collector output capacitance

Cob

VCB= 10V, IE= 0,f=1MHz

19

pF

Transition frequency

fT

VCE= 10V, IC= 50mA

150

MHz

V

uA

V

See specified Test Circuit.

ns

DC current gain

hFE

■

Classification of hfe(1)

Type

2SD1621-R

2SD1621-S

2SD1621-T

2SD1621-U

Range

100-200

140-280

200-400

280-560

Marking

DDR

DDS

DDT

DDU
