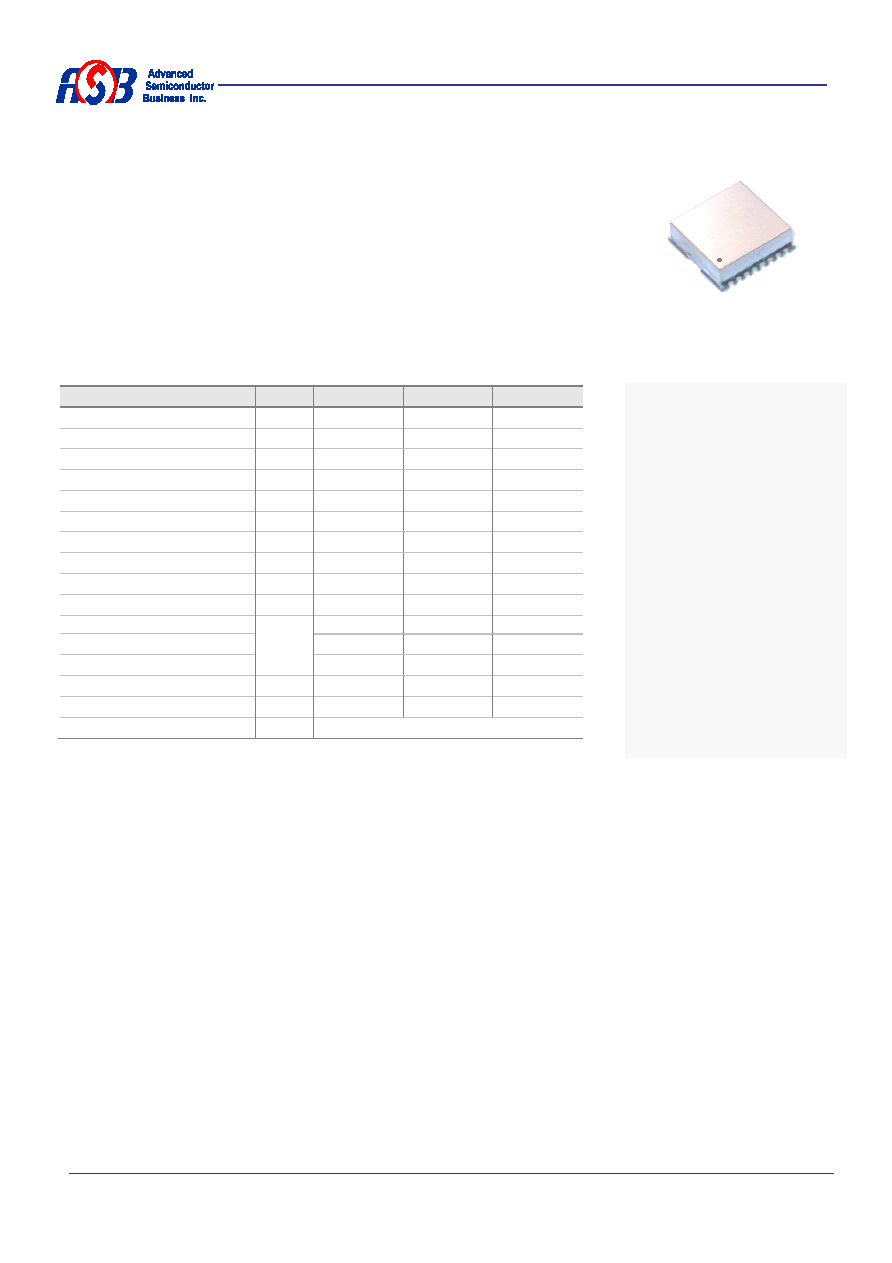

plerowTM APL0450-R

PLL Synthesizer Module

Parameter

Unit

Min.

Typical

Max.

Frequency Range

MHz

450

Output Power

dBm

3

5

7

Supply Voltage

V

4.75

5

5.25

Current Consumption

mA

25

35

Channel Step Size

kHz

250

2

nd Harmonics

dBc

-25.0

-20.0

Spurious Level

dBc

-75

-70

Reference Frequency

MHz

10

Reference Input Level

dBm

0

2

5

Phase Noise (C / N)

@ 1 kHz

dBc/Hz

-77

-70

@ 10 kHz

-105

-100

@ 100 kHz

-120

-115

Output Impedance

Ω

50

Operating Temp. Range

°C

-40

25

80

Package Type & Size

mm

SMT, 19.0W

×19.0L×5.8H

1) Measurement conditions are as follows: T = 25

°C, VCC = 5 V, Freq. = 450 MHz, 50 ohm system.

Features

Specifications

·

5 dBm Output Level at 450 MHz

·

Channel Step Size: 250 kHz

·

2

nd Harmonic: < -20 dBc

·

Spurious Level: < -70 dBc

·

Current Consumption: < 35 mA

Description

The plerow

TM PLL synthesizer module was

designed for use in wireless and wireline

systems in a wide range of frequency from

50 MHz to 6 GHz. ASB’s PLL provides ex-

ceptionally low spurious and phase noise

performance with fast locking time and low

current consumption. All products are avail-

able in a surface-mount type package.

More Information

Website: www.asb.co.kr

E-mail: sales@asb.co.kr

Tel: (82) 42-528-7223

Fax: (82) 42-528-7222

ASB Inc., 4th Fl. Venture Town

Bldg., 367-17 Goijeong-Dong,

Seo-Gu, Daejon 302-716, Korea
