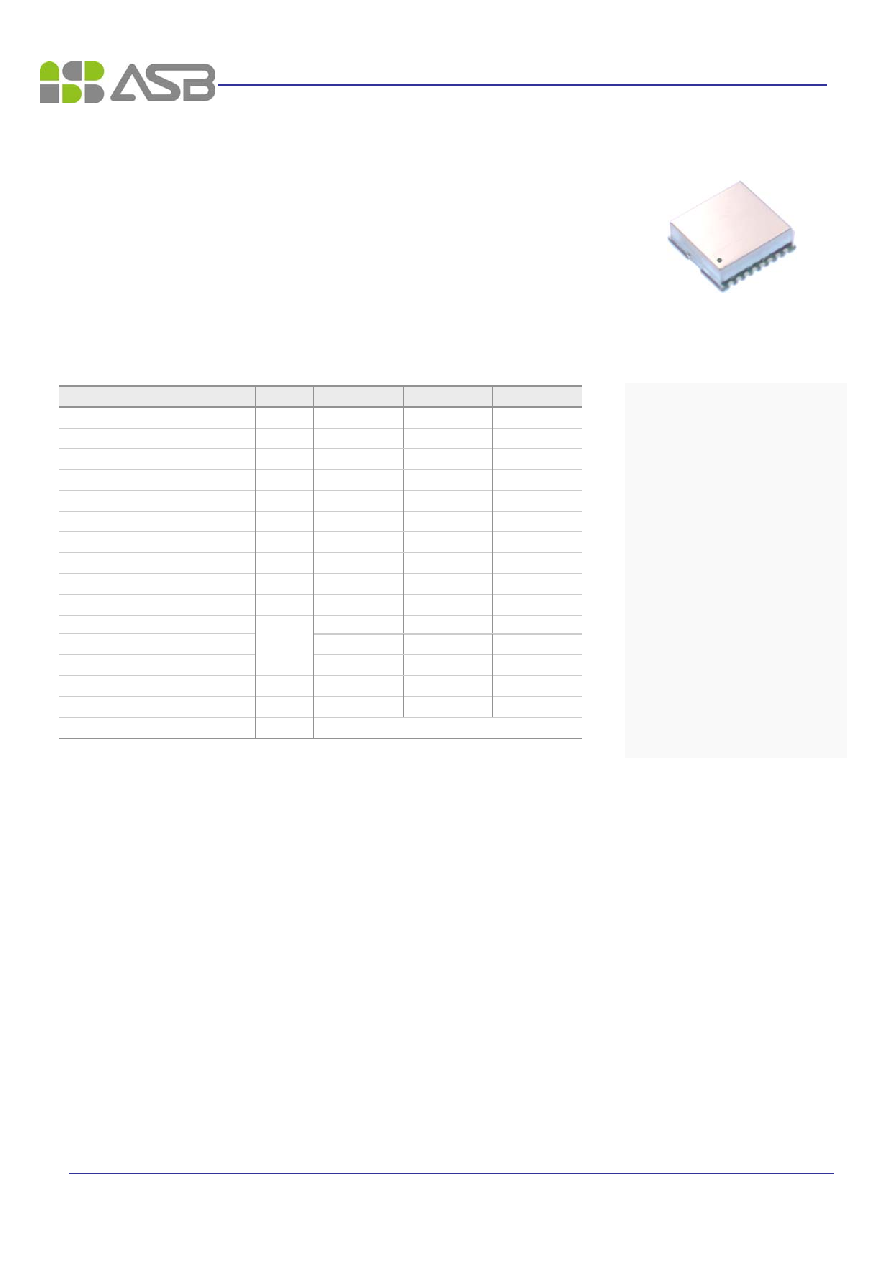

plerow

TM APL1515-R

PLL Synthesizer Module

Parameter

Unit

Min.

Typical

Max.

Frequency Range

MHz

1515.42

Output Power

dBm

-1

0

1

Supply Voltage

V

4.7

5

5.3

Current Consumption

mA

25

40

2

nd Harmonics

dBc

500

Spurious Level

dBc

-25

-30

Lock Time

ms

-75

Reference Frequency

MHz

3

5

Reference Input Level

dBm

10

Phase Noise (C / N)

1

3

5

@ 10 kHz

-103

-108

@ 100 kHz

-115

-120

@ 1 MHz

dBc/Hz

-125

-130

Output Impedance



50

Operating Temp. Range

C

-40

25

80

Package Type & Size

mm

SMT, 19.0W

19.0L5.8H

1) Measurement conditions are as follows: T = 25

C, V

CC = 5 V, Freq. = 1515.42 MHz, 50 ohm system.

Features

Specifications

· 0 dBm Output Level at 1515.42 MHz

· Channel Step Size : 500 kHz

· 2

nd Harmonic: < -30 dBc

· Spurious Level: < -75 dBc

· Lock Time : < 5 ms

· 40 mA Current Consumption

Description

The plerow

TM PLL synthesizer module was

designed for use in wireless and wireline

systems in a wide range of frequency from

50 MHz to 6 GHz. ASB’s PLL provides ex-

ceptionally low spurious and phase noise

performance with fast locking time and low

current consumption. All products are avail-

able in a surface-mount type package.

More Information

Website: www.asb.co.kr

E-mail: sales@asb.co.kr

Tel: (82) 42-528-7220

Fax: (82) 42-528-7222

ASB Inc., 4th Fl. Venture Town

Bldg., 367-17 Goijeong-Dong,

Seo-Gu, Daejeon 302-716, Ko-

rea
