LS4448LOG 数据表(PDF) 2 Page - Taiwan Semiconductor Company, Ltd

部件名 LS4448LOG
功能描述  500mW High Speed SMD Switching Diode
PDF  4 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  TSC [Taiwan Semiconductor Company, Ltd]
网页  http://www.taiwansemi.com
标志 TSC - Taiwan Semiconductor Company, Ltd

LS4448LOG 数据表(HTML) 2 Page - Taiwan Semiconductor Company, Ltd

  LS4448LOG Datasheet HTML 1Page - Taiwan Semiconductor Company, Ltd LS4448LOG Datasheet HTML 2Page - Taiwan Semiconductor Company, Ltd LS4448LOG Datasheet HTML 3Page - Taiwan Semiconductor Company, Ltd LS4448LOG Datasheet HTML 4Page - Taiwan Semiconductor Company, Ltd
Zoom Inzoom in Zoom Outzoom out
 2 / 4 page
background image
Small Signal Product
CREAT BY ART
(TA=25°C unless otherwise noted)
Document Number: DS_S1501008
Version: E15
LS4148/LS4448/LS914B
Taiwan Semiconductor

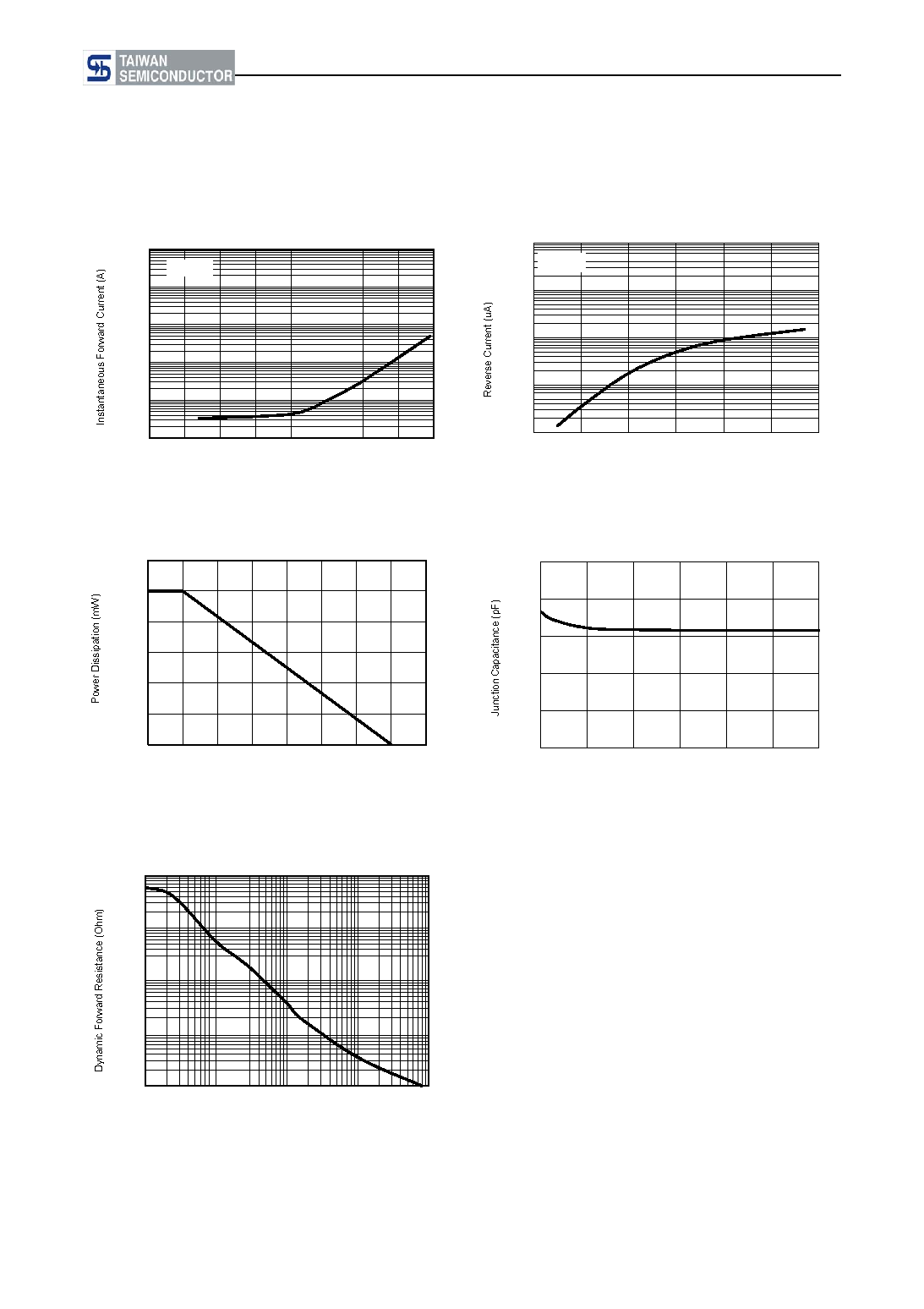

RATINGS AND CHARACTERISTICS CURVES
0.01
0.1
1
10
100
0
20
40
60
80
100
120
Reverse Voltage (V)
Fig. 2 Reverse Current VS. Reverse Voltage
TA=25oC
0.0
0.3
0.6
0.9
1.2
1.5
0
5
10
15
20
25
30
Reverse Voltage (V)
Fig. 4 Typical Junction Capacitance
1
10
100
1000
10000
0.01
0.1
1
10
100
Forward Current (mA)
Fig. 5 Forward Resistance VS. Forward Current
0
100
200
300
400
500
600
0
25
50
75
100
125
150
175
200
Ambient Temperature (oC)
Fig. 3 Admissible Power Dissipation Curve
0.001
0.01
0.1
1
10
100
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
Instantaneous Forward Voltage (V)
Fig. 1 Typical Forward Characteristics
TA=25oC
