2SC5658-R 数据表(PDF) 3 Page - Taiwan Semiconductor Company, Ltd

部件名 2SC5658-R
功能描述  NPN Transistor
PDF  3 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  TSC [Taiwan Semiconductor Company, Ltd]
网页  http://www.taiwansemi.com
标志 TSC - Taiwan Semiconductor Company, Ltd

2SC5658-R 数据表(HTML) 3 Page - Taiwan Semiconductor Company, Ltd

  2SC5658-R Datasheet HTML 1Page - Taiwan Semiconductor Company, Ltd 2SC5658-R Datasheet HTML 2Page - Taiwan Semiconductor Company, Ltd 2SC5658-R Datasheet HTML 3Page - Taiwan Semiconductor Company, Ltd
Zoom Inzoom in Zoom Outzoom out
 3 / 3 page

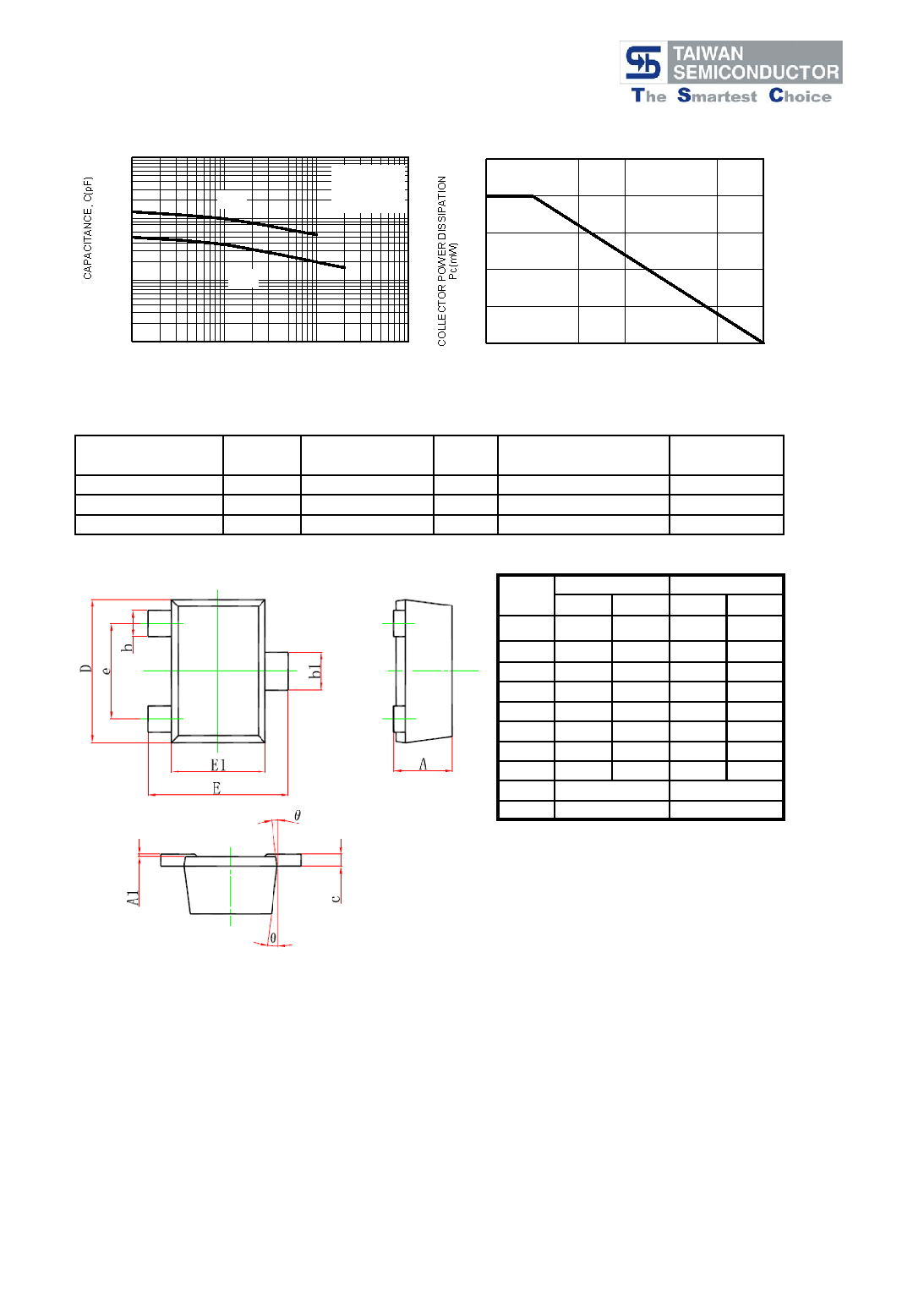

background image
SOT-723
RM
SOT-723
RM
SOT-723
RM
Dimensions
Min
Max
Min
Max
A
-
0.50
-
0.020
A1
0.00
0.05
0.000
0.002
b
0.17
0.27
0.007
0.011
b1
0.27
0.37
0.011
0.015
c
-
0.150
-
0.006
D
1.15
1.25
0.045
0.049
E
1.15
1.25
0.045
0.049
E1
0.75
0.85
0.030
0.033
e
θ
Version:A13
BQ
BR
BS
0.80
7° REF
7° REF
0.031
Ordering information
Part No.
Package
Packing
Packing
code
Packing code
(Green)
Marking
2SC5658-Q
8K / 7" Reel
RMG
2SC5658-R
8K / 7" Reel
RMG
2SC5658-S
8K / 7" Reel
RMG
DIM.
Unit(mm)
Unit(inch)
0.1
1
10
100
0.1
1
10
100
REVERSE VOLTAGE, V(V)
FIG. 7 Cob/Cib - VCB/VEB
f = 1MHz
IE=0, IC=0
TA=25℃
Cib
Cob
0
25
50
75
100
125
0
25
50
75
100
125
150
AMBIENT TEMPERATURE TA(℃)
FIG. 8 PC -TA
