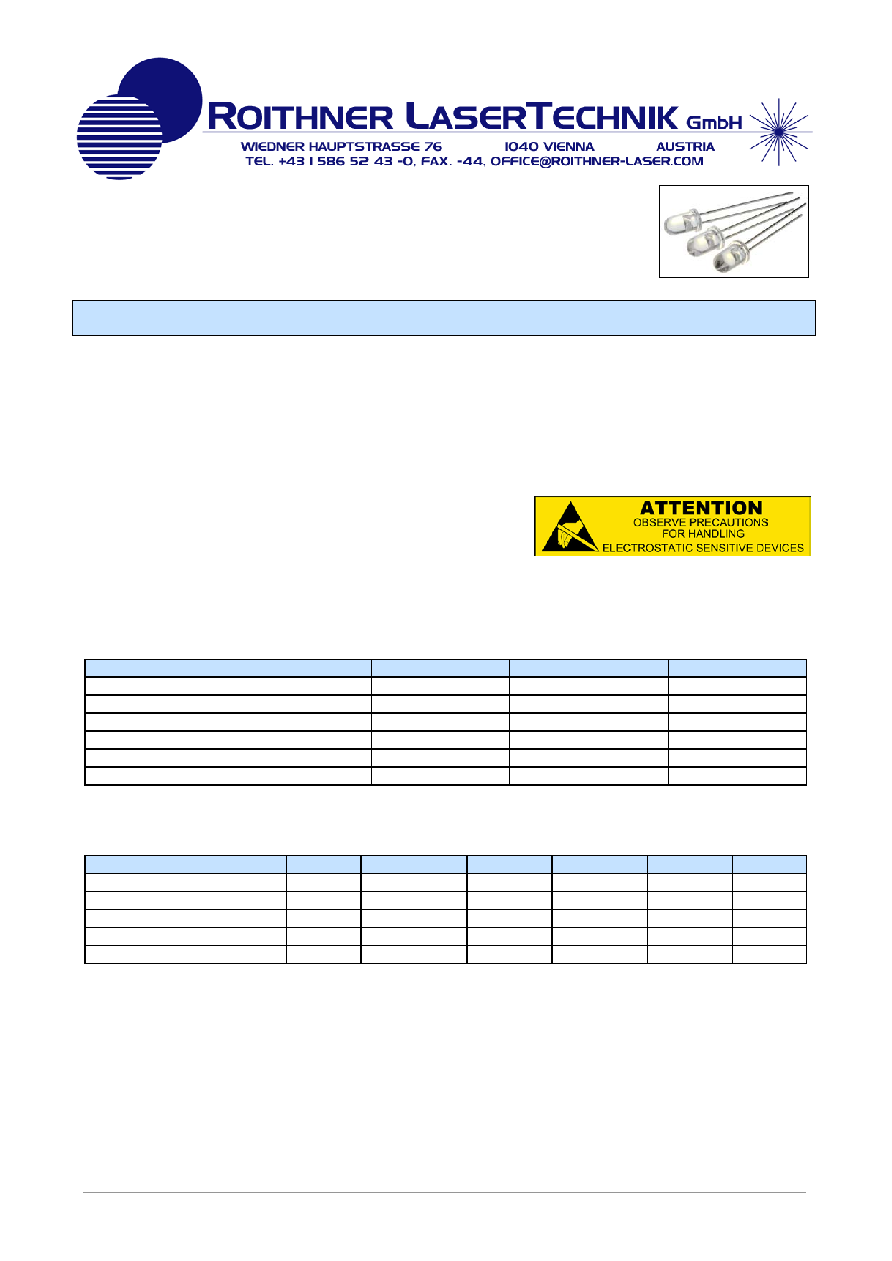

21.11.2011

LED545-series

1 of 8

LED545-series

TECHNICAL DATA

Visible LED

InGaN

LED545-series are InGaN LEDs mounted on a lead frame and encapsulated in various types of

epoxy lens, which offers different design settings.

On forward bias, it emits a high power radiation of typical 8.0 mW at a peak wavelength at

545 nm.

Specifications

• Structure: InGaN

• Peak Wavelength: typ. 545 nm

• Optical Ouput Power: typ. 8.0 mW

• Resin Material: Epoxy resin

• Solder: Lead free

Absolute Maximum Ratings (Ta=25°C)

Type

Symbol

Value

Unit

Power Dissipation

PD

200

mW

Forward Current

IF

50

mA

Reverse Voltage

VR

5

V

Operating Temperature

TOP

-30 … +85

°C

Storage Temperature

TSTG

-40 … +100

°C

Soldering Temperature (for 5 sec.)

TSOL

265

°C

Electro-Optical Characteristics (Ta=25°C)

Item

Symbol

Condition

Min.

Typ.

Max.

Unit

Forward Voltage

VF

IF = 20 mA

-

3.5

4.0

V

Reverse Current

IR

VR = 5 V

-

10

µA

Radiated Power

PO

IF = 20 mA

-

8.0

-

mW

Peak Wavelength

λ

P

IF = 20 mA

535

545

555

nm

Half Width

Δλ

IF = 20 mA

-

40

-

nm
