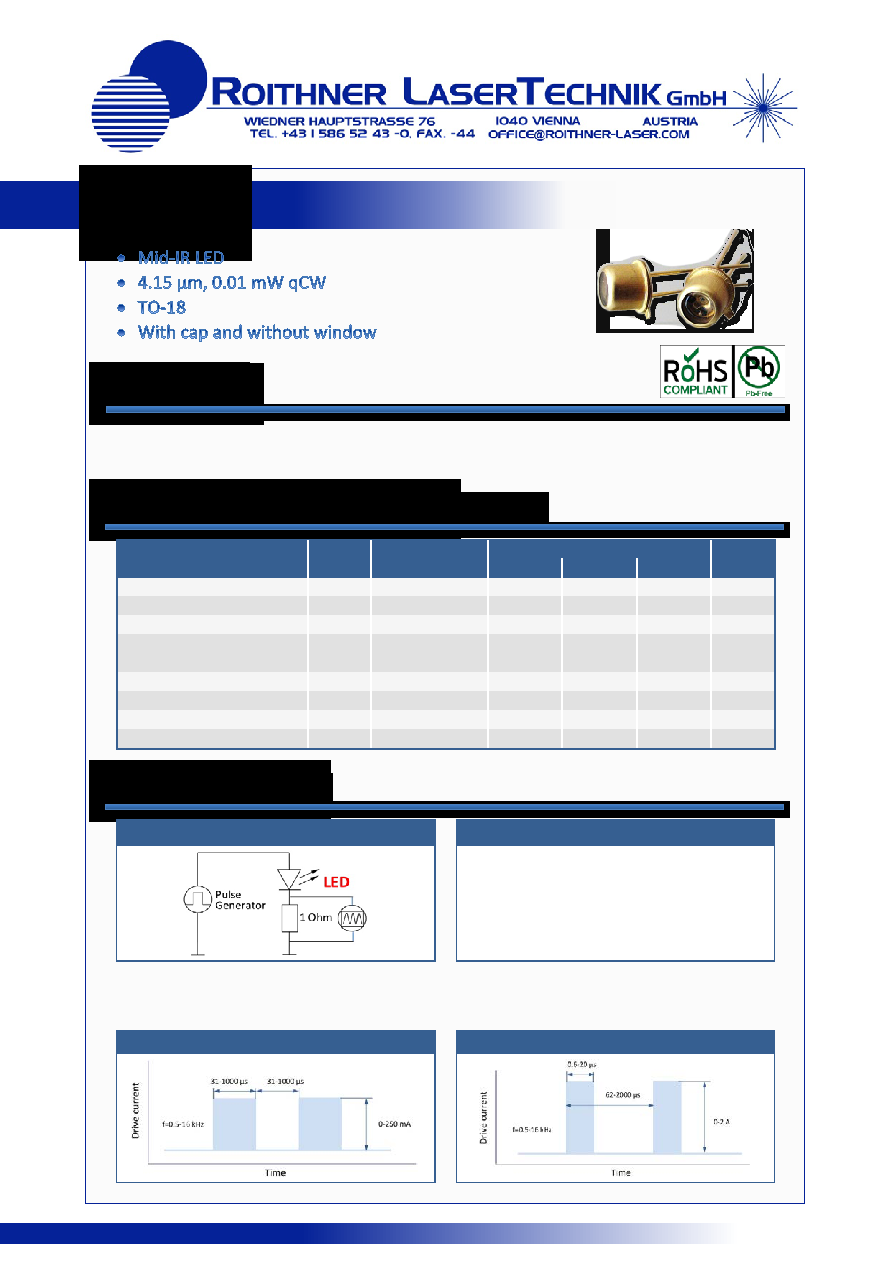

Z

LED43

Description

LED43 series are fabricated from narrow band-gap InAsSb/InAsSbP heterostructures lattice matched to InAs

substrate. This Mid-IR LED provides a typical peak wavelength of 4.15 µm and optical power of

typ. 0.01 mW qCW. It comes in TO-18 package a with a glass window.

Parameter

Symbol

Conditions

Values

Unit

Min.

Typ.

Max.

Peak Wavelength *

1

4.10

4.15

4.30

µm

Half Width (FWHM)

∆λ

700

850

1000

nm

Optical Output Power, qCW

0.08

0.01

0.012

mW

Optical Output Power, pulsed

duty cycle 0.1%

0.18

0.20

0.22

mW

Operating Voltage

0.2

-

0.8

V

Switching Time

10

20

30

ns

Operating Temperature

-200

-

+50

°C

Soldering Temperature

180

°C

Operating Regime

LED Basic Circuit Connection

Suitable Drivers And Evaluation Boards

•

D-31M

•

D-41

•

D-51

•

mD-1c

•

mD-1p

We recommend to use Quasi Continuous Wave (qCW) mode with duty cycle 50% or 25% to obtain

maximum average optical power, and short Pulse mode to obtain maximum peak power.

CW (continuous wave) mode is NOT recommended!

Quasi Continuous Wave (qCW) mode

Pulse Mode

v 2.0 24.11.2014
